Knock Sensor: Components: Illustration

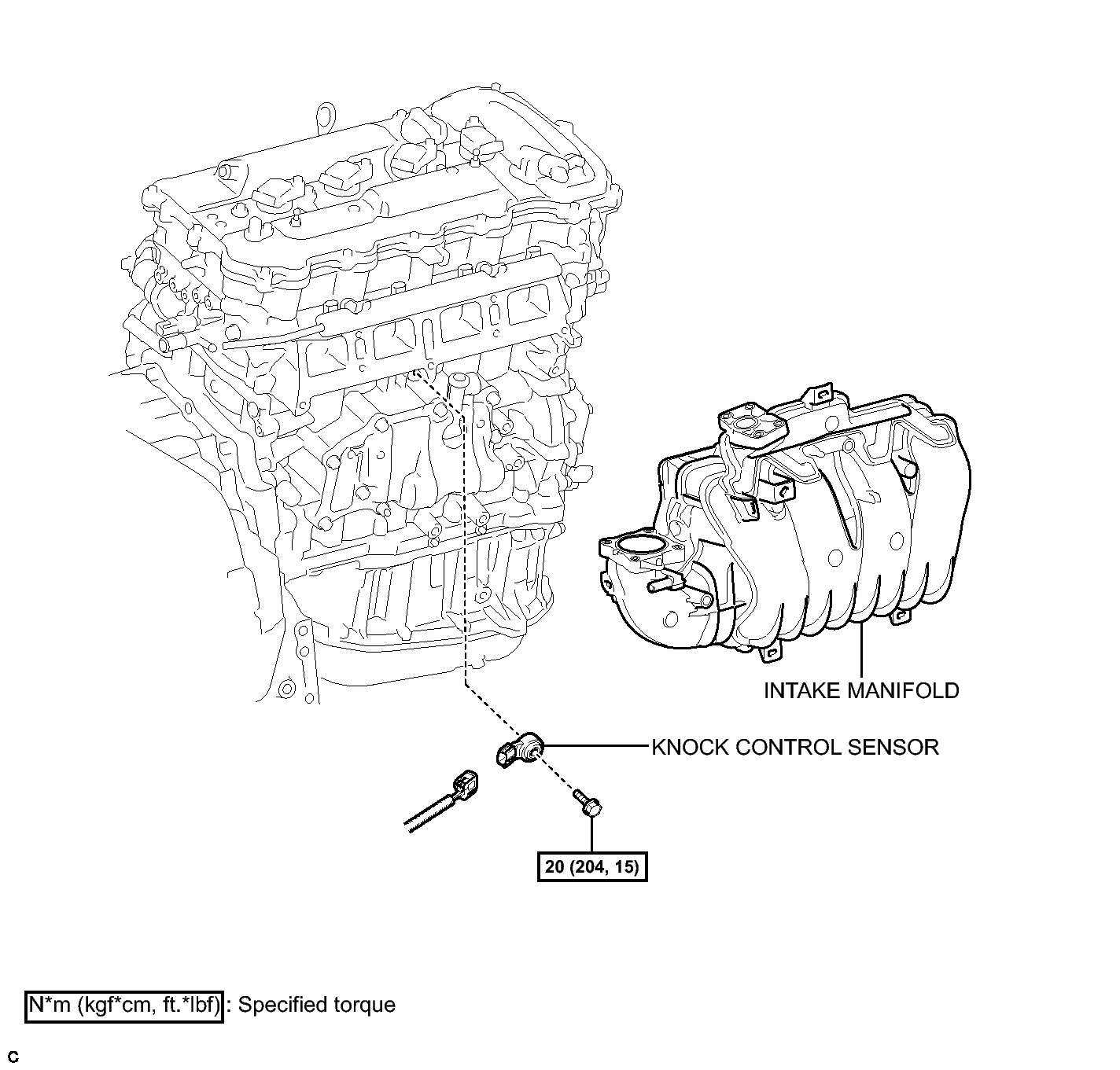

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications
GTY320176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
