System Diagram

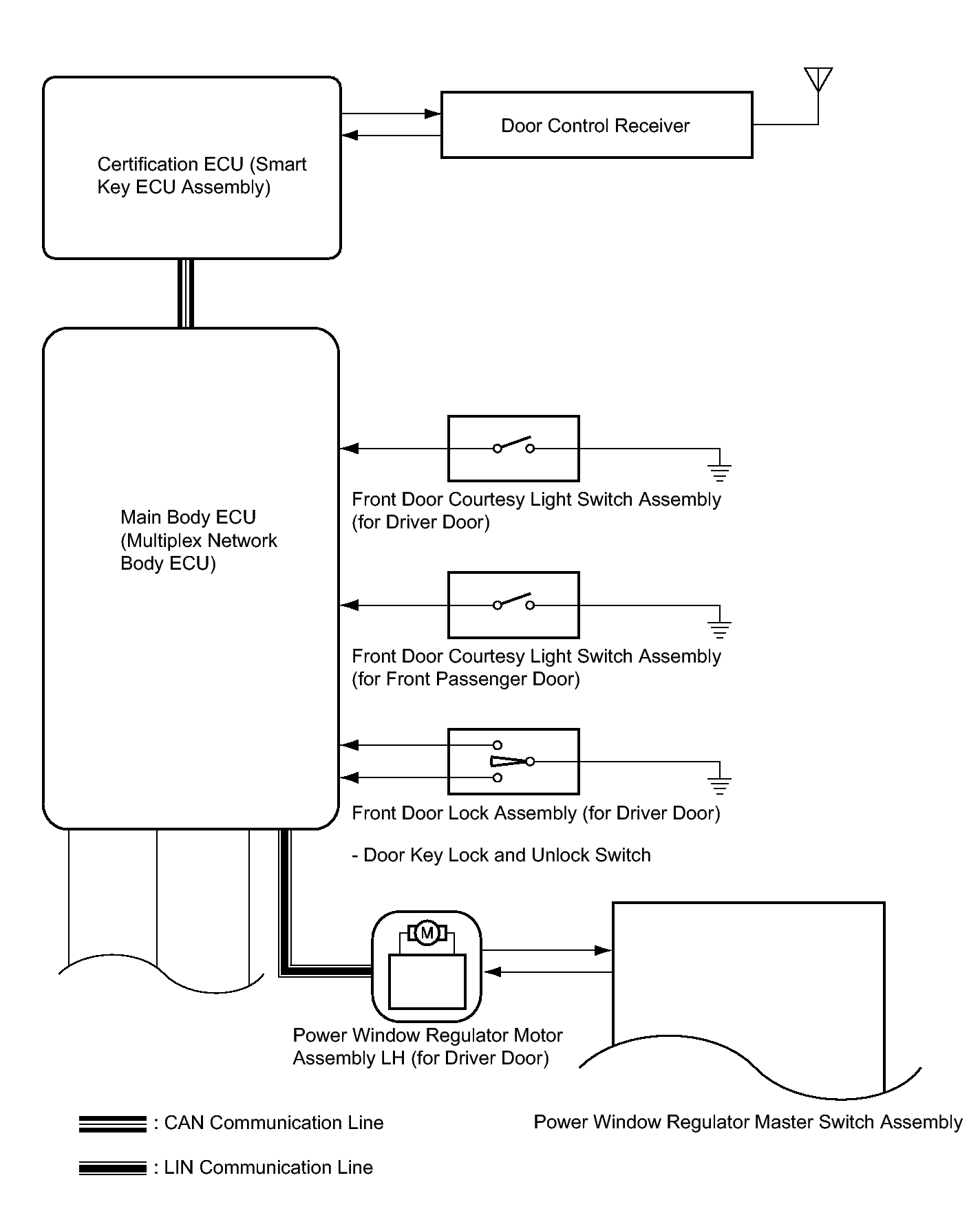

Fig 1: Power Window Control System Diagram (1 Of 2)
GTY317001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

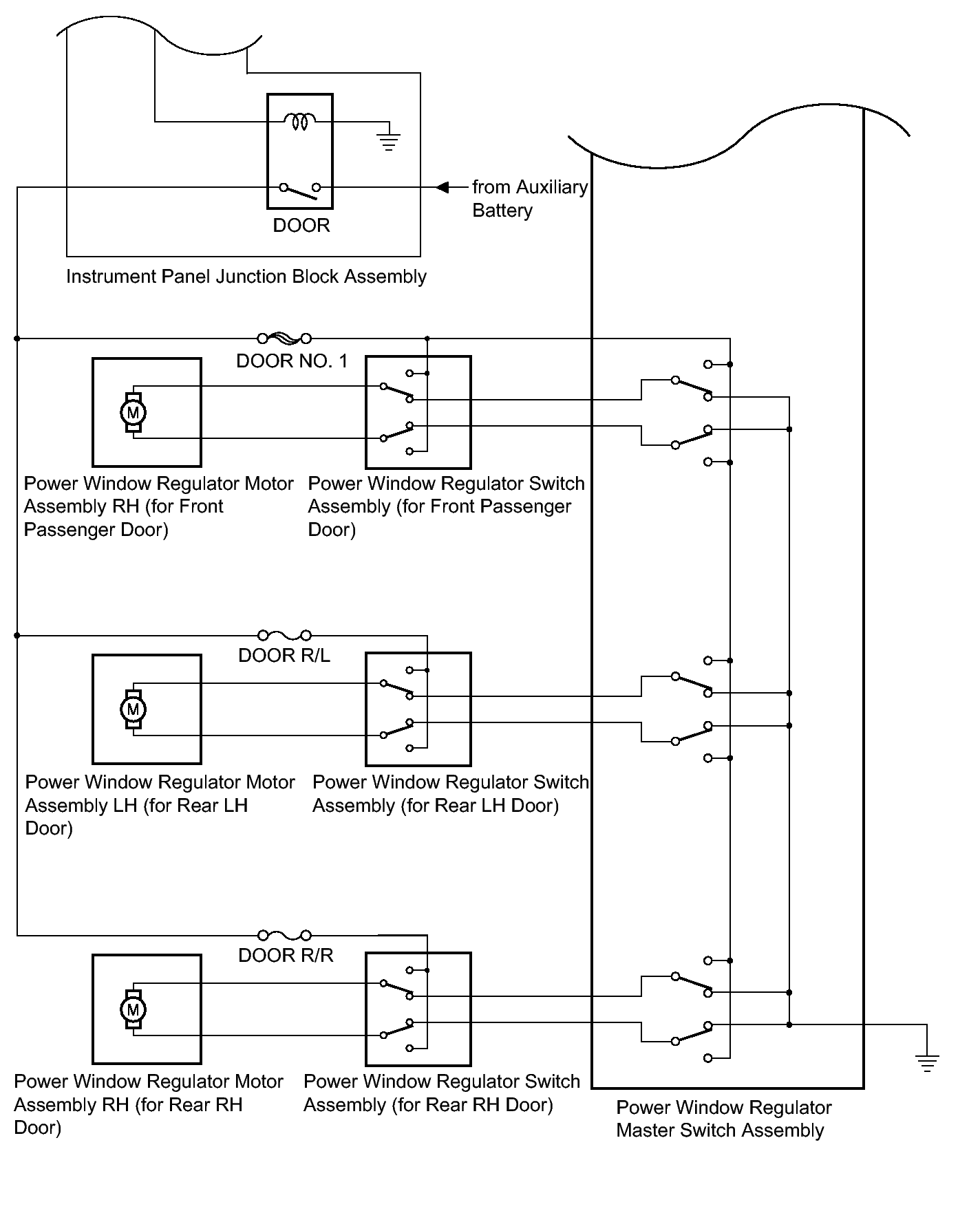

Fig 2: Power Window Control System Diagram (2 Of 2)
GTY320288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU Receiving ECU Signal Communication Method
Main body ECU (Multiplex Network Body ECU) Power window regulator motor assembly LH (for driver Door)
  • Power window operation permission signal
  • Key-linked power window up and down signal
  • Wireless power window down signal*1
 LIN
Certification ECU (Smart Key ECU Assembly) Main body ECU (Multiplex Network Body ECU)
  • Wireless power window down signal*1
 CAN
