Crankshaft Position Sensor: Testing and Inspection

2GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSPECTION

1. INSPECT CRANKSHAFT POSITION SENSOR

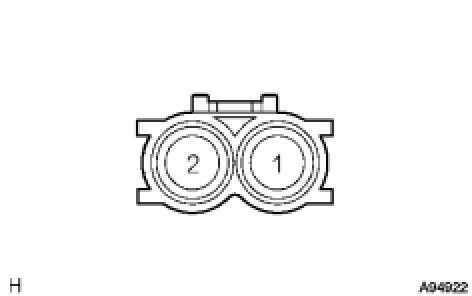

(a) Using an ohmmeter, measure the resistance between the terminals.





Resistance:

1,630 to 2,740 Ohms at cold

2,065 to 3,225 Ohms at hot
