Remote Control Mirror (w/o Driving Position Memory): Notes

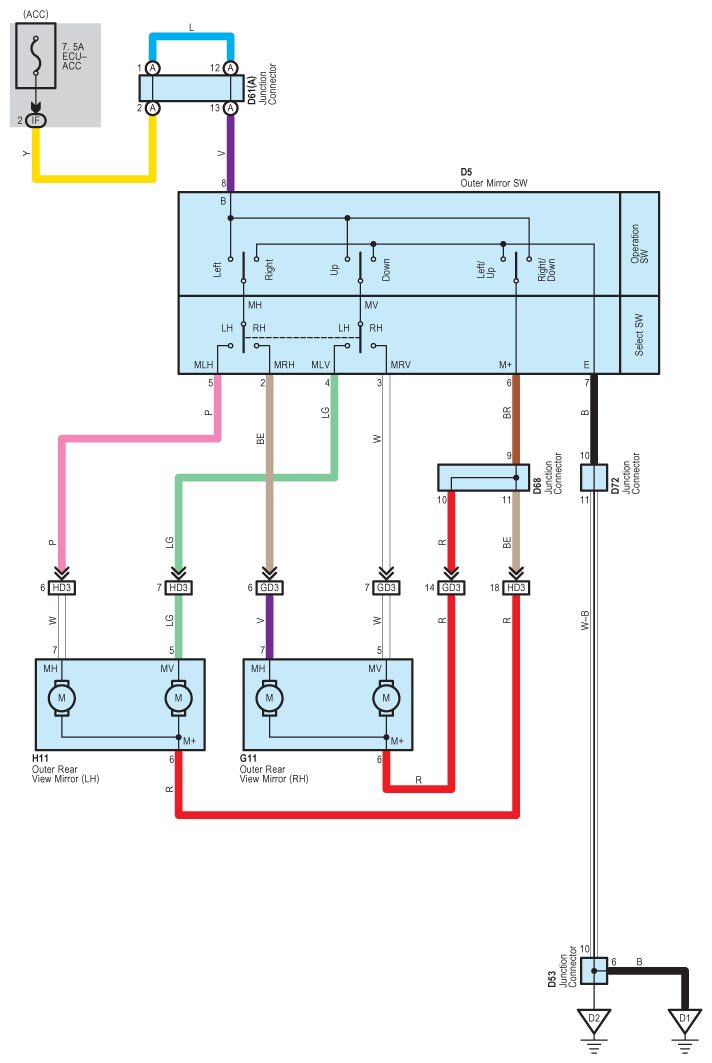

Fig 1: Remote Control Mirror (w/o Driving Position Memory) System Wiring Diagram
G08797491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
