Parking Assist (Rear View Monitor w/o Navigation System): Notes

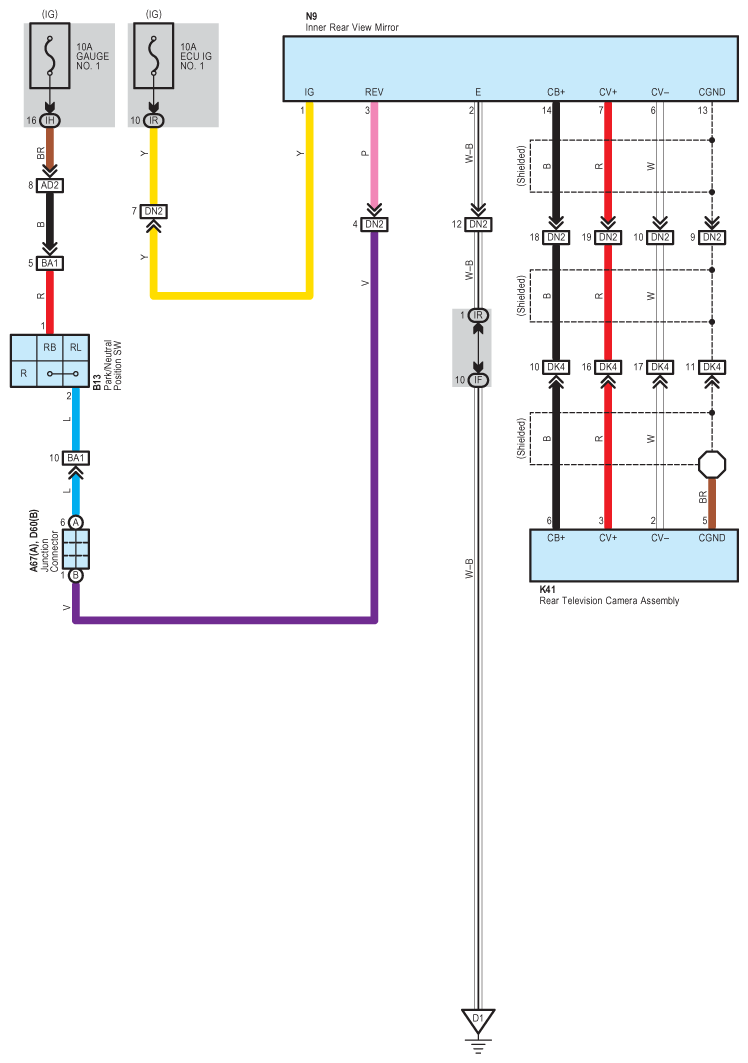

Fig 1: Parking Assist (Rear View Monitor W/O Navigation System) System Wiring Diagram
G08797499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
