System Diagram

Fig 1: Identifying SFI System Diagram
GTY219160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying SFI System Diagram
GTY213991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

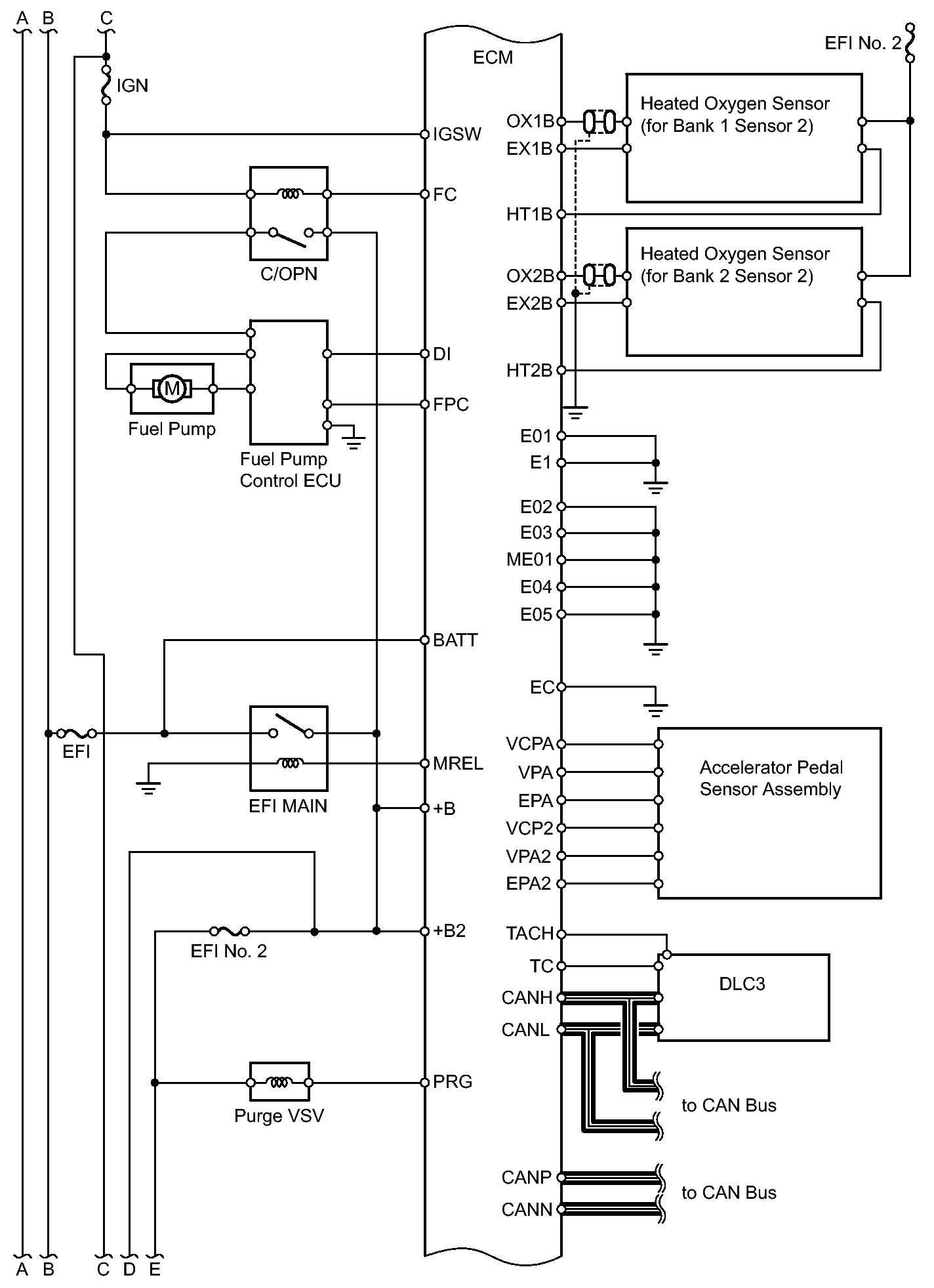

Fig 3: Identifying SFI System Diagram
GTY234535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

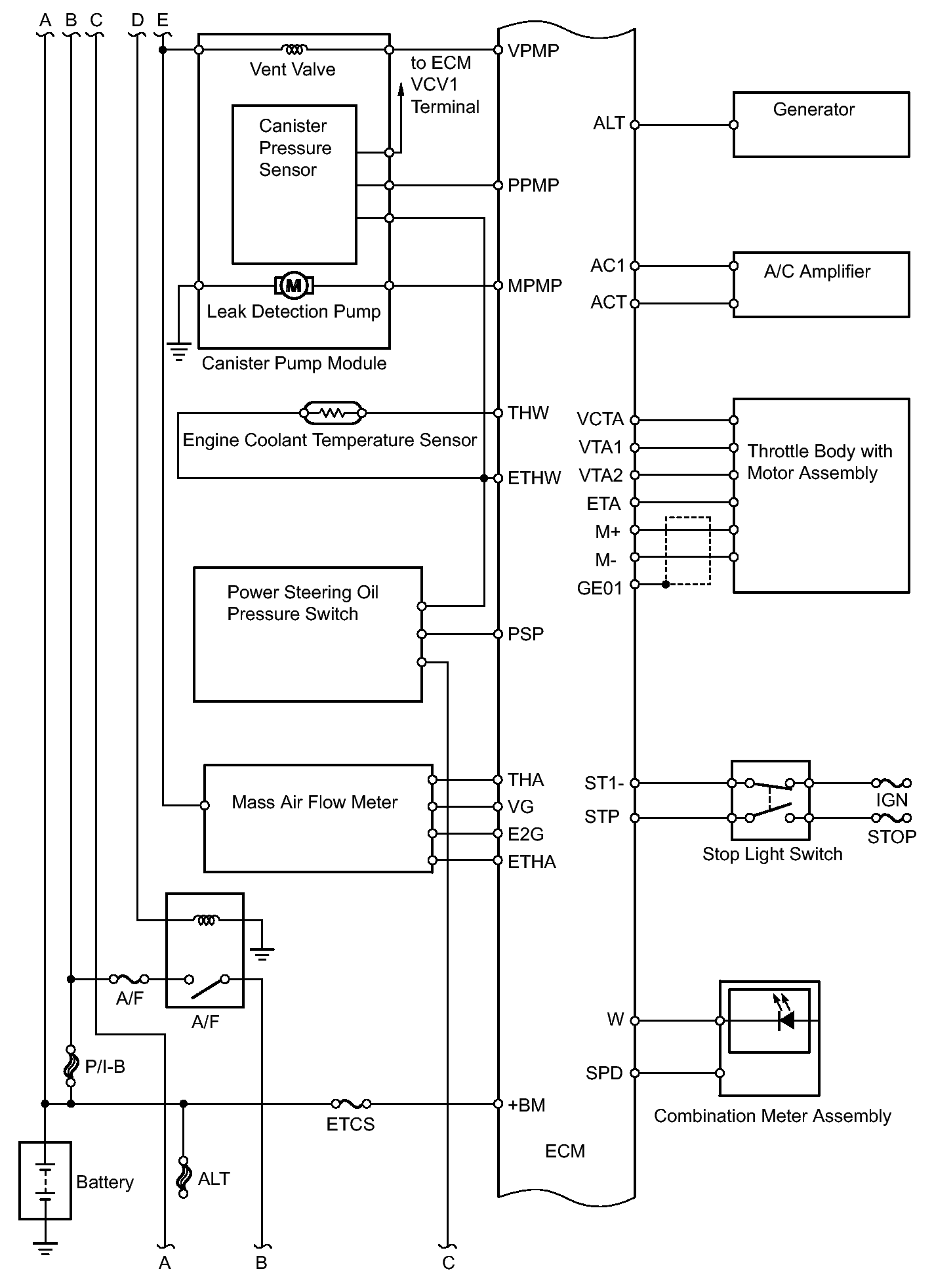

Fig 4: Identifying SFI System Diagram
GTY229484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

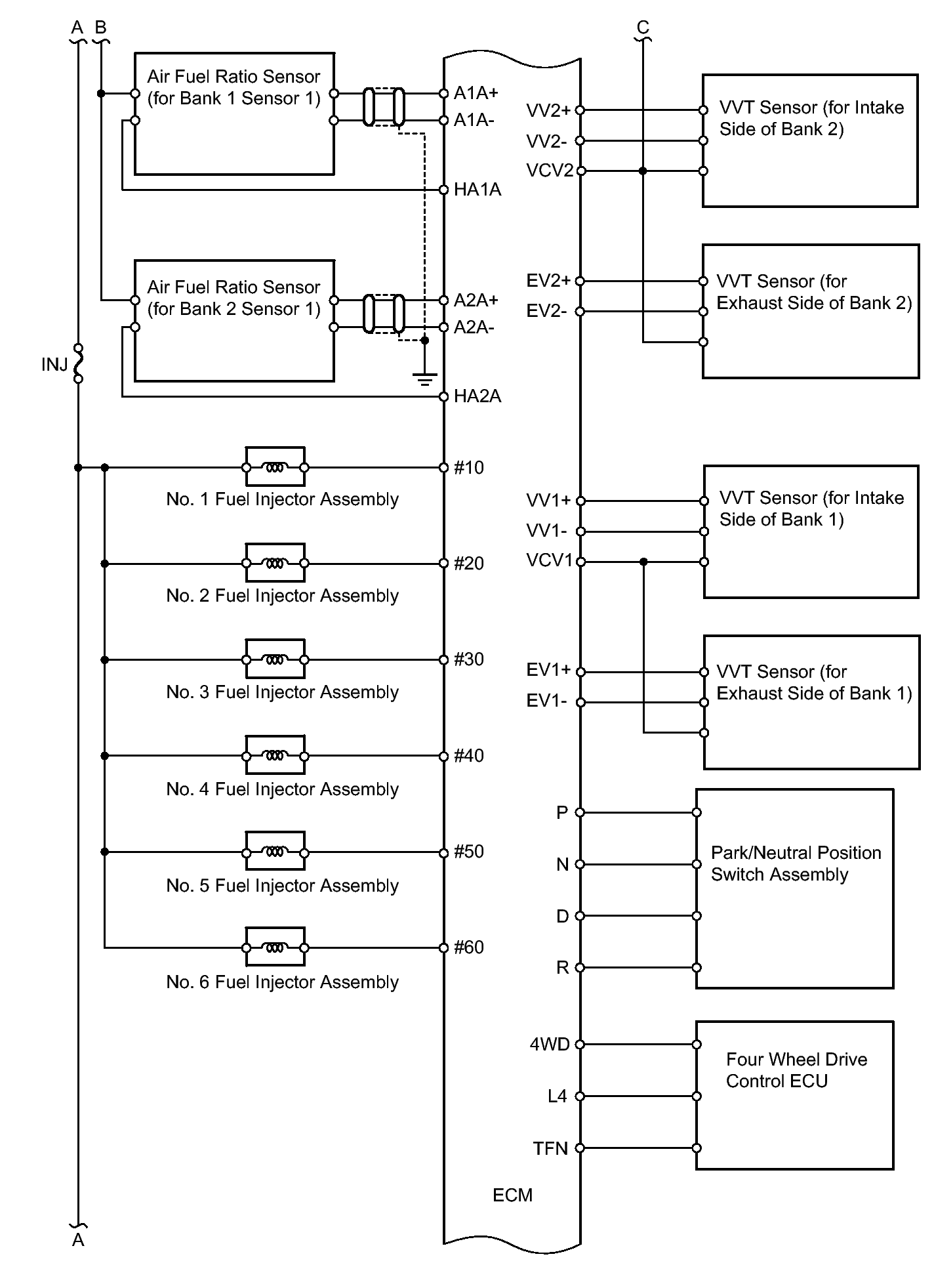

Fig 5: Identifying SFI System Diagram
GTY232465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

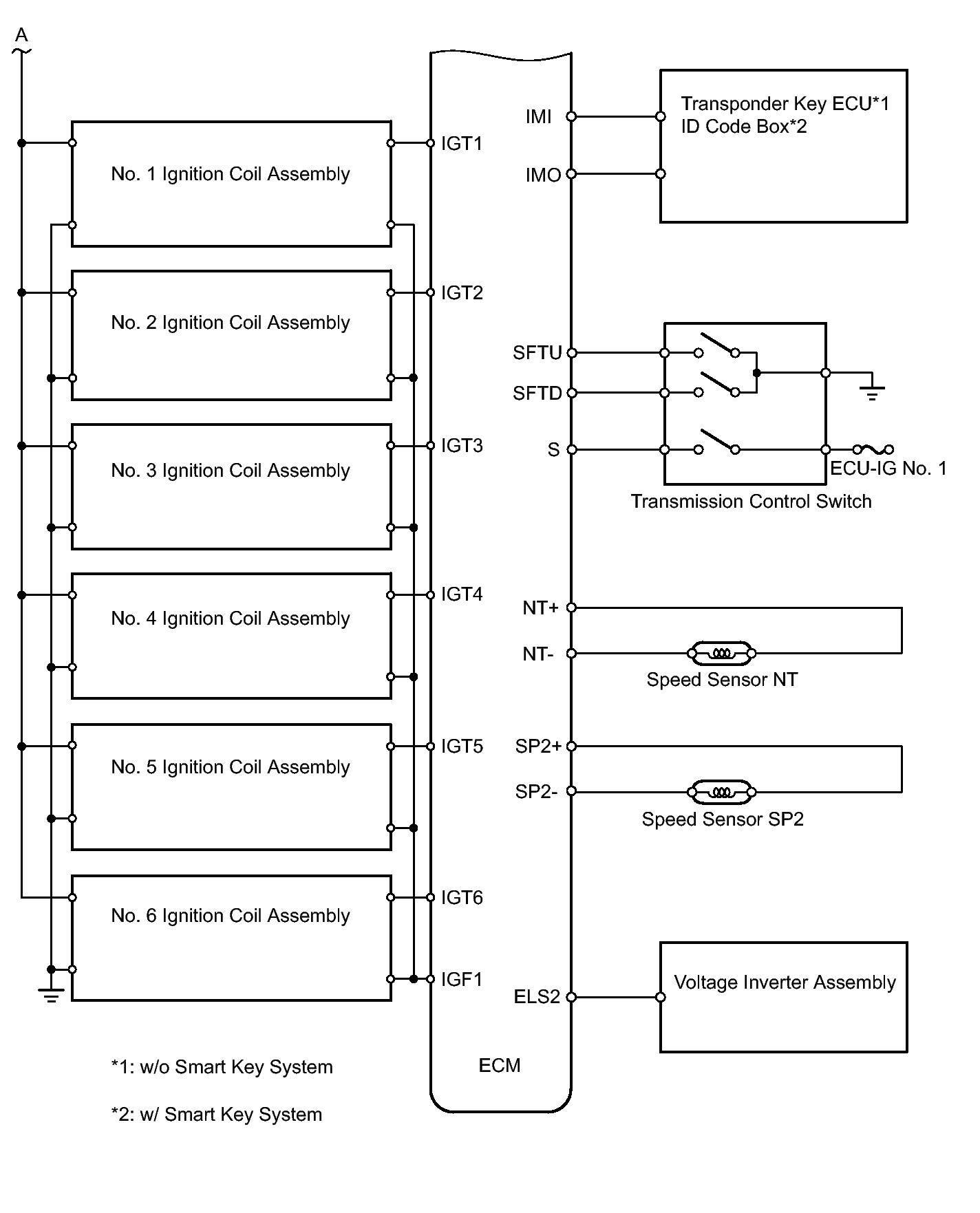

Fig 6: Identifying SFI System Diagram
GTY219493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
