Remote Control Mirror: Notes

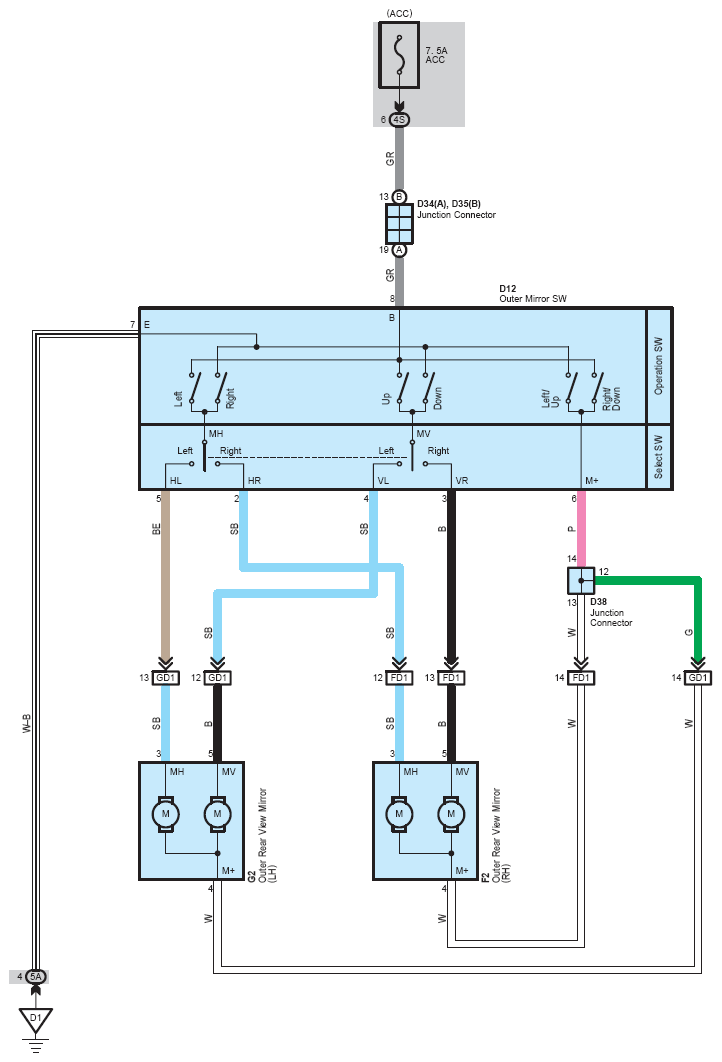

Fig 1: Remote Control Mirror System Wiring Diagram
G07124540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
