Installation





POWER DISTRIBUTION: POWER MANAGEMENT CONTROL ECU: INSTALLATION

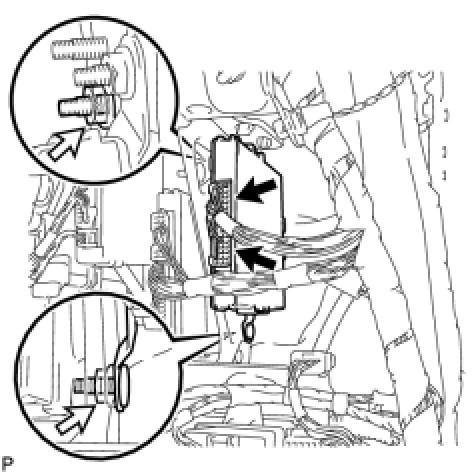

1. INSTALL POWER MANAGEMENT CONTROL ECU

(a) Install the power management control ECU with the 2 nuts.





(b) Connect the 2 connectors.

2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation

3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation

5. INSTALL FRONT DOOR SCUFF PLATE RH Installation
