Torque Specifications





SPECIFICATIONS: 1AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

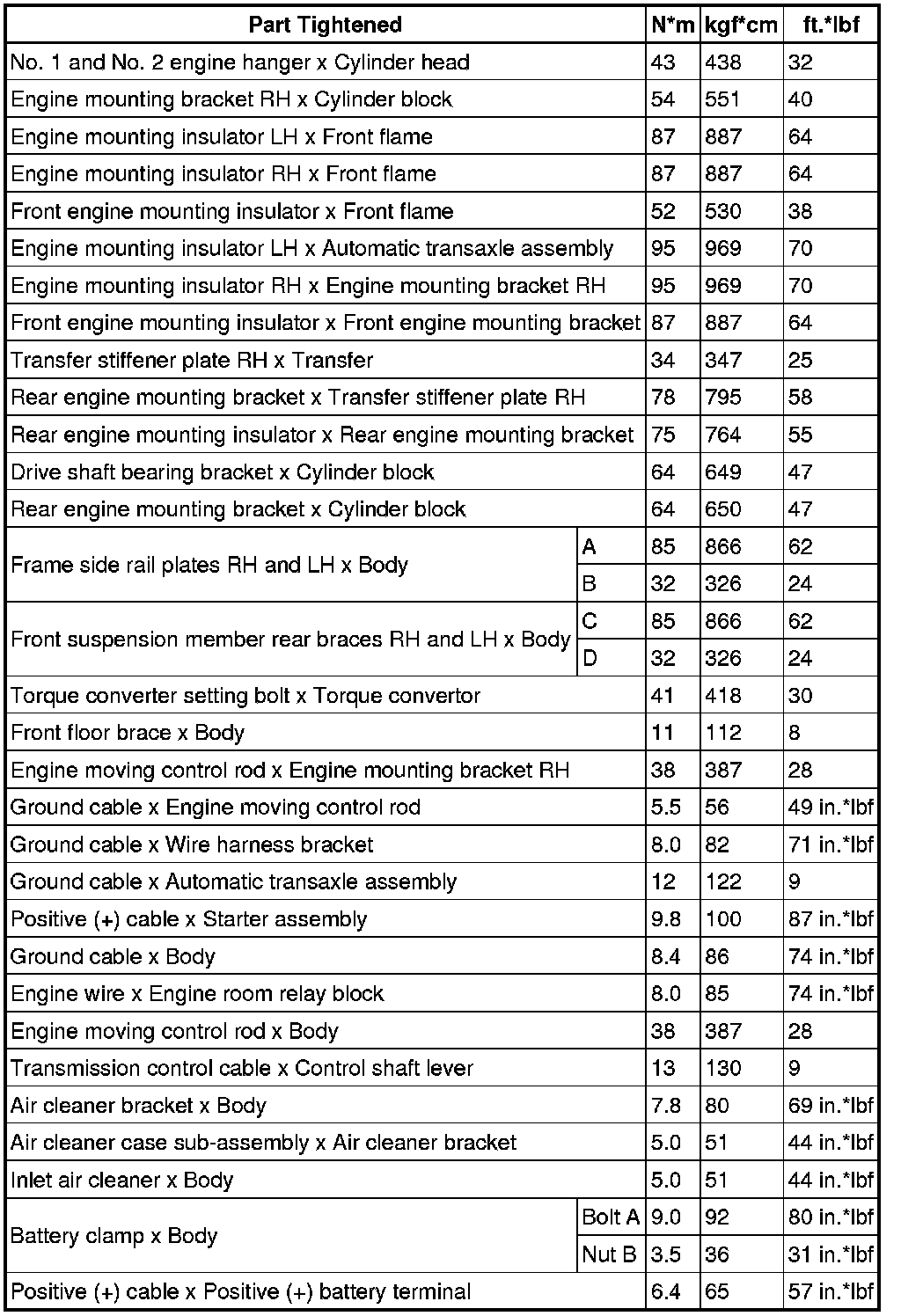

ENGINE

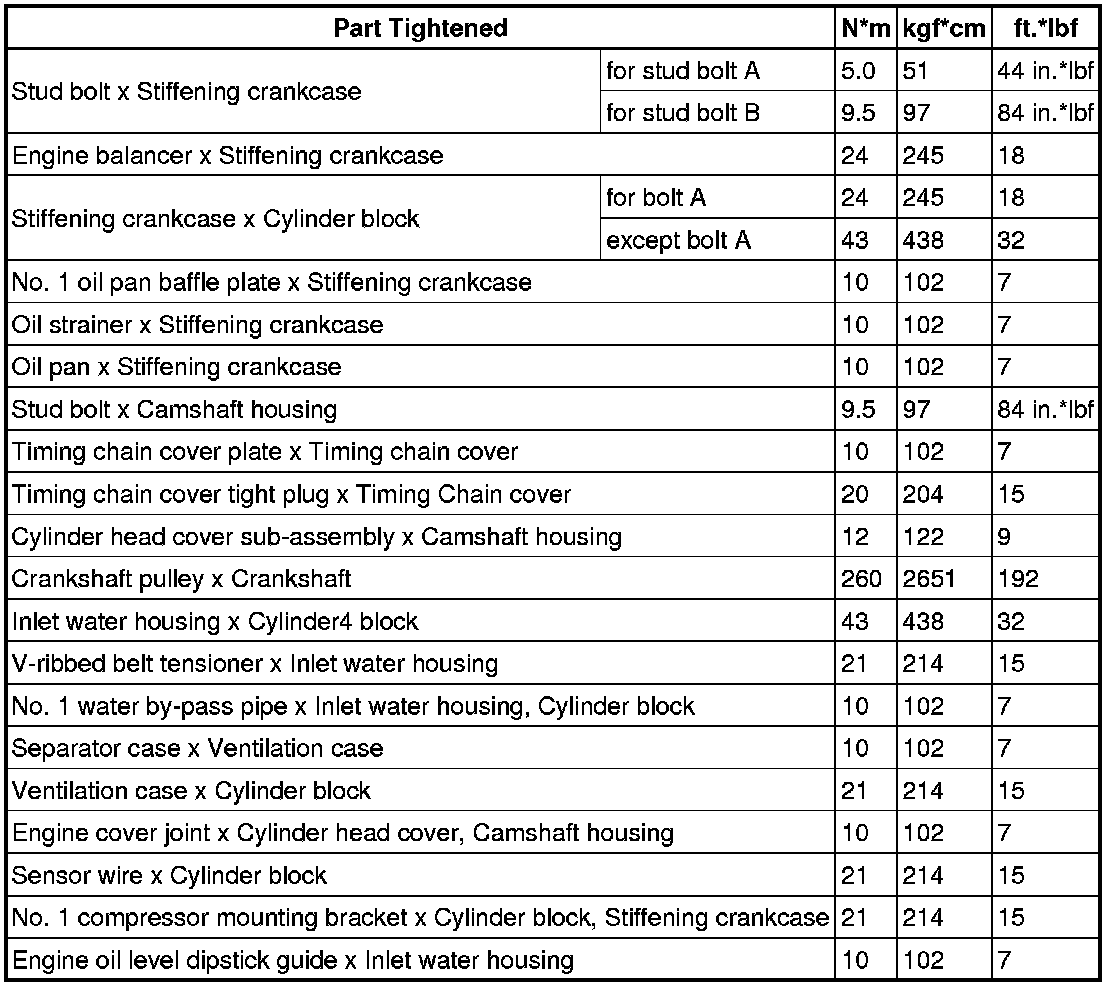

CAMSHAFT





CYLINDER HEAD GASKET





CYLINDER HEAD





CYLINDER BLOCK





ENGINE REAR OIL SEAL





ENGINE ASSEMBLY





ENGINE UNIT
