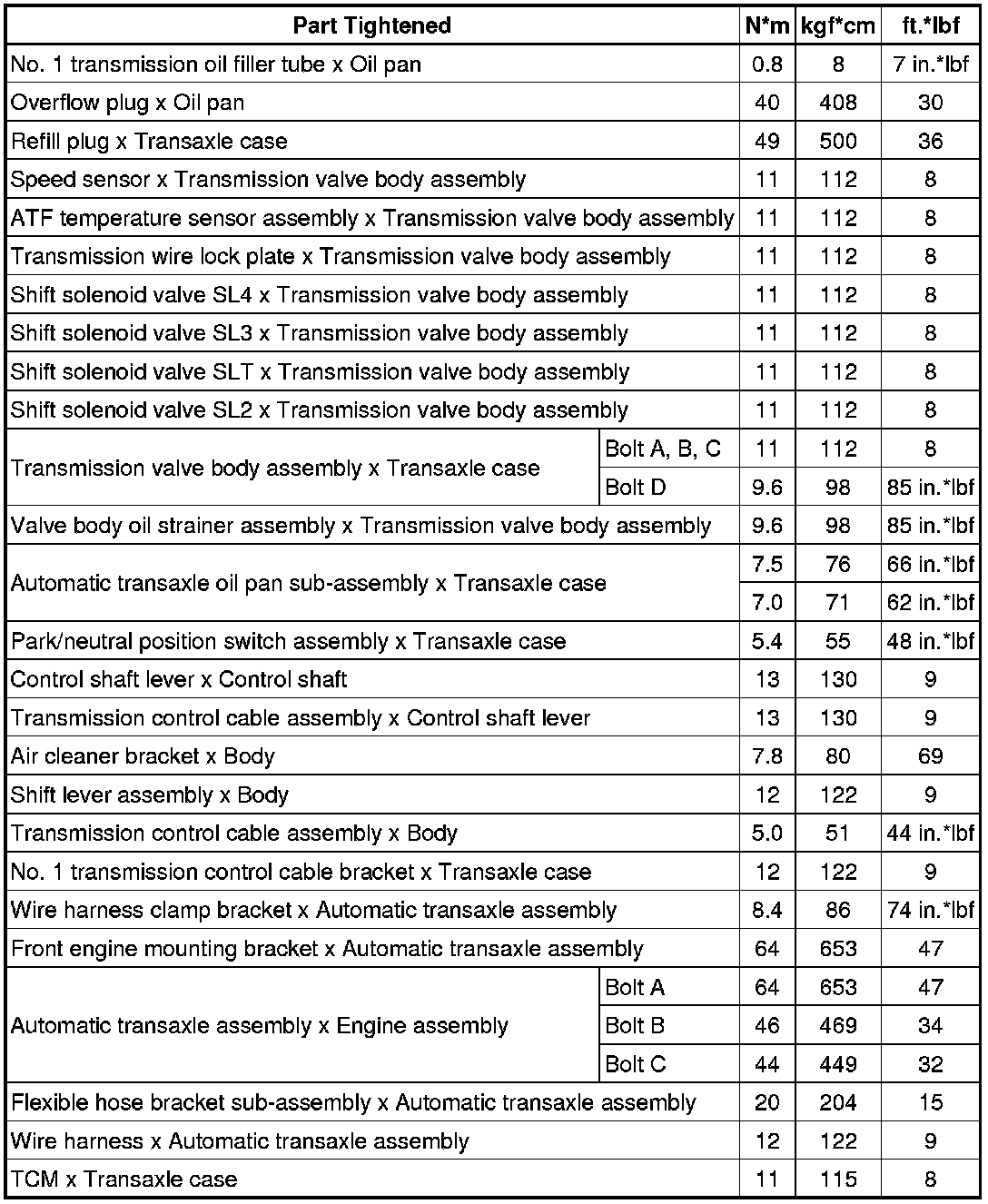

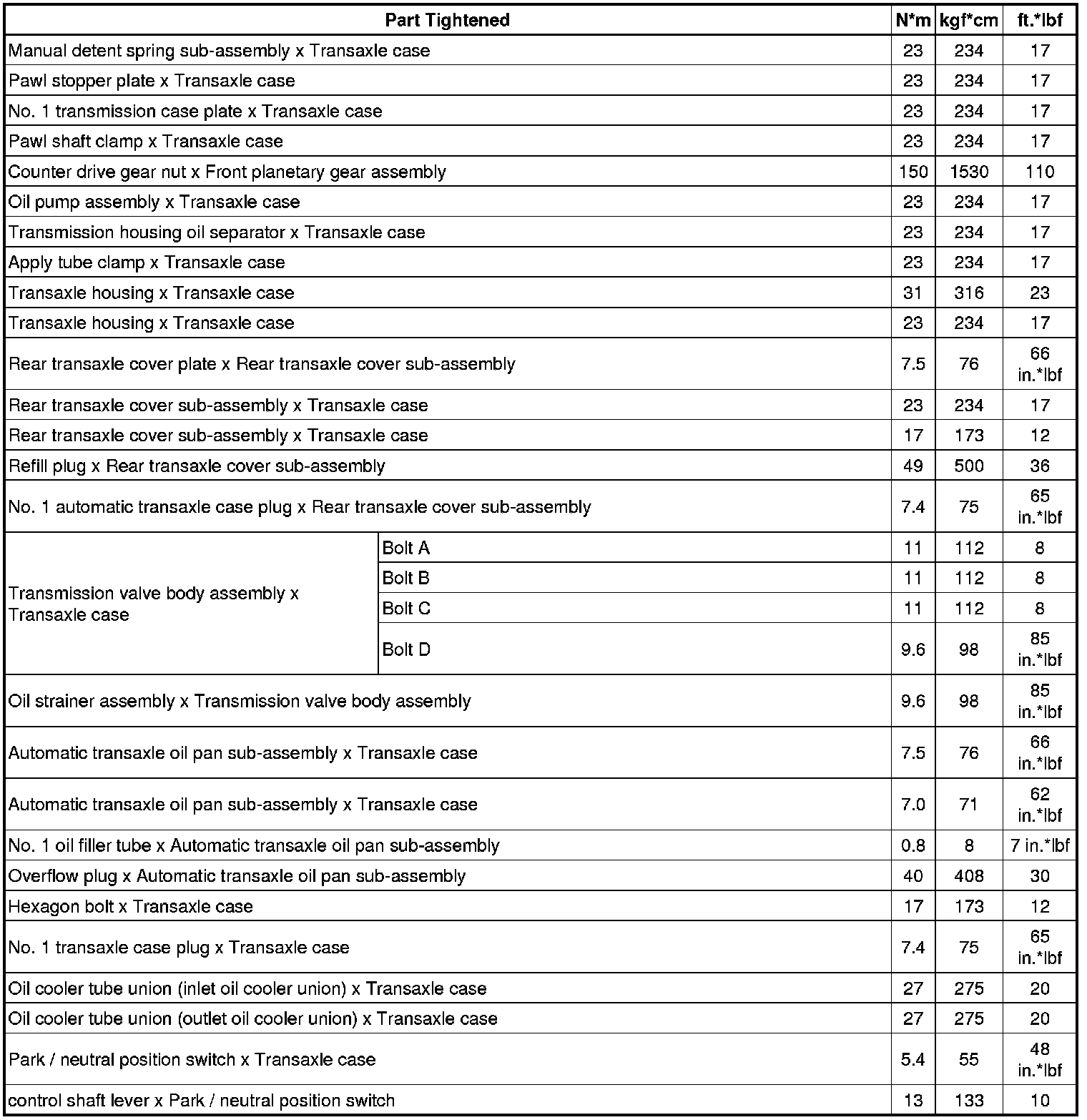

Torque Specifications





SPECIFICATIONS: U760F AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS





Automatic Transaxle Unit





Oil Pump





Differential Case
