Service Data

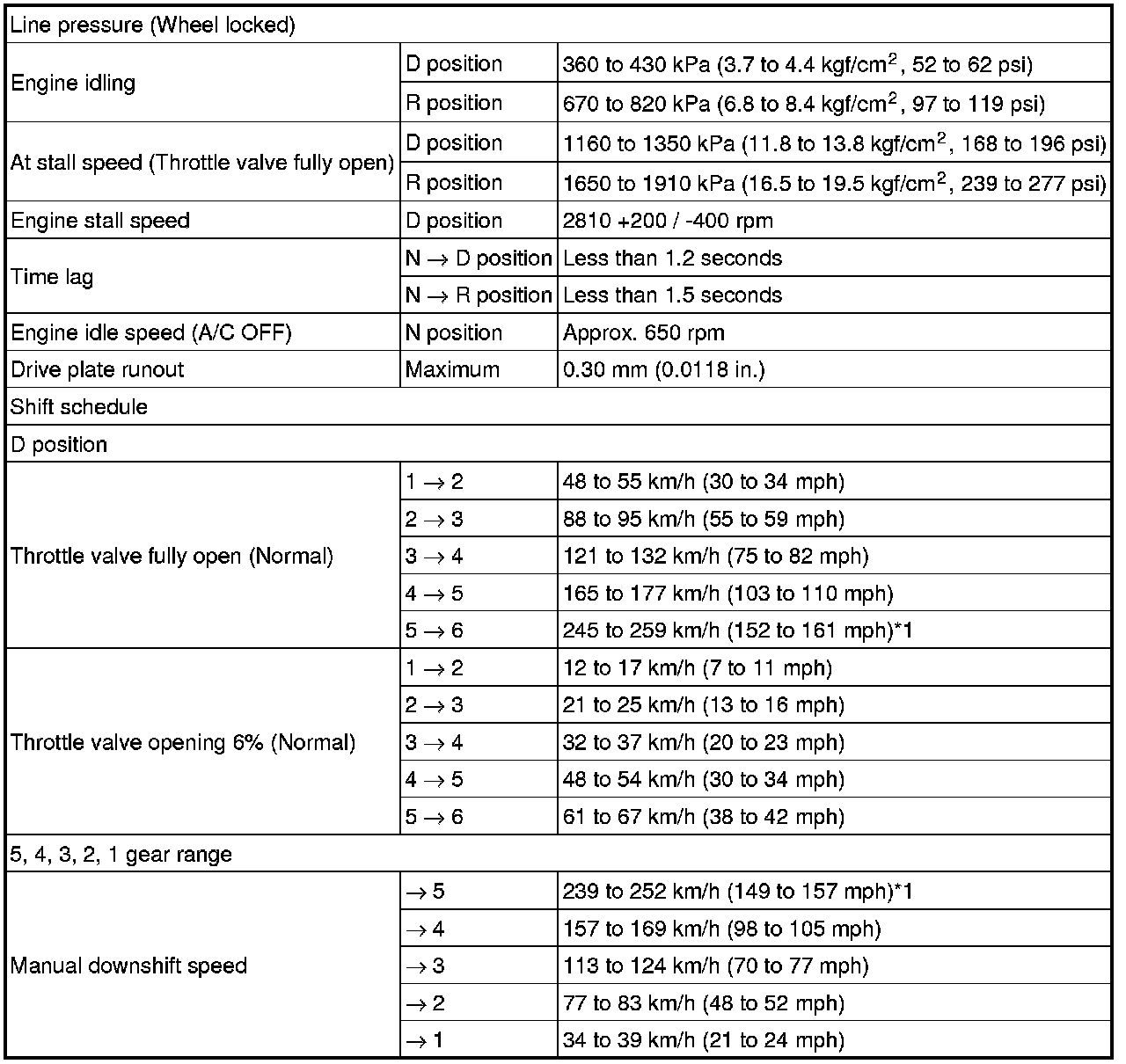

SPECIFICATIONS: U760F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA





*1: Speed limiter active

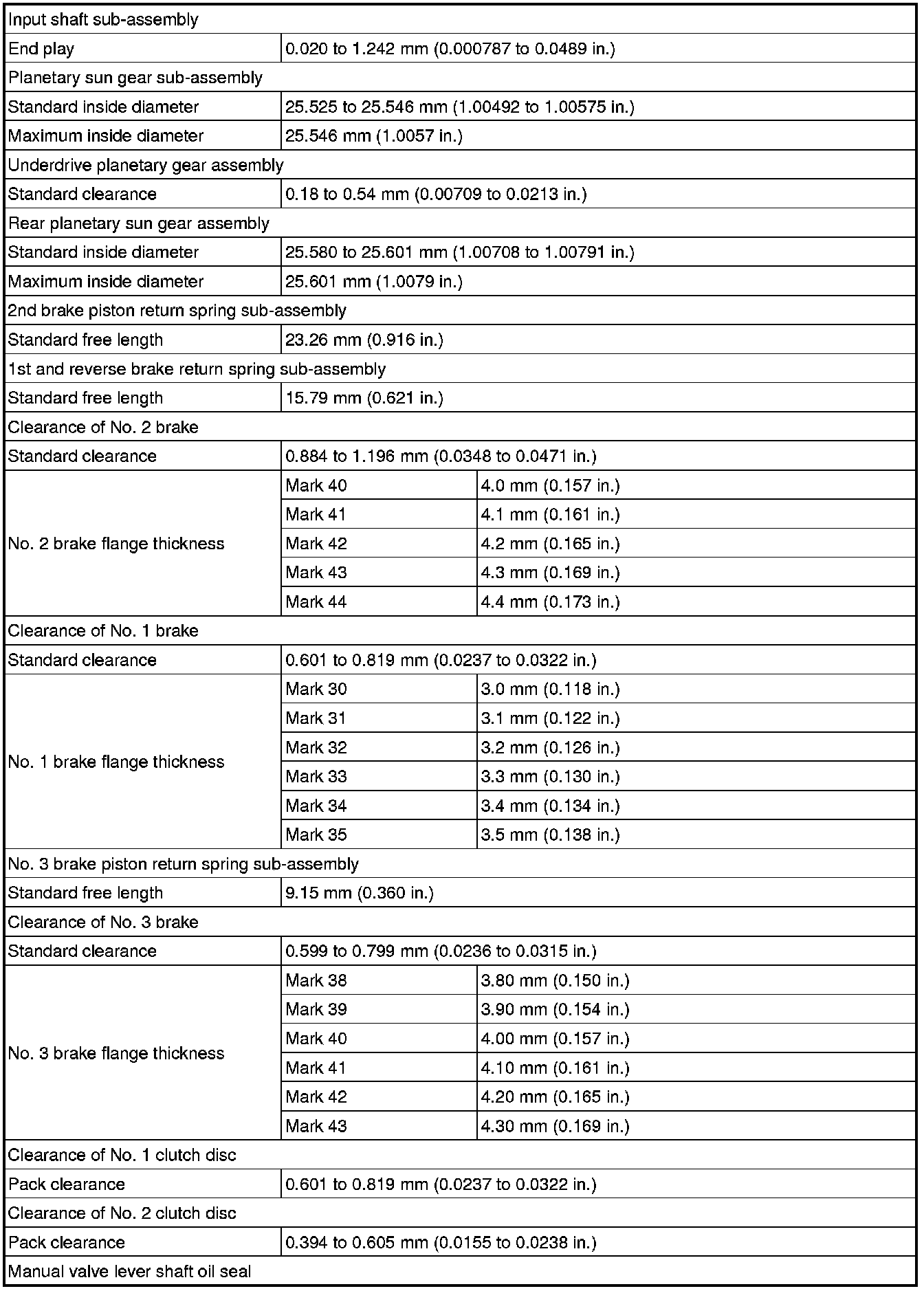

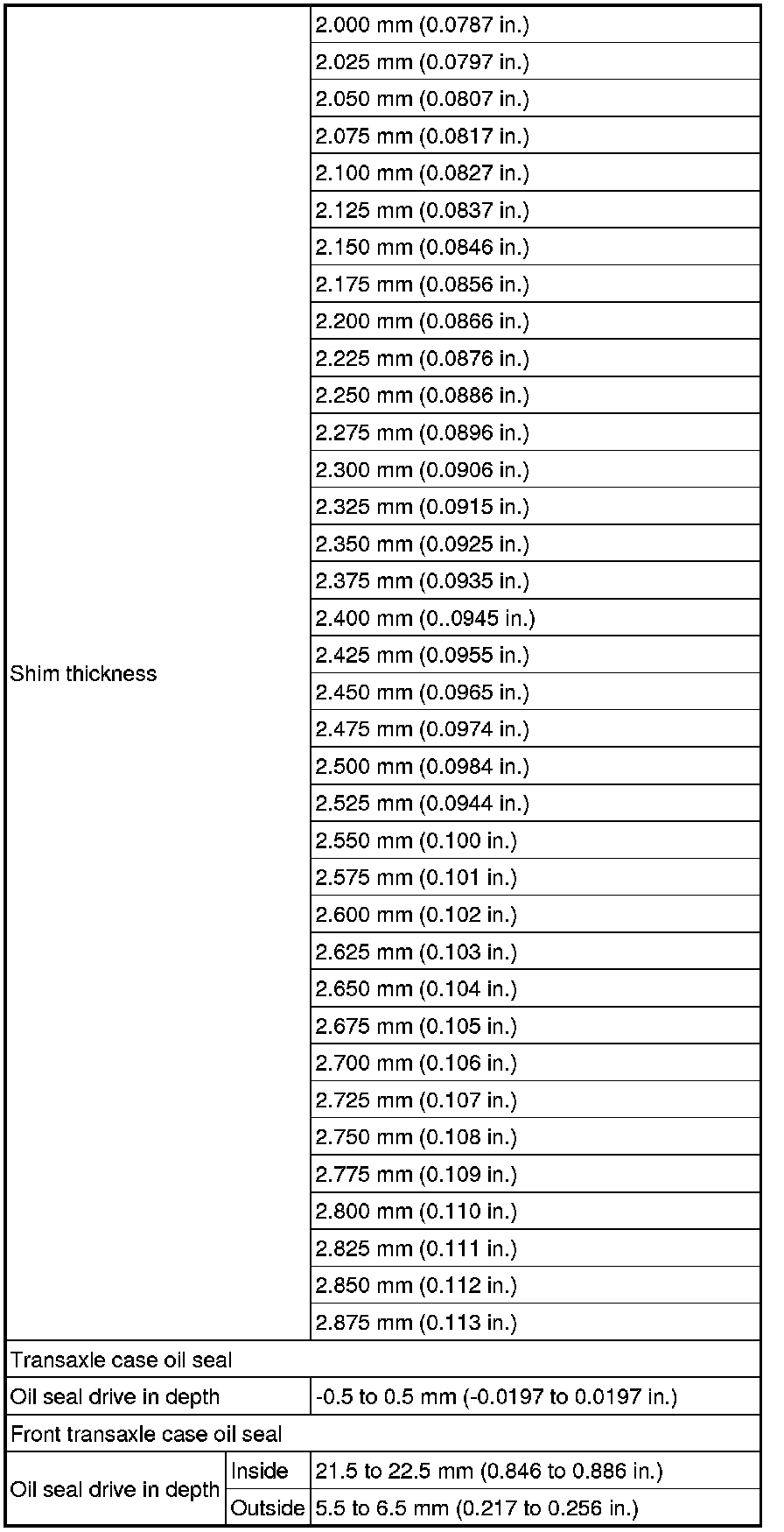

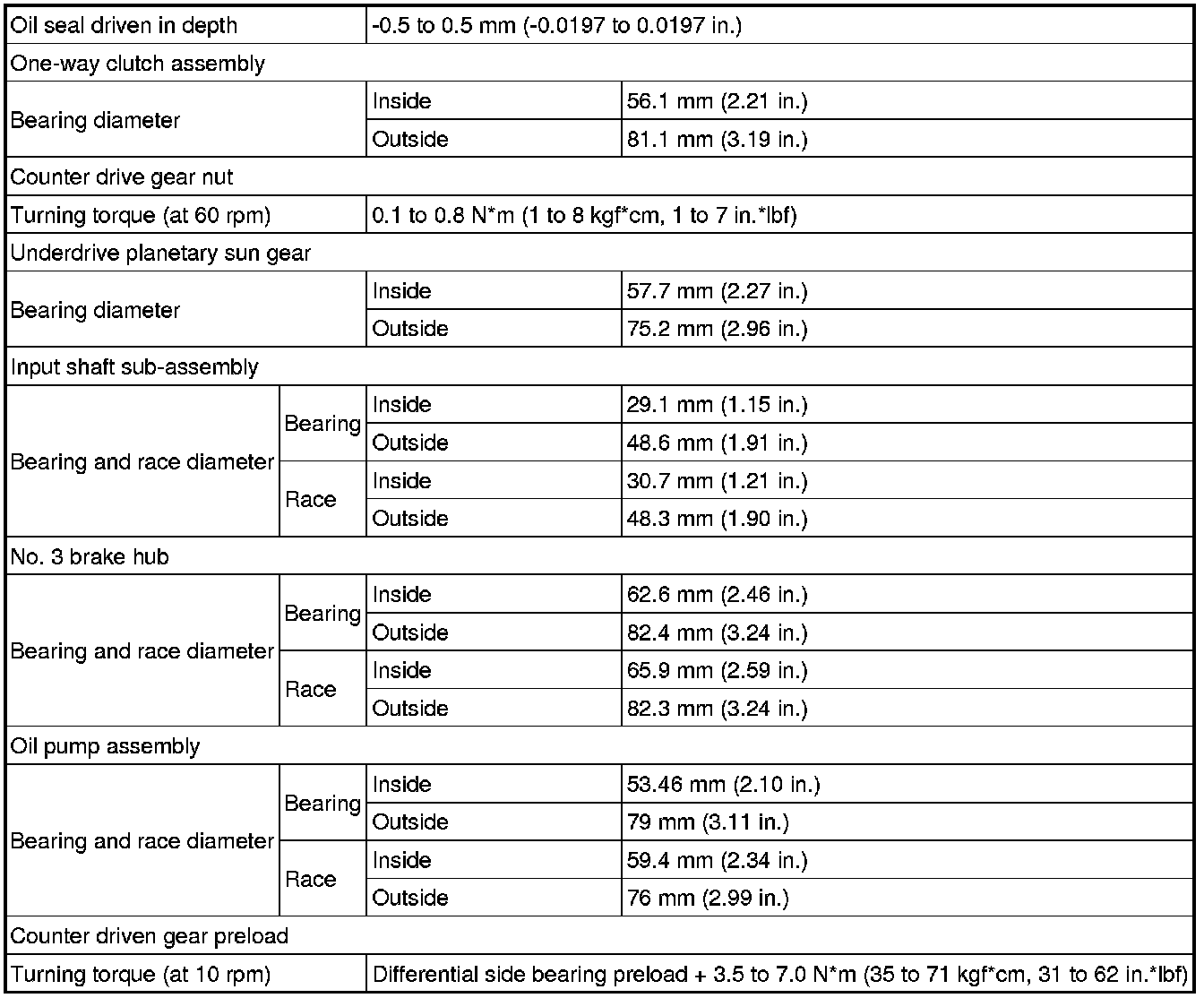

Automatic Transaxle Unit

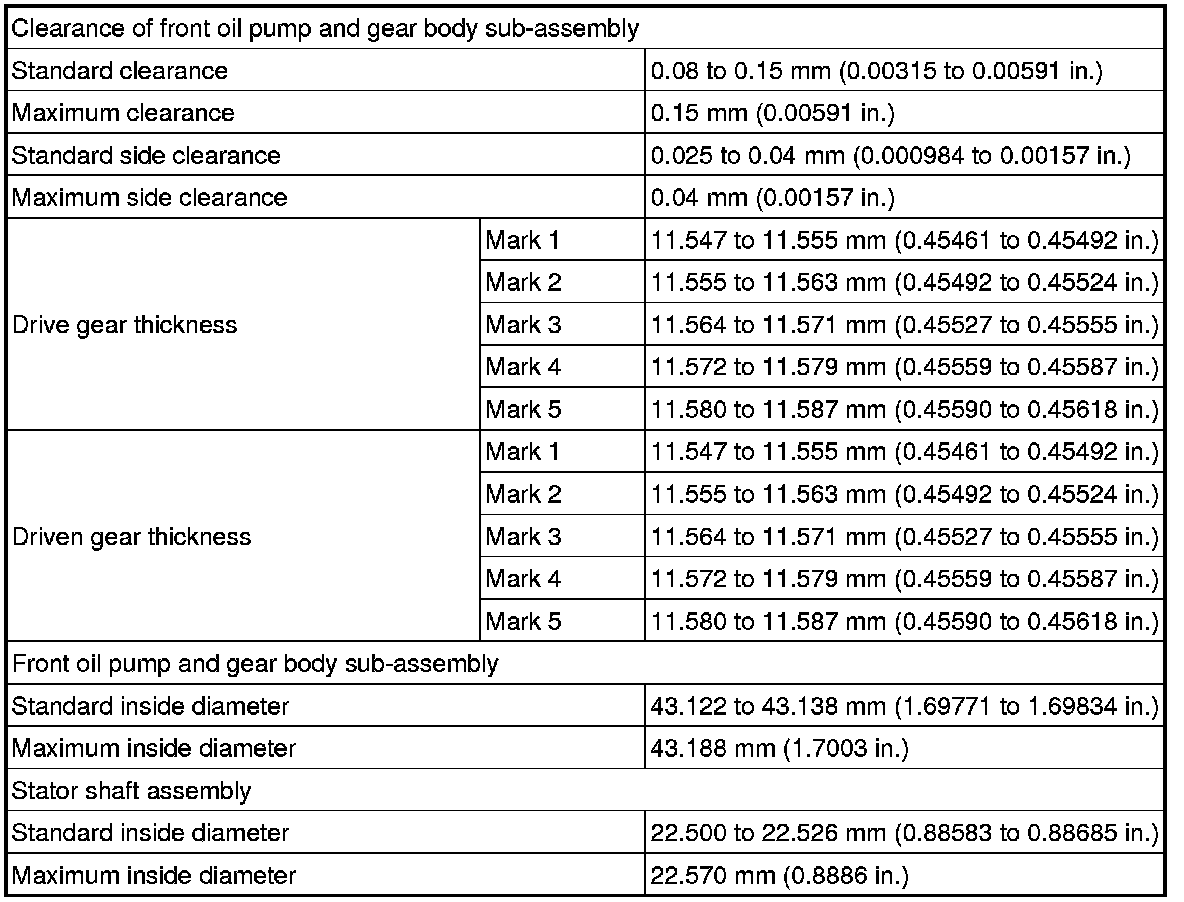

Oil Pump

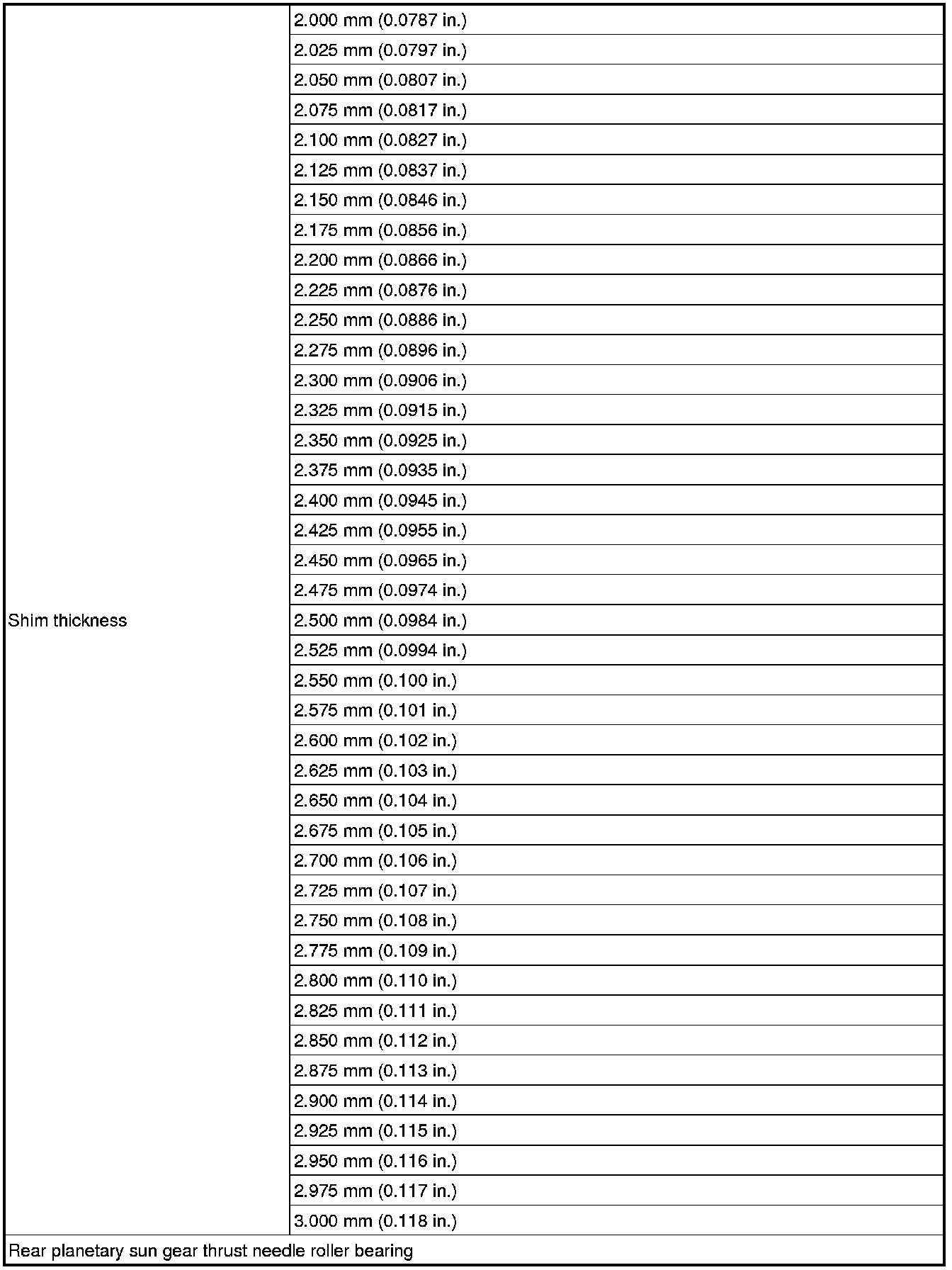

Differential Case
