Service Data

SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA

Vehicle Height (Unloaded Vehicle)

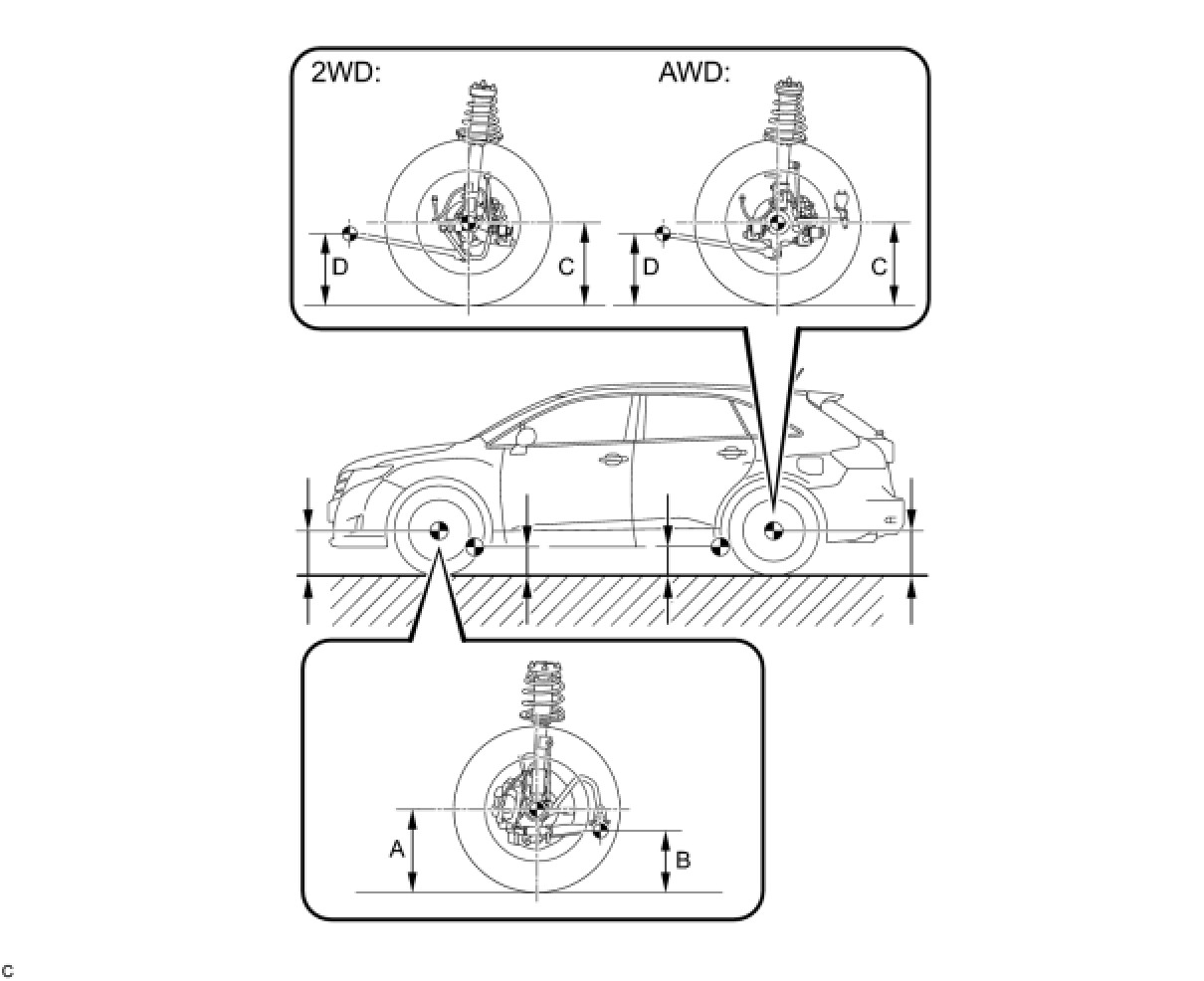

Measurement points:

* A: Ground clearance of front wheel center

* B: Ground clearance of No. 2 lower suspension arm bushing set bolt center

* C: Ground clearance of rear wheel center

* D: Ground clearance of strut rod set bolt center





Camber (Unloaded Vehicle)





Caster (Unloaded Vehicle)





Steering Axis Inclination (Unloaded Vehicle)





Toe-in





Wheel Turning Angle (Unloaded Vehicle)
