Automatic Transmission/Transaxle

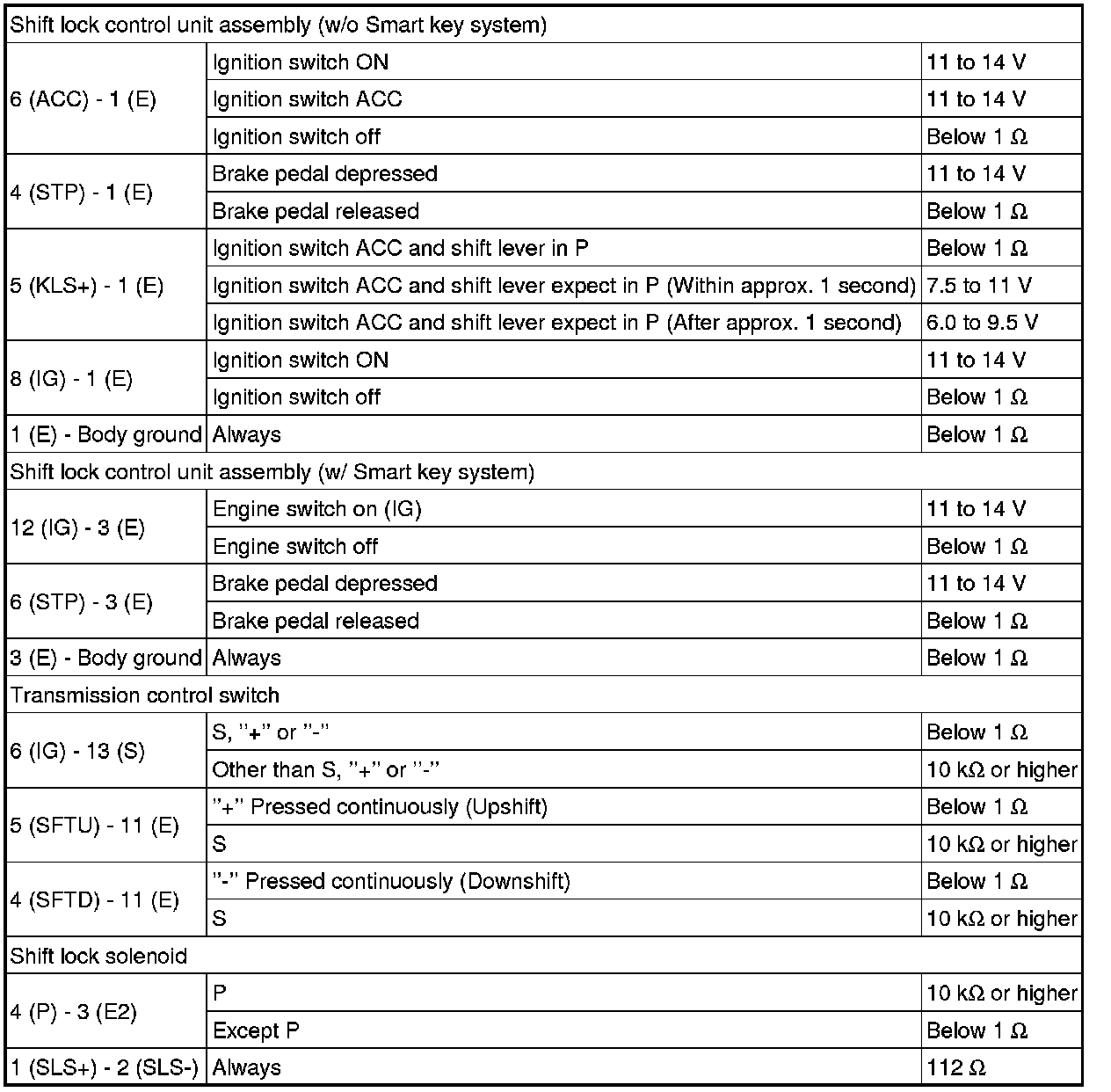

SPECIFICATIONS: U760F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA


Park/Neutral Position Switch





Shift Lever





Shift Solenoid Valve
