Removal





POWER DISTRIBUTION: INTEGRATION RELAY: REMOVAL

1. REMOVE POWER DISTRIBUTION

(a) Remove the bolt.

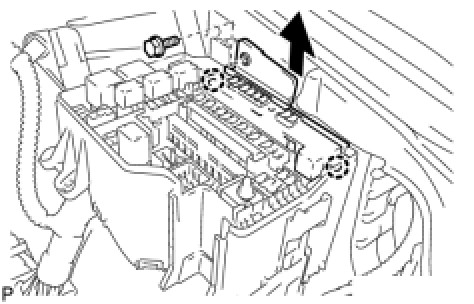

(b) Disengage the 2 claws and disconnect the power distribution from the relay box as shown in the illustration.

(c) Disconnect the 3 connectors and remove the power distribution.
