Installation

HEATING / AIR CONDITIONING: SOLAR SENSOR: INSTALLATION

1. INSTALL SOLAR SENSOR

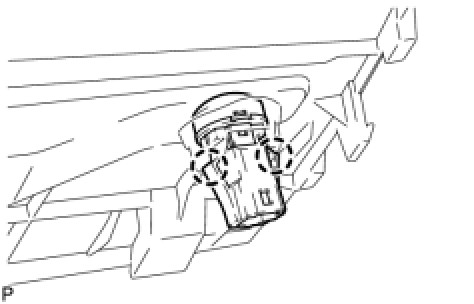

(a) Engage the 2 claws to install the solar sensor.





2. INSTALL DEFROSTER NOZZLE GARNISH Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
