Garage Door Opener: Notes

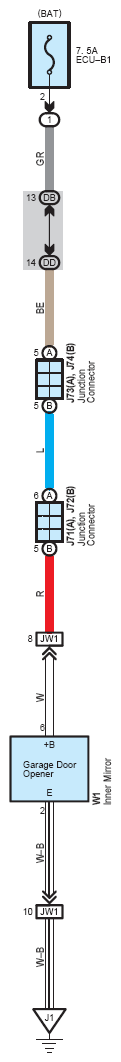

Fig 1: Garage Door Opener System Wiring Diagram
G07123694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
