Engine Immobiliser (w/o Smart Key System): Notes

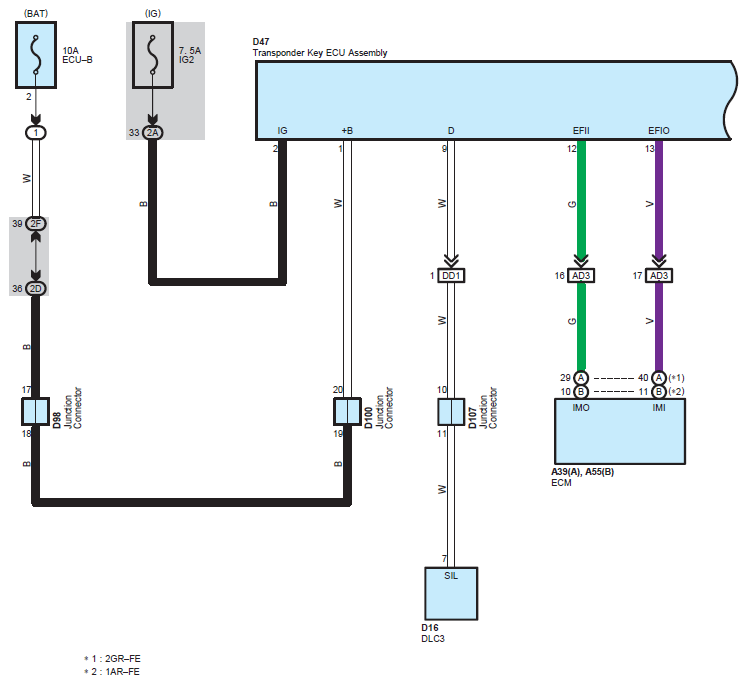

Fig 1: Engine Immobiliser (w/o Smart Key System) Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

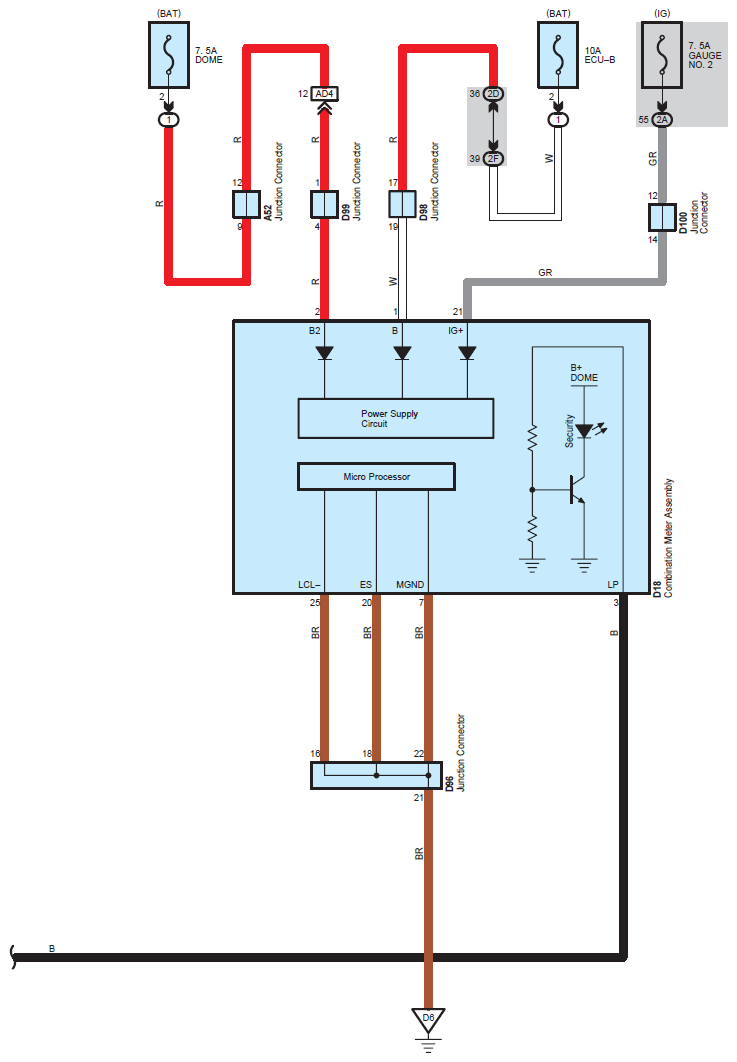

Fig 2: Engine Immobiliser (w/o Smart Key System) Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

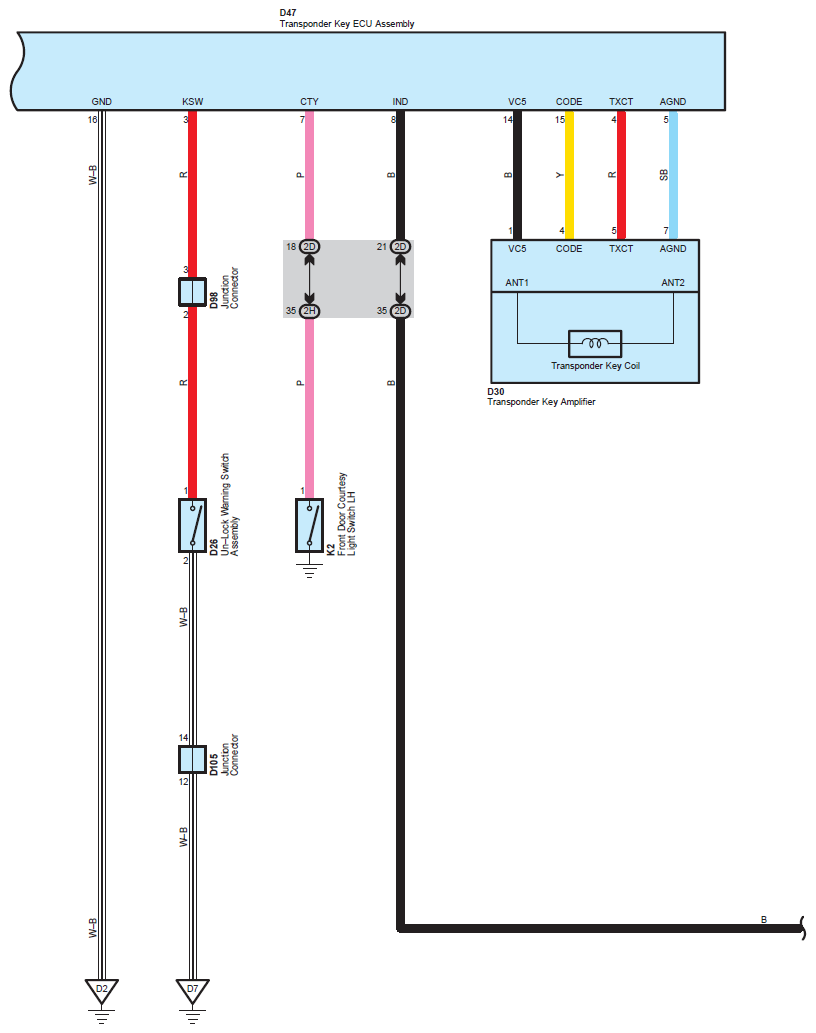

Fig 3: Engine Immobiliser (w/o Smart Key System) Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
