Torque Specifications





SERVICE SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

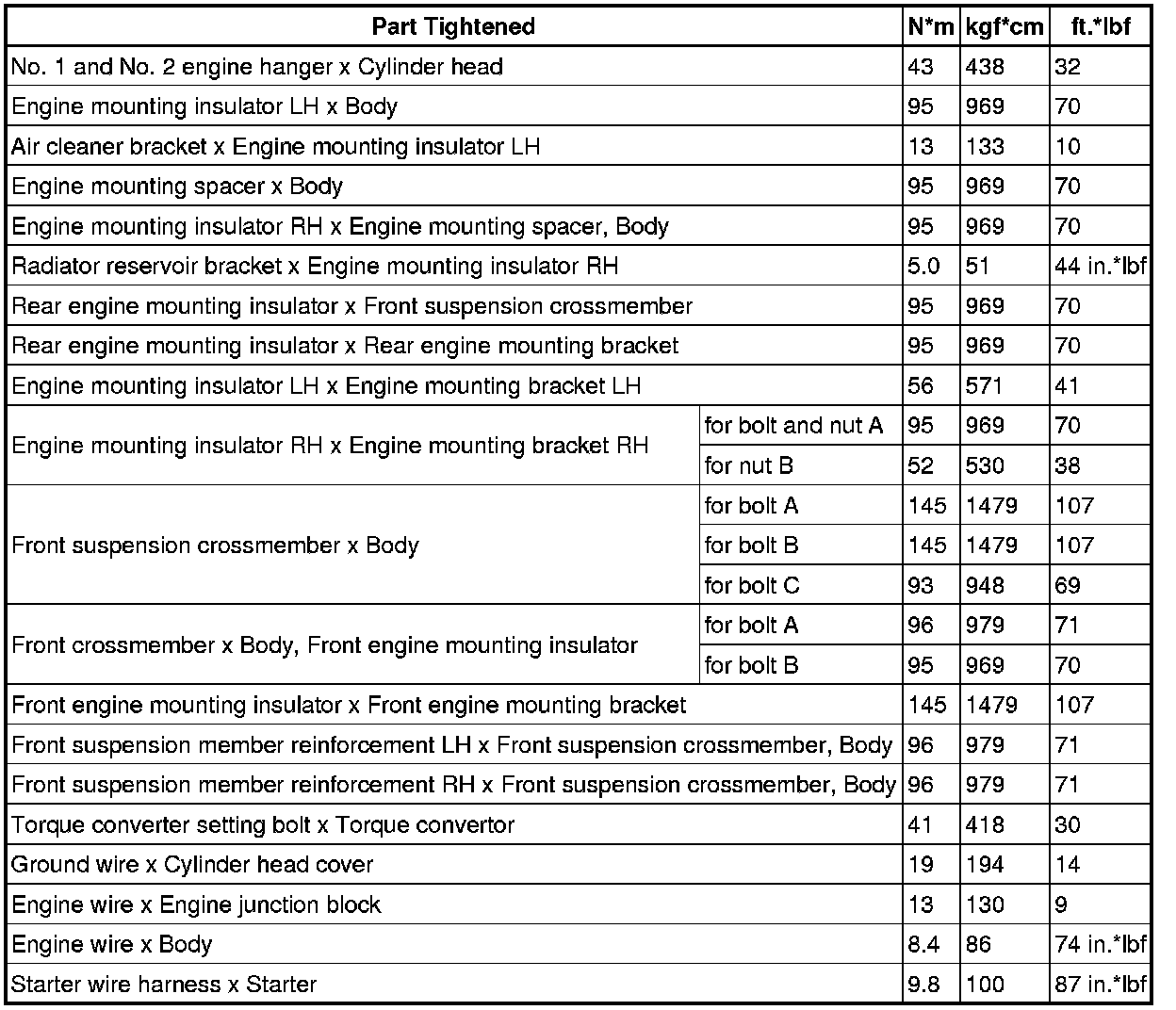

ENGINE





DRIVE BELT





CAMSHAFT





CYLINDER HEAD GASKET





CYLINDER HEAD





CYLINDER BLOCK





ENGINE REAR OIL SEAL





ENGINE ASSEMBLY

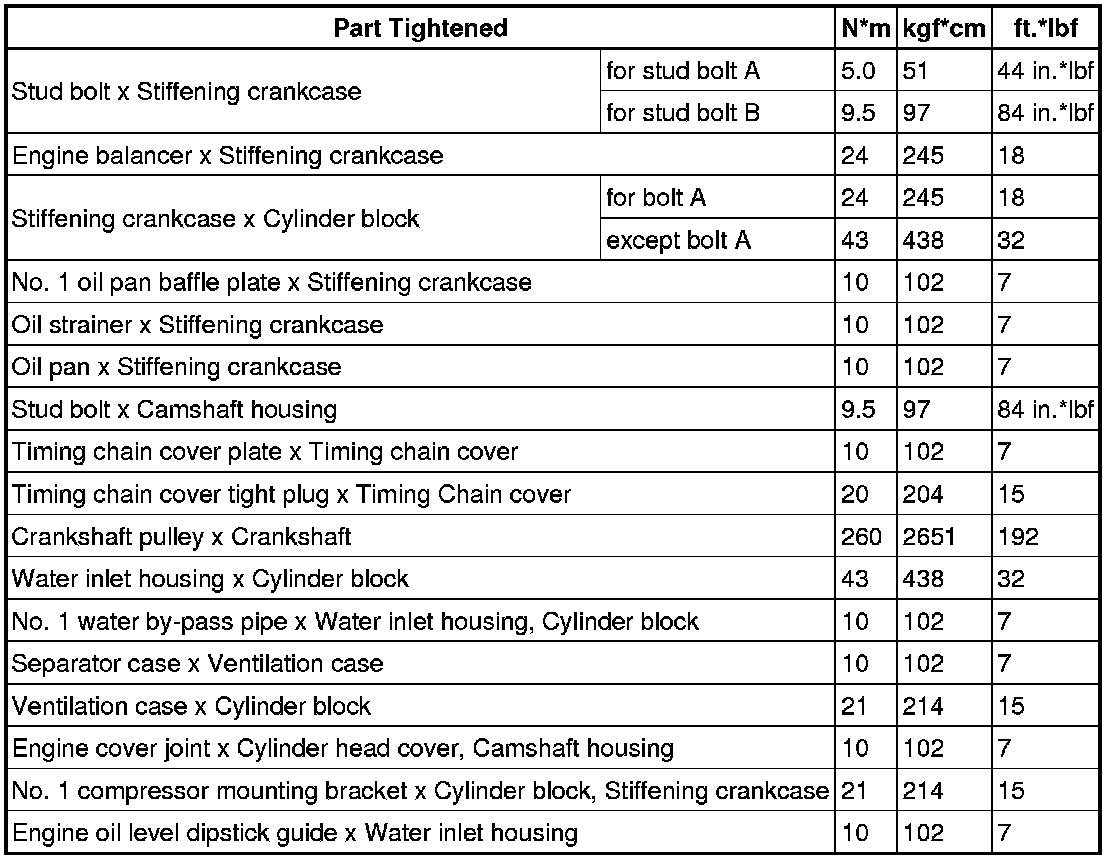

ENGINE UNIT
