Service Data





SERVICE SPECIFICATIONS: U241E AUTOMATIC TRANSAXLE: SERVICE DATA

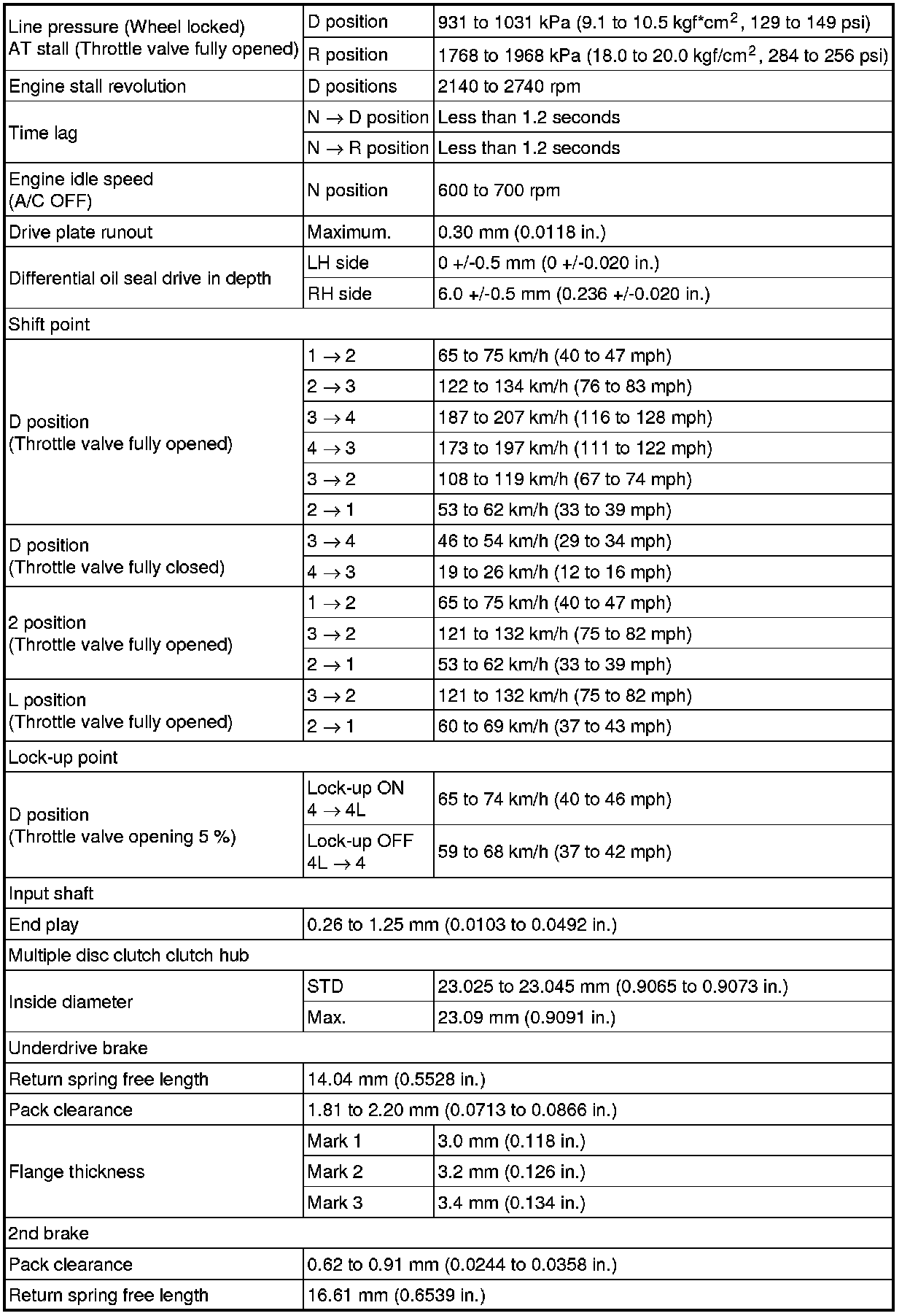

Automatic Transaxle Assembly

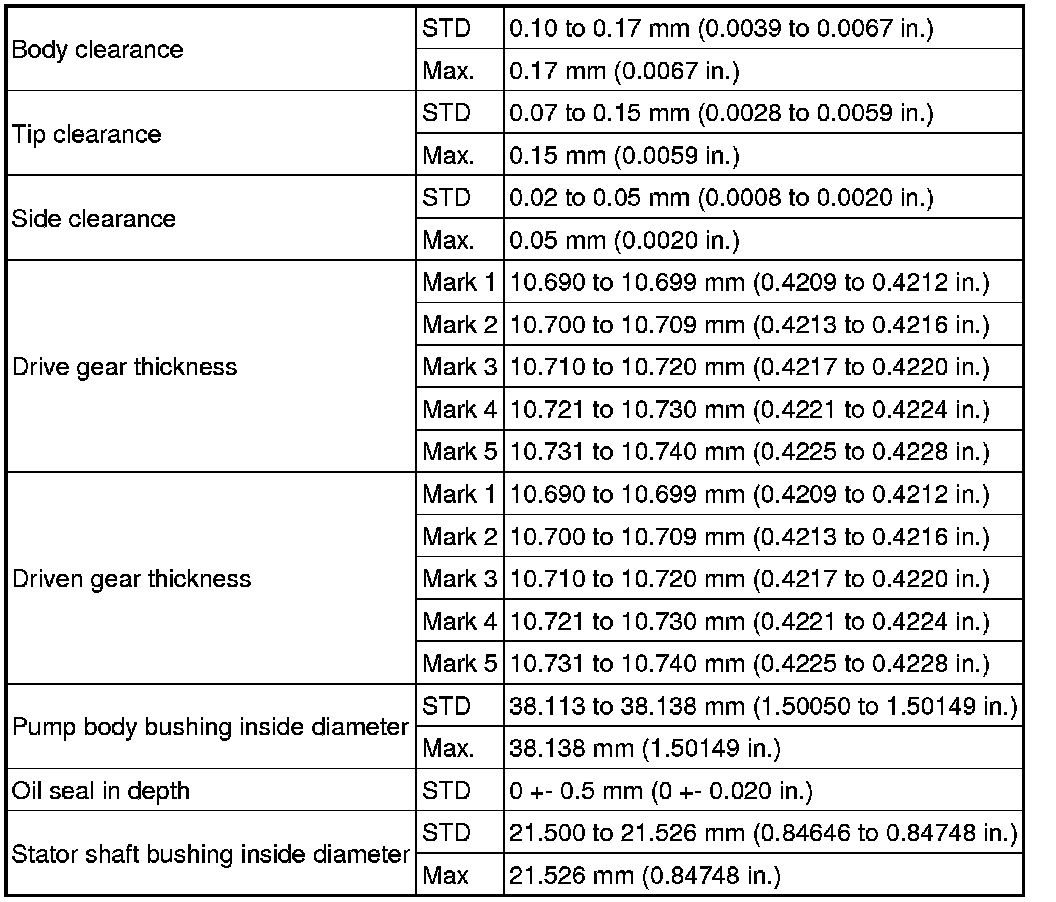

Oil Pump





Second Brake Piston





Forward Clutch





Direct Clutch





Underdrive Planetary Gear





Underdrive Clutch

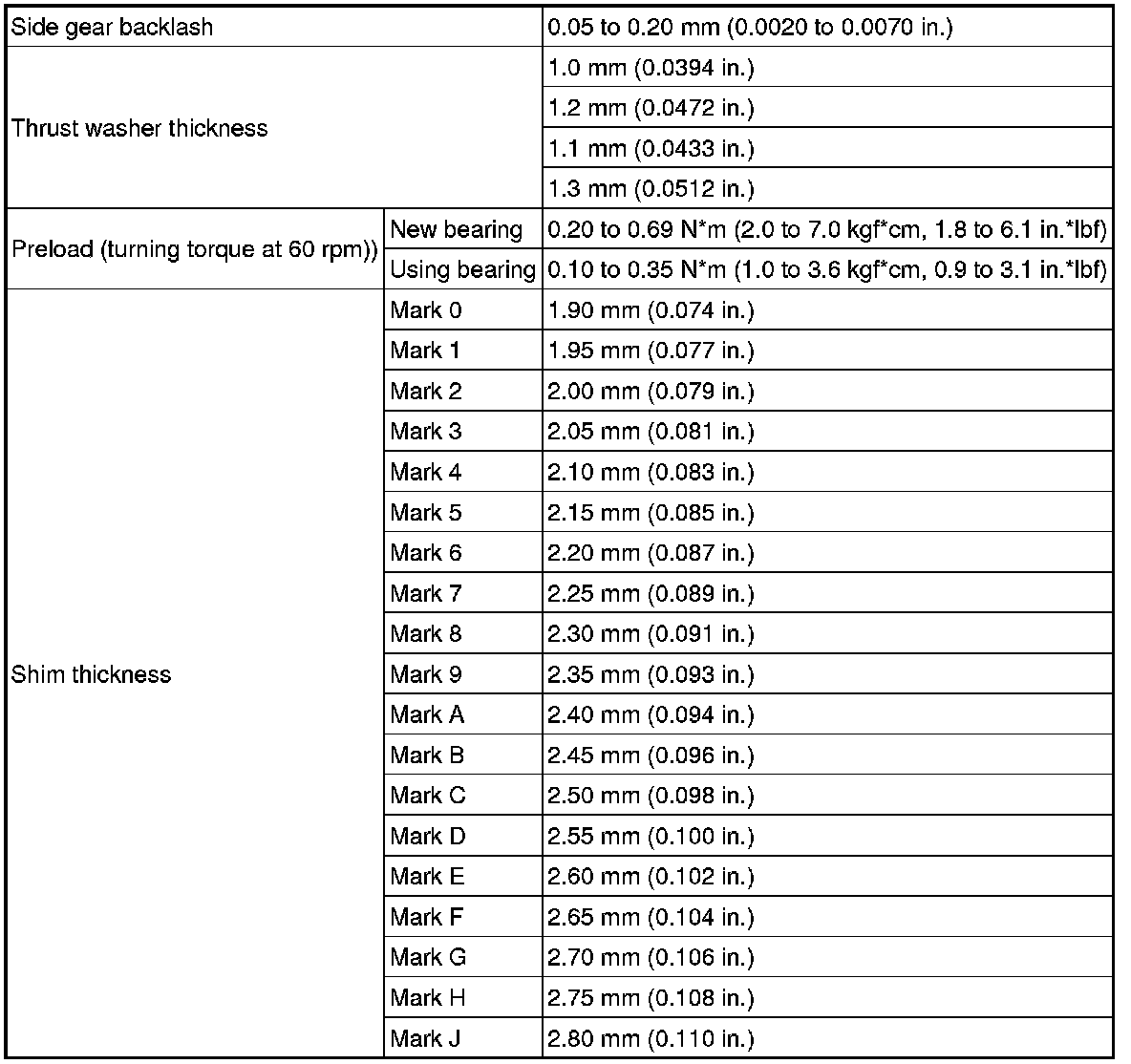

Differential
