Removal

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL

CAUTION:
Be sure to read the precautionary notices concerning the SRS airbag system before servicing it Service Precautions.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE STEERING PAD ASSEMBLY Removal

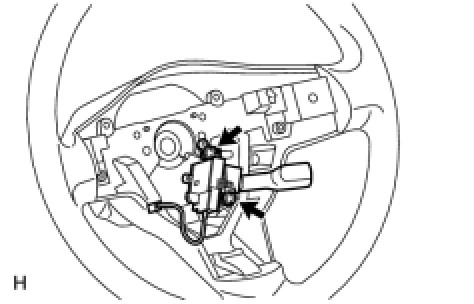

3. REMOVE CRUISE CONTROL MAIN SWITCH





(a) Disconnect the connector.

(b) Remove the 2 screws and switch.
