Wireless Door Lock Control System (W/ Smart Key System)





DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System): CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM (REFERENCE)

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Record the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

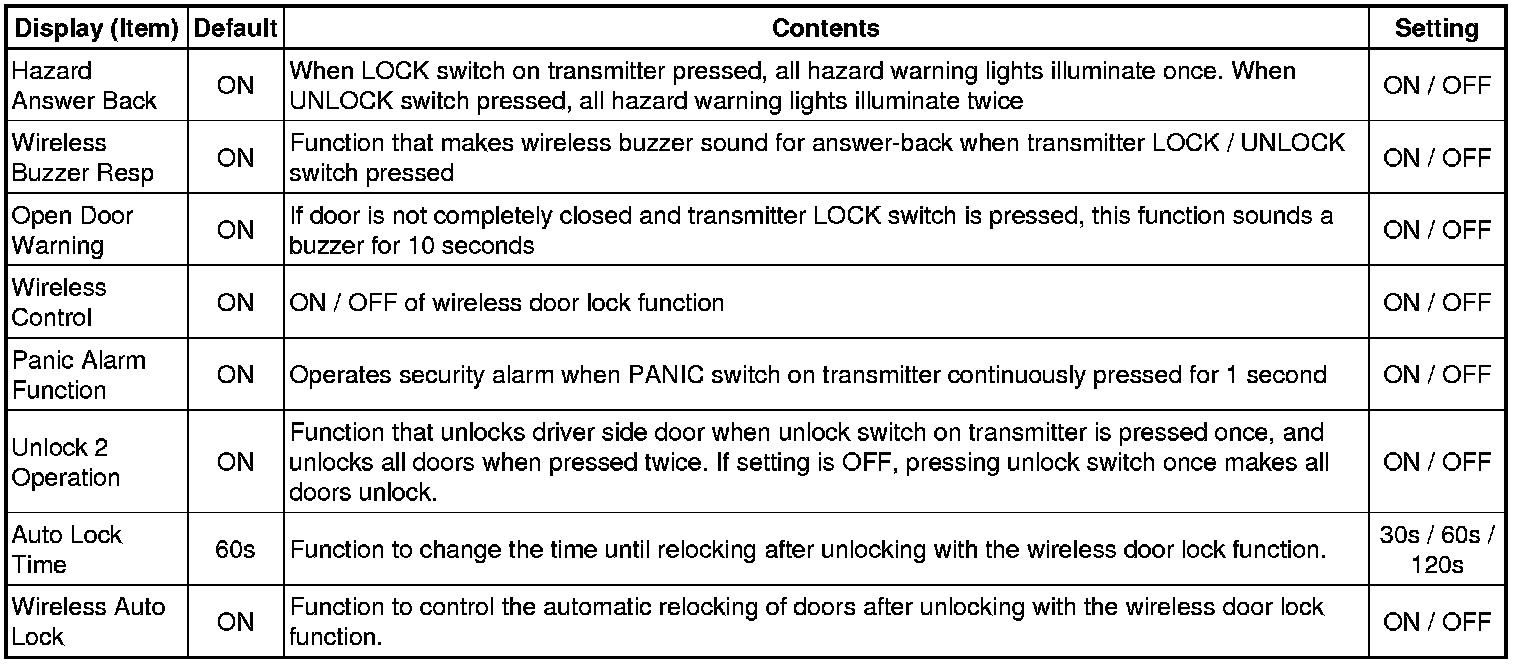

Wireless Door Lock Control System:
