Catalyst Location

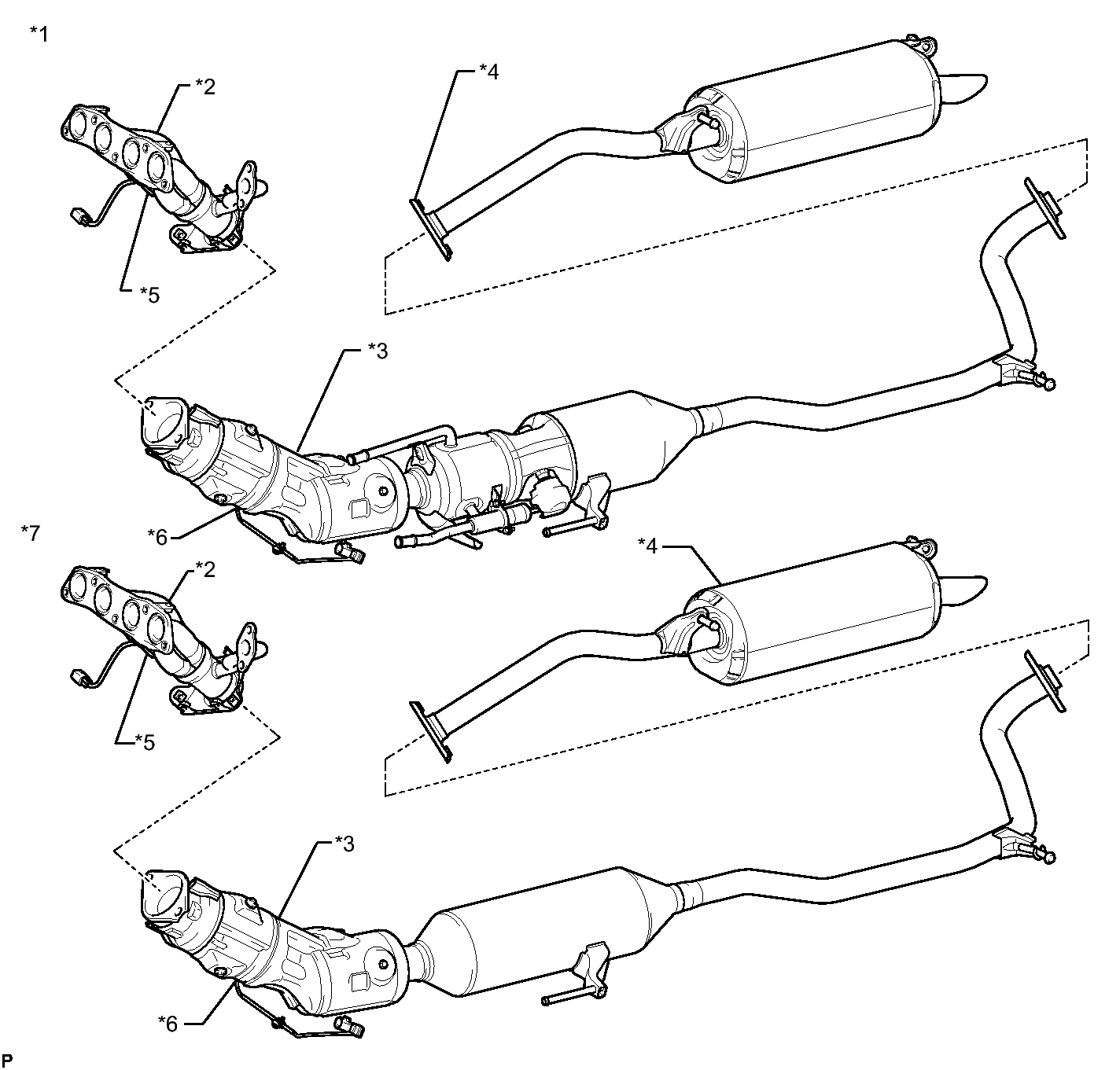

TEXT IN ILLUSTRATION
| *1 | w/ Exhaust Heat Recirculation System | *2 | Exhaust Manifold Sub-assembly |
| *3 | Front Exhaust Pipe Assembly (TWC: Front and Rear Catalyst) | *4 | Tail Exhaust Pipe Assembly |
| *5 | Air Fuel Ratio Sensor (Sensor 1) | *6 | Heated Oxygen Sensor (Sensor 2) |
| *7 | w/o Exhaust Heat Recirculation System | - | - |
