Section 15 (Cooling System (Service Information)): Radiator: Components: Illustration
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

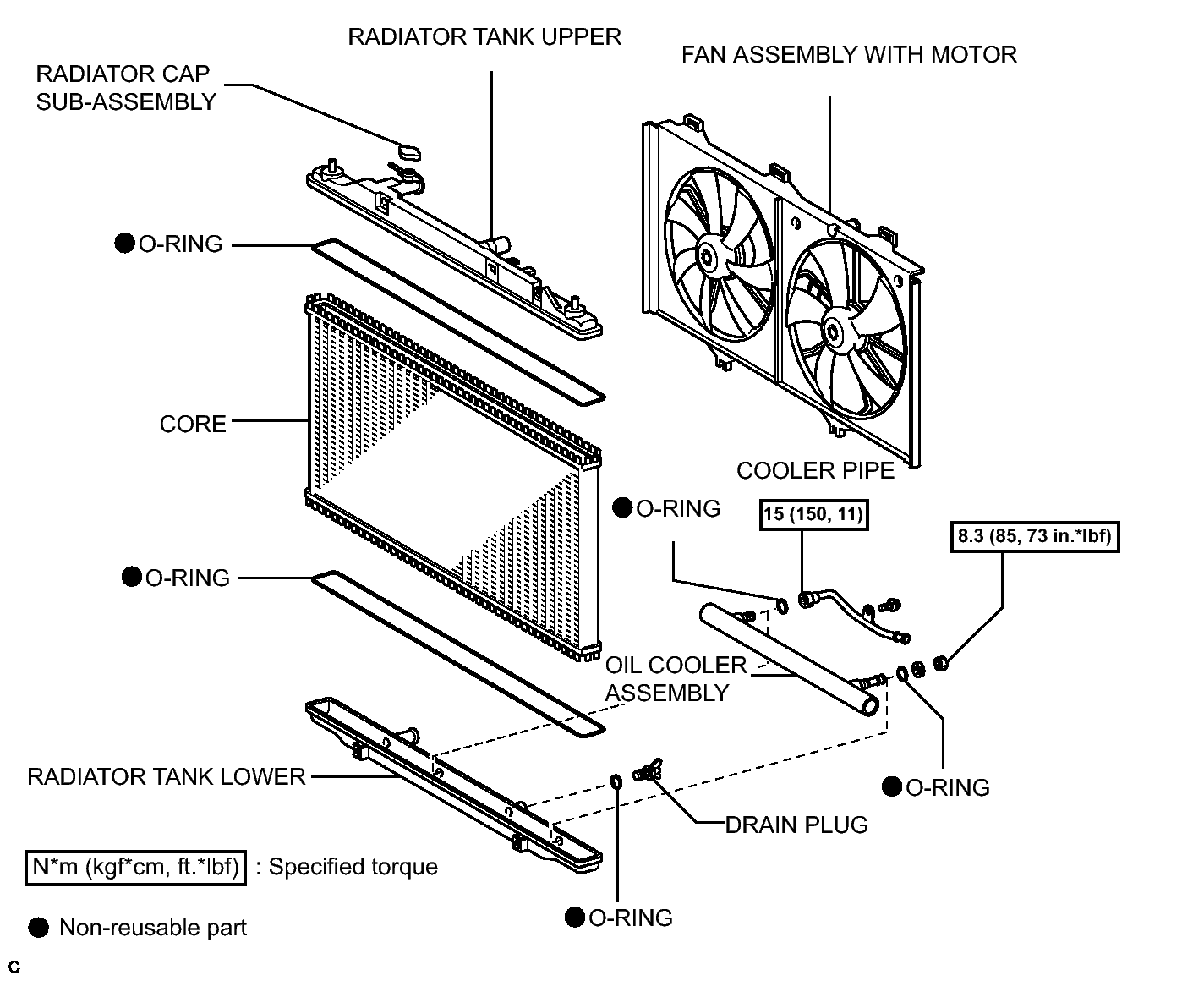

Fig 1: Identifying Radiator Replacement Components With Torque Specification (1 Of 2)
