Mode 6 - TOYOTA
>>
TACOMA
>>
1GR-FE 4.0L
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
1GR-FE 4.0L

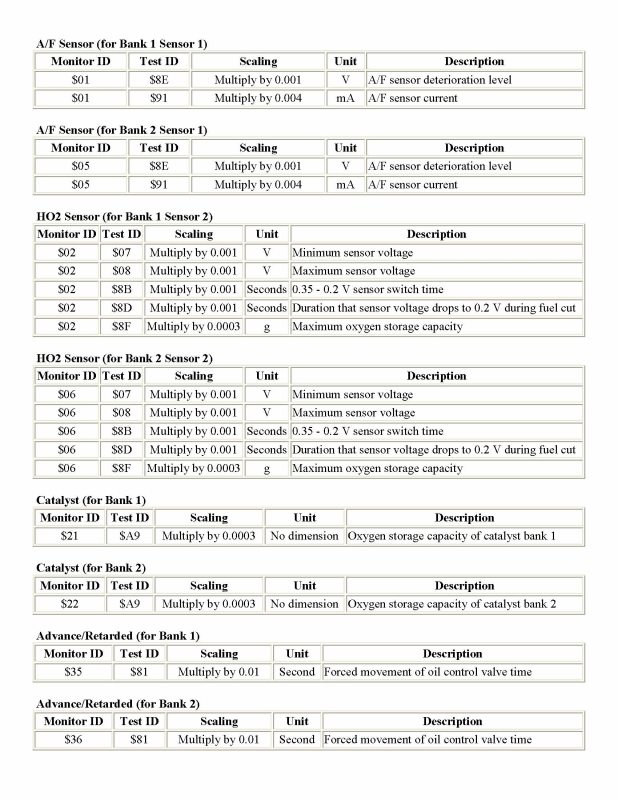

Fig 1: Mode 6 Data For Tacoma V6 (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

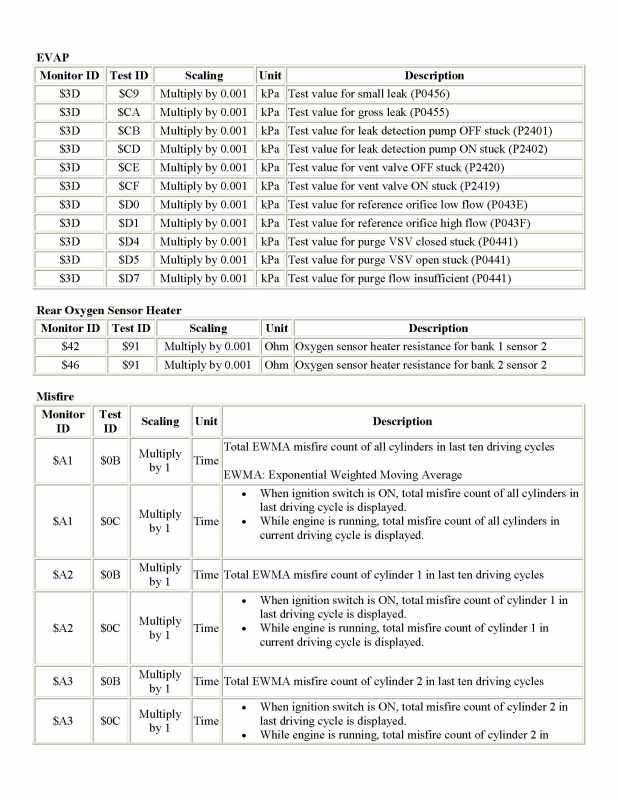

Fig 2: Mode 6 Data For Tacoma V6 (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

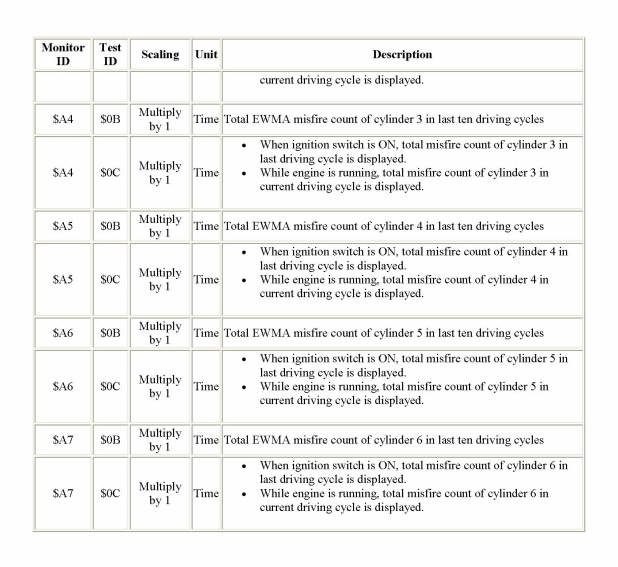

Fig 3: Mode 6 Data For Tacoma V6 (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
