Fog Light Assembly: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

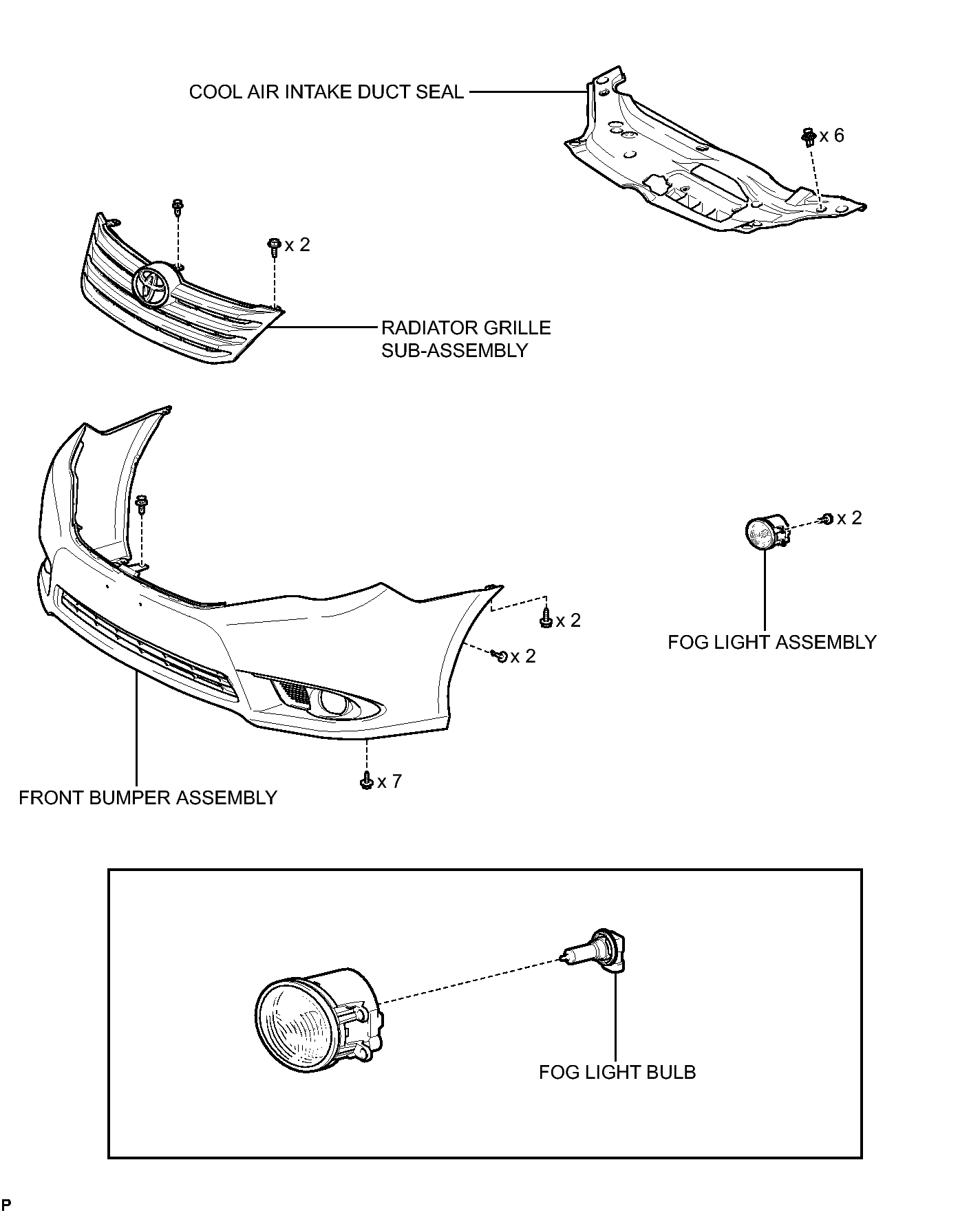

Fig 1: Identifying Fog Light Assembly Replacement Components
GTY306674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
