Service Data

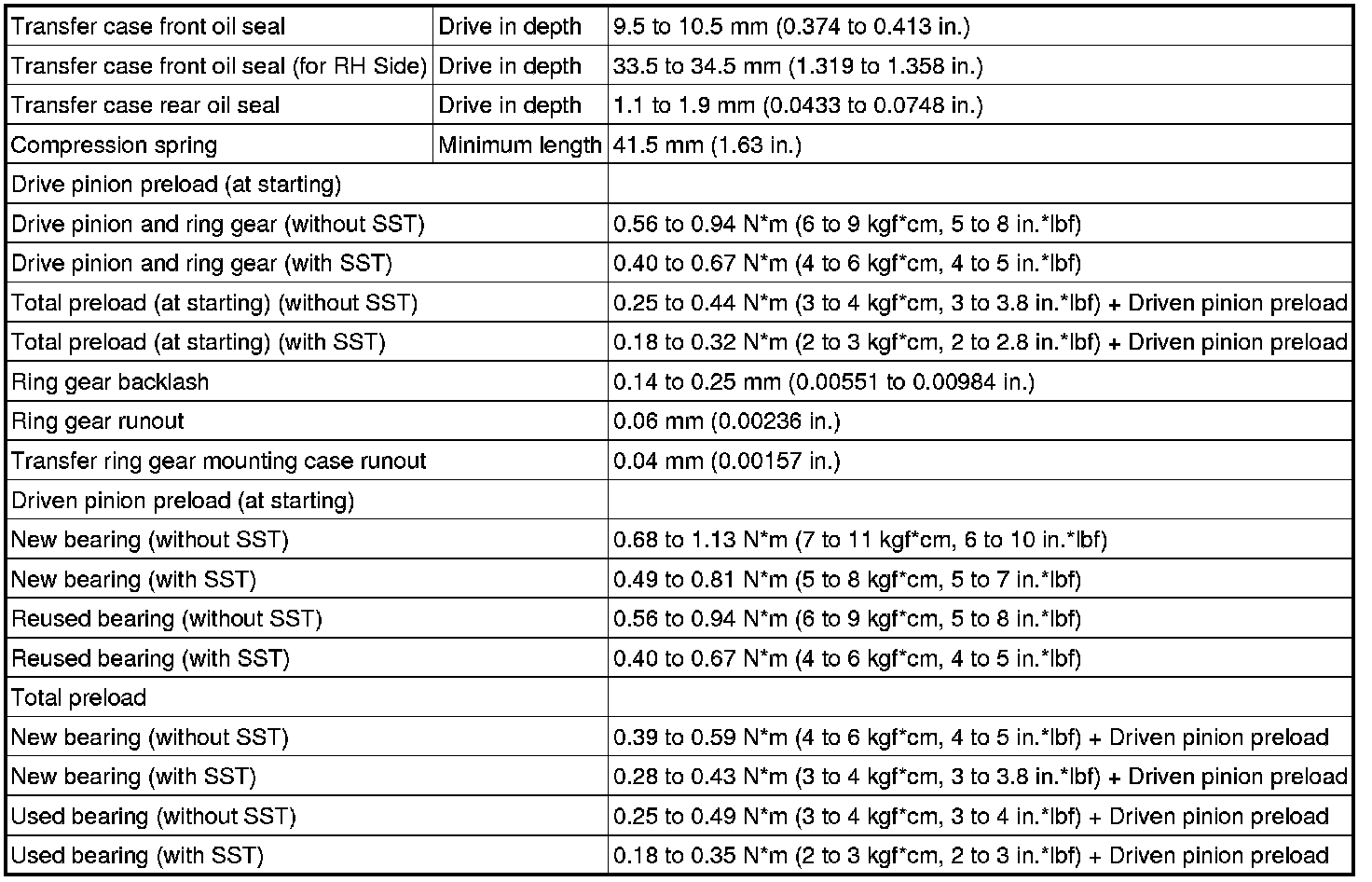

SPECIFICATIONS: MF1A TRANSFER / 4WD / AWD: SERVICE DATA





Thrust Washer Thickness (Backlash Adjust)









Thrust Washer Thickness (Tooth Adjust)





Thrust Washer Thickness (Preload Adjust)
