Timing Cover

TIMING CHAIN OR BELT COVER SUB-ASSEMBLY

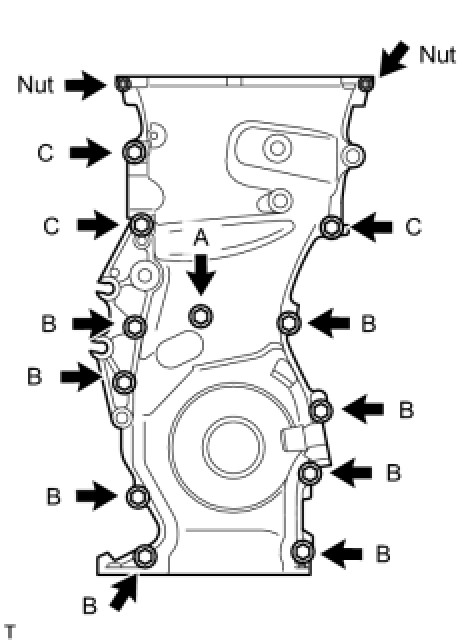

Temporarily install the timing chain cover with the 12 bolts and 2 nuts.

Bolt Length:

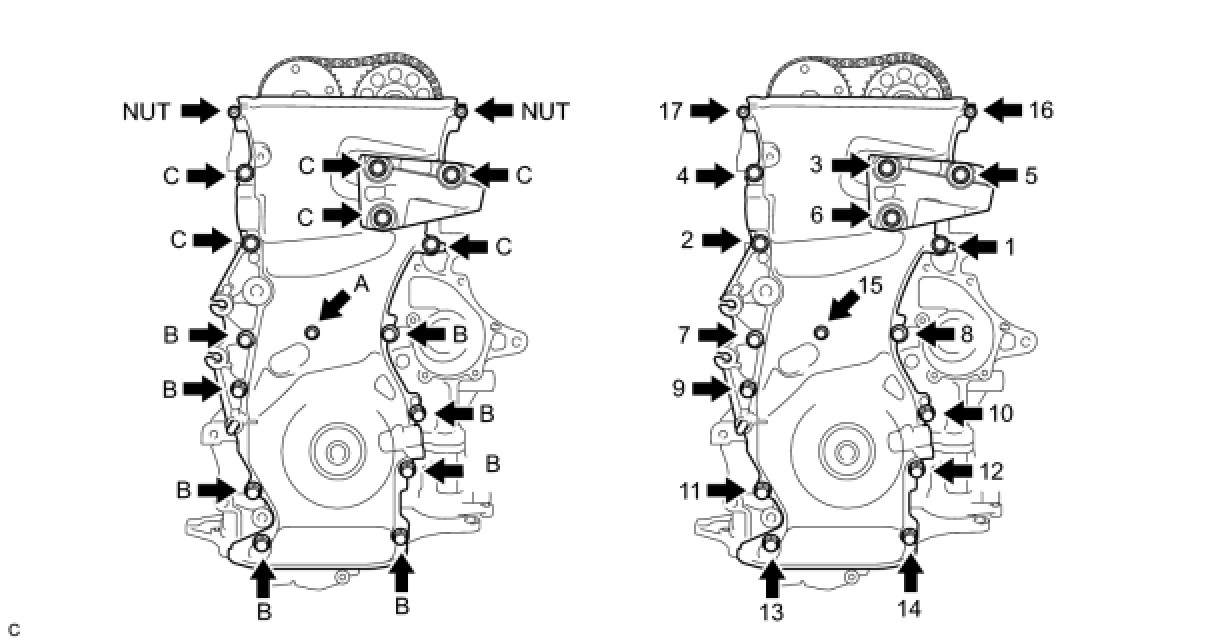

Fully tighten the timing chain cover with the 15 bolts and 2 nuts as shown in the illustration.

Bolt A - Torque 9.0 Nm (92 kgf-cm, 80 in-lbf)

Bolt B - Torque 25 Nm (255 kgf-cm, 18 ft-lbf)

Bolt C - Torque 55 Nm (561 kgf-cm, 41 ft-lbf)

Nut - Torque 11 Nm (112 kgf-cm, 8 ft-lbf)
