Fuse Block

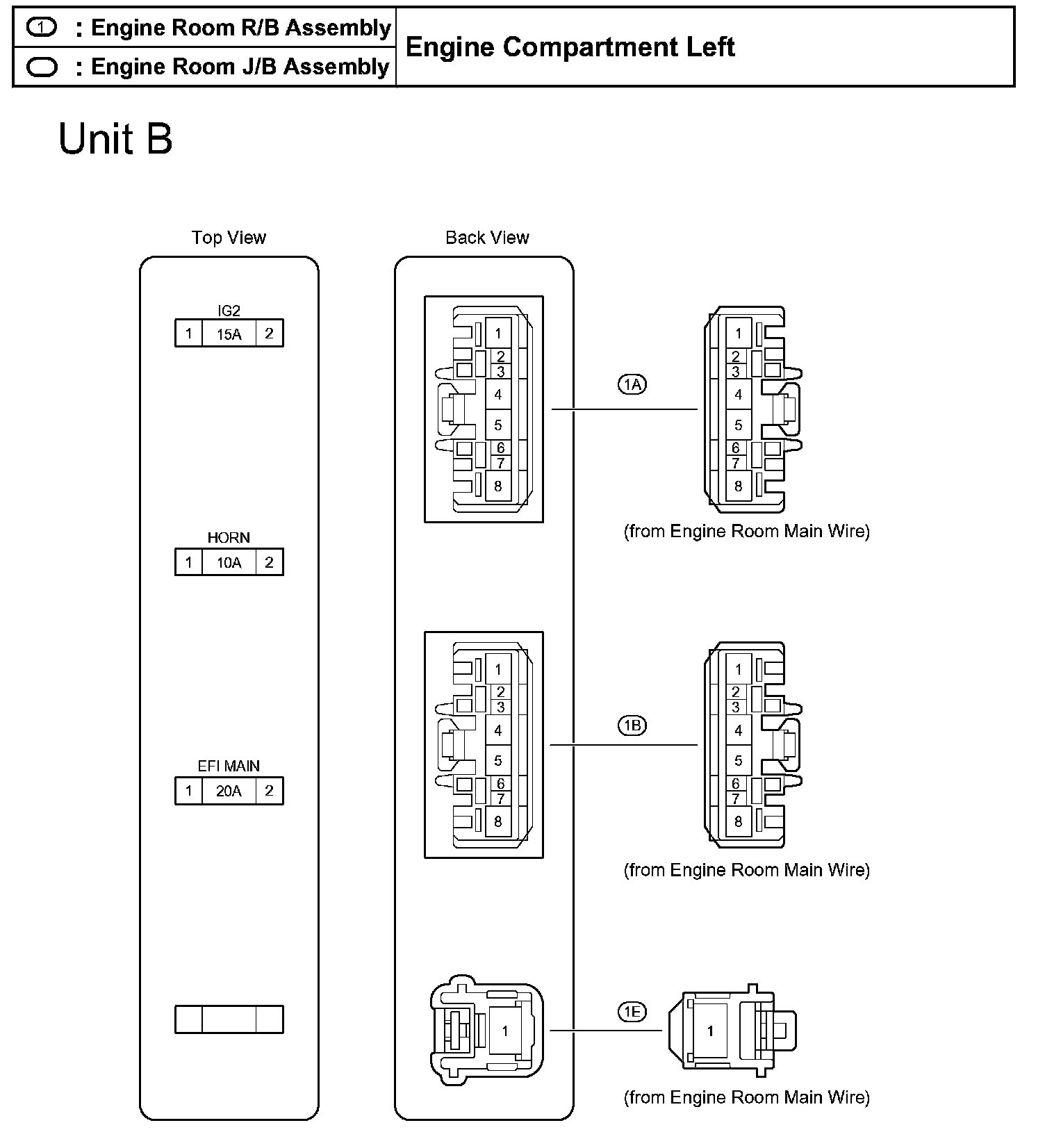

Engine Room R/B, J/B Assembly - Engine Compartment Left:

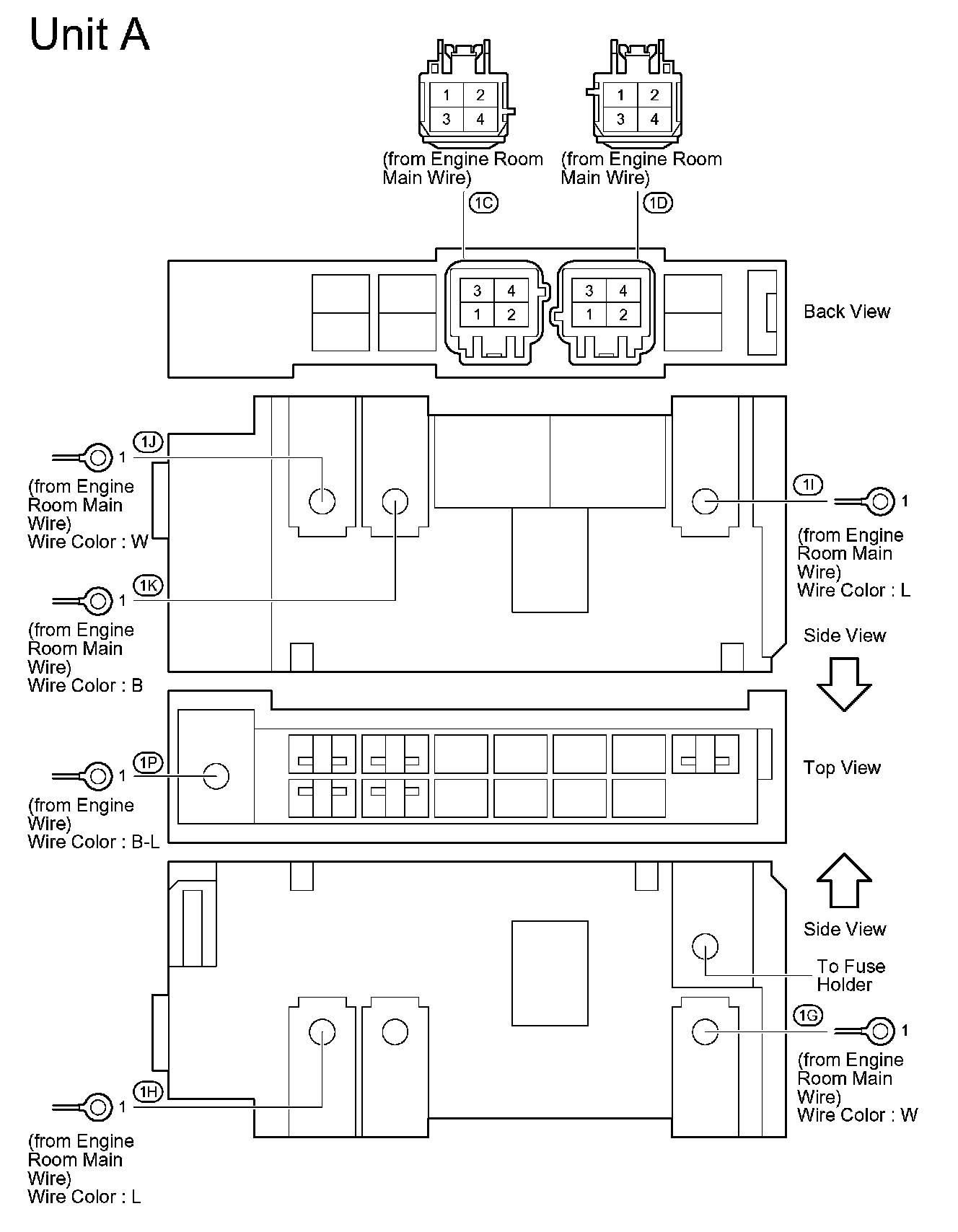

Engine Room R/B, J/B Assembly - Engine Compartment Left:

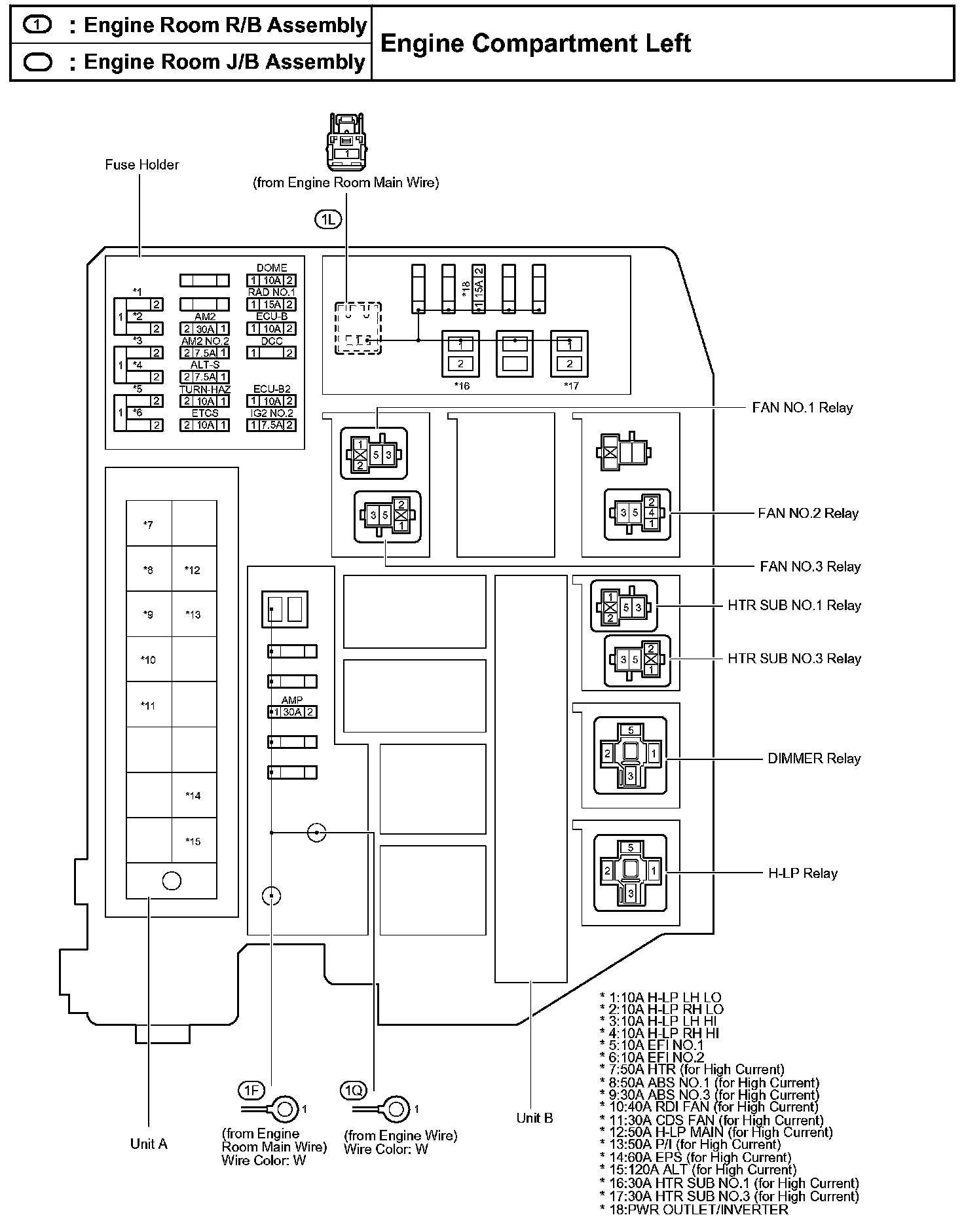

Engine Room R/B, J/B Assembly - Engine Compartment Left:





Driver Side J/B Assembly - Cowl Side Left:





Driver Side J/B Assembly - Cowl Side Left:
