Service Data

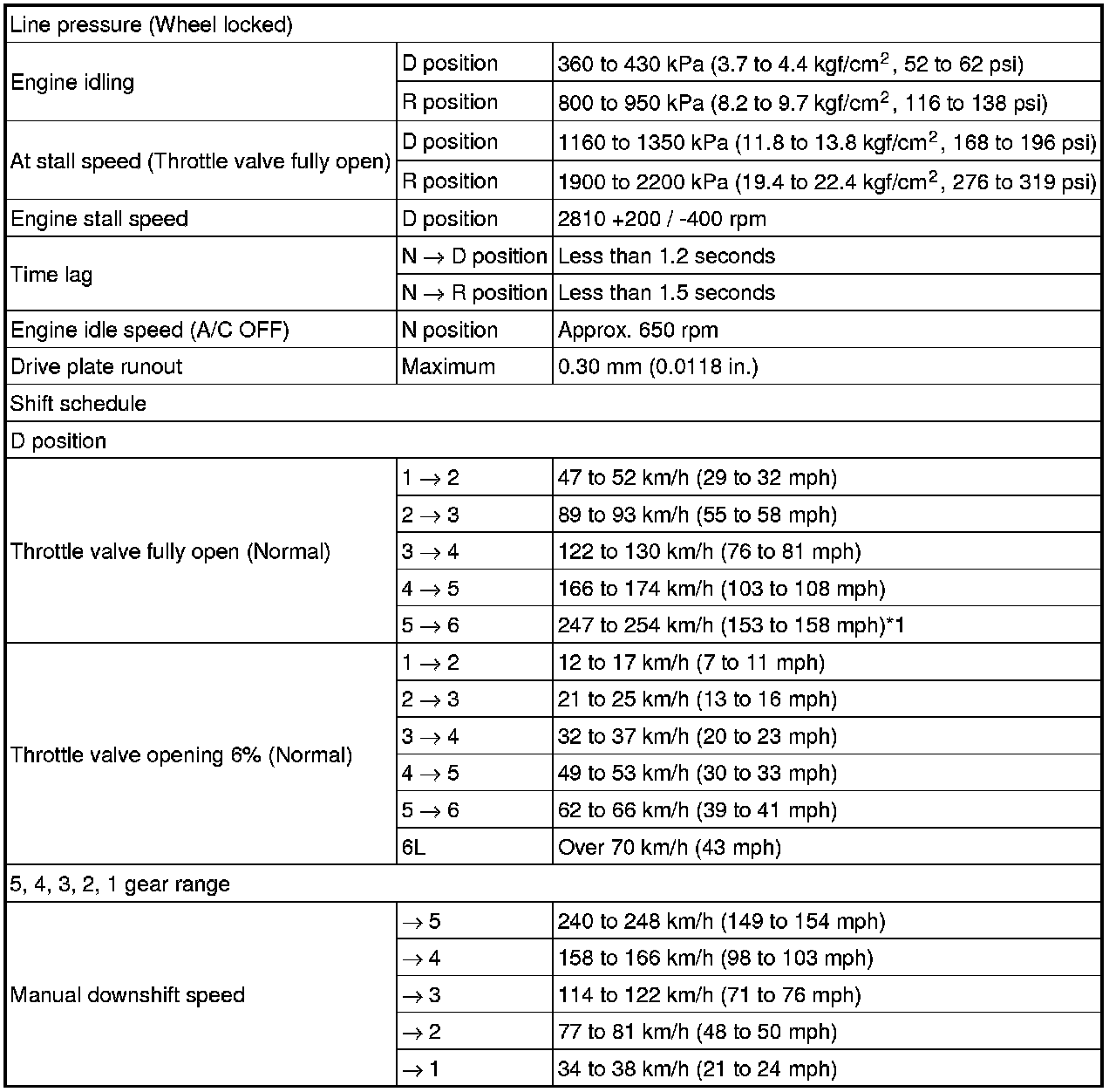

SERVICE SPECIFICATIONS: U760E AUTOMATIC TRANSAXLE: SERVICE DATA






*1: Speed Limiter Active

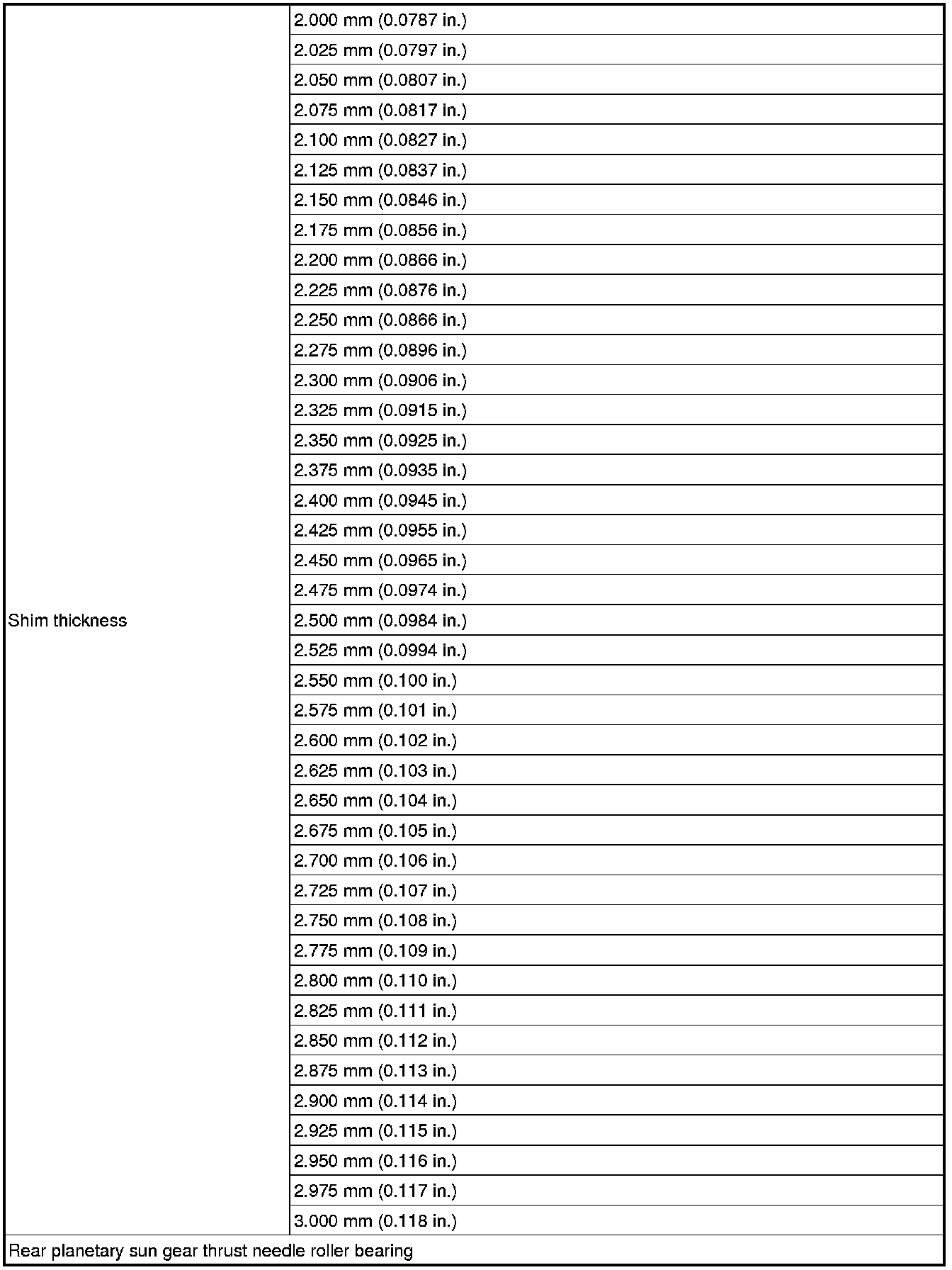

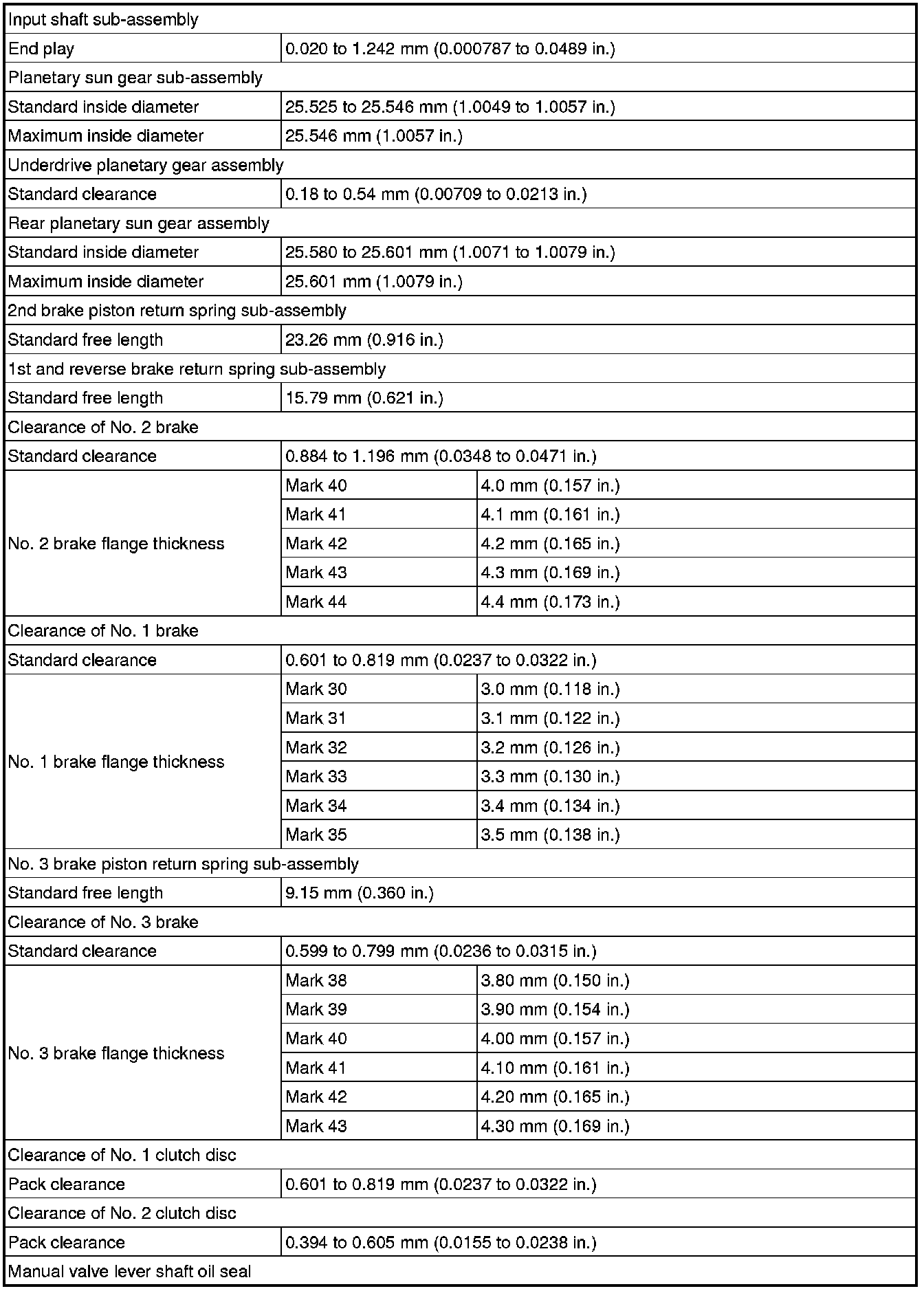

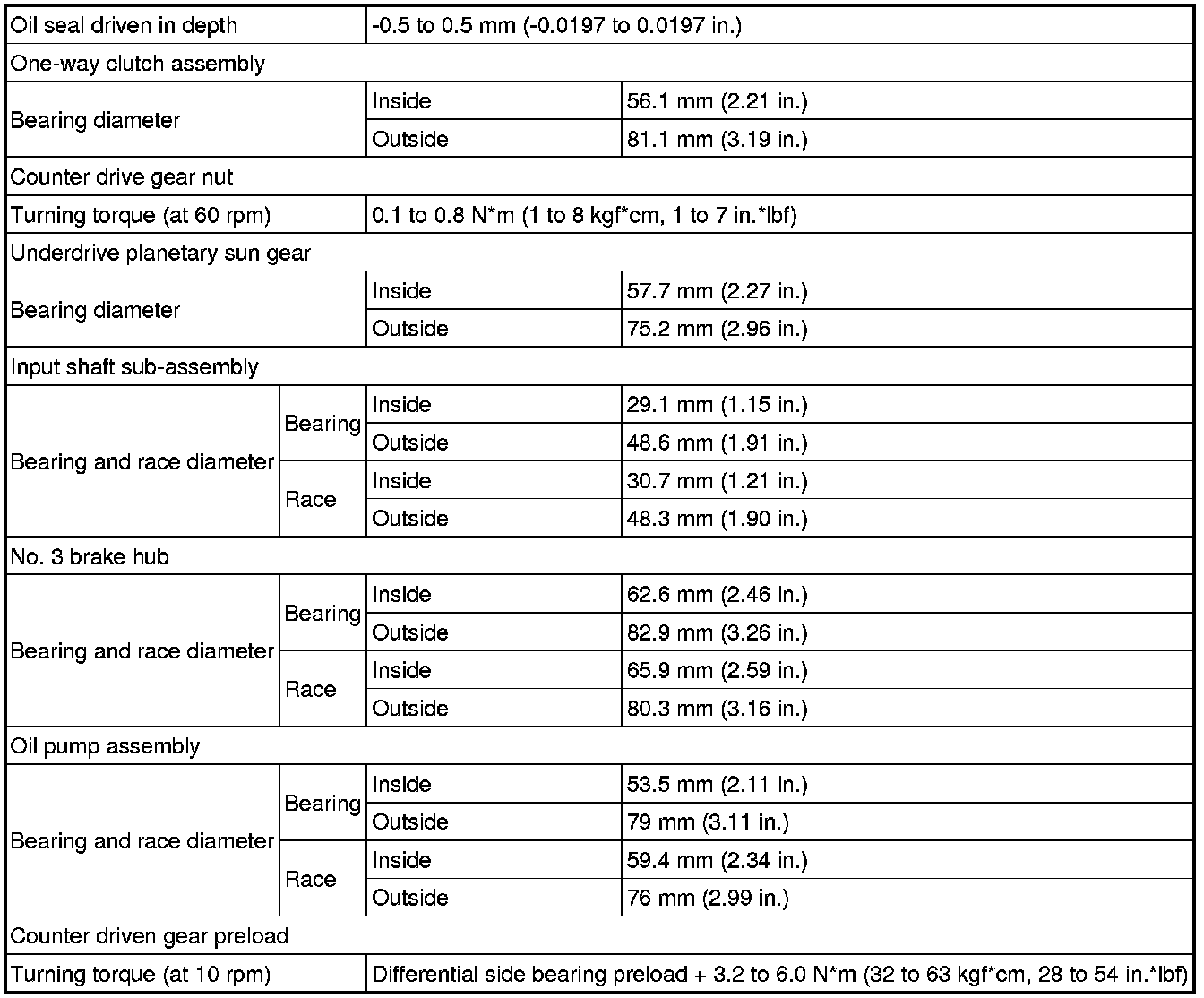

Automatic Transaxle Unit

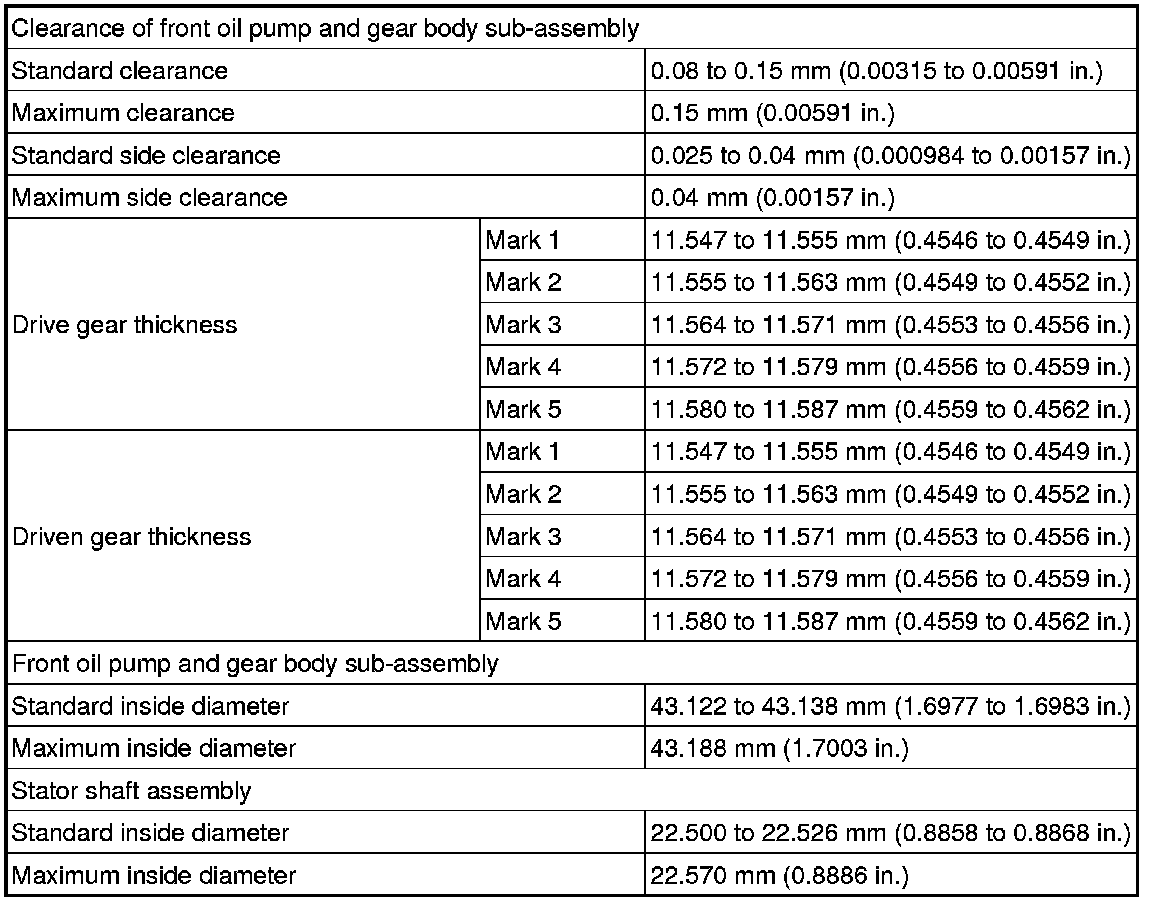

Oil Pump

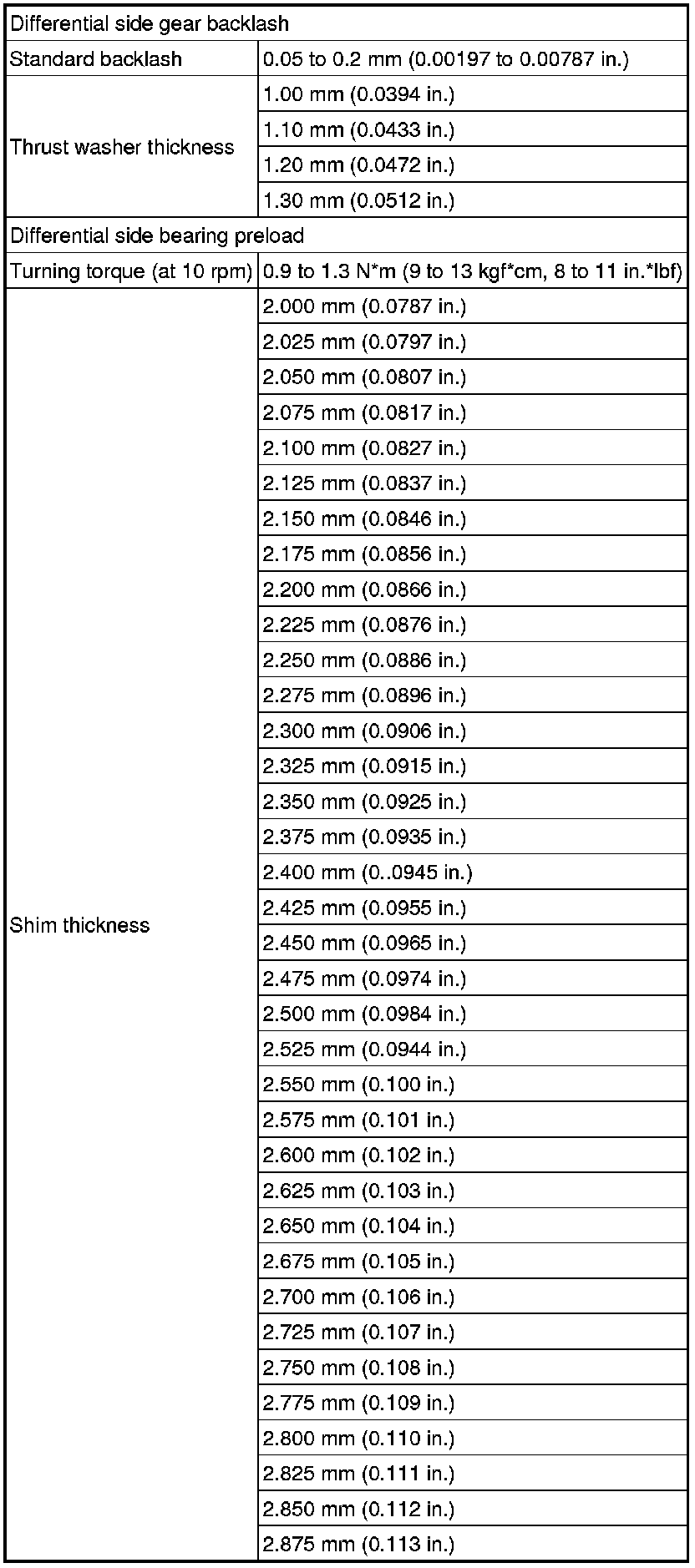

Differential Case
