Fuse Block

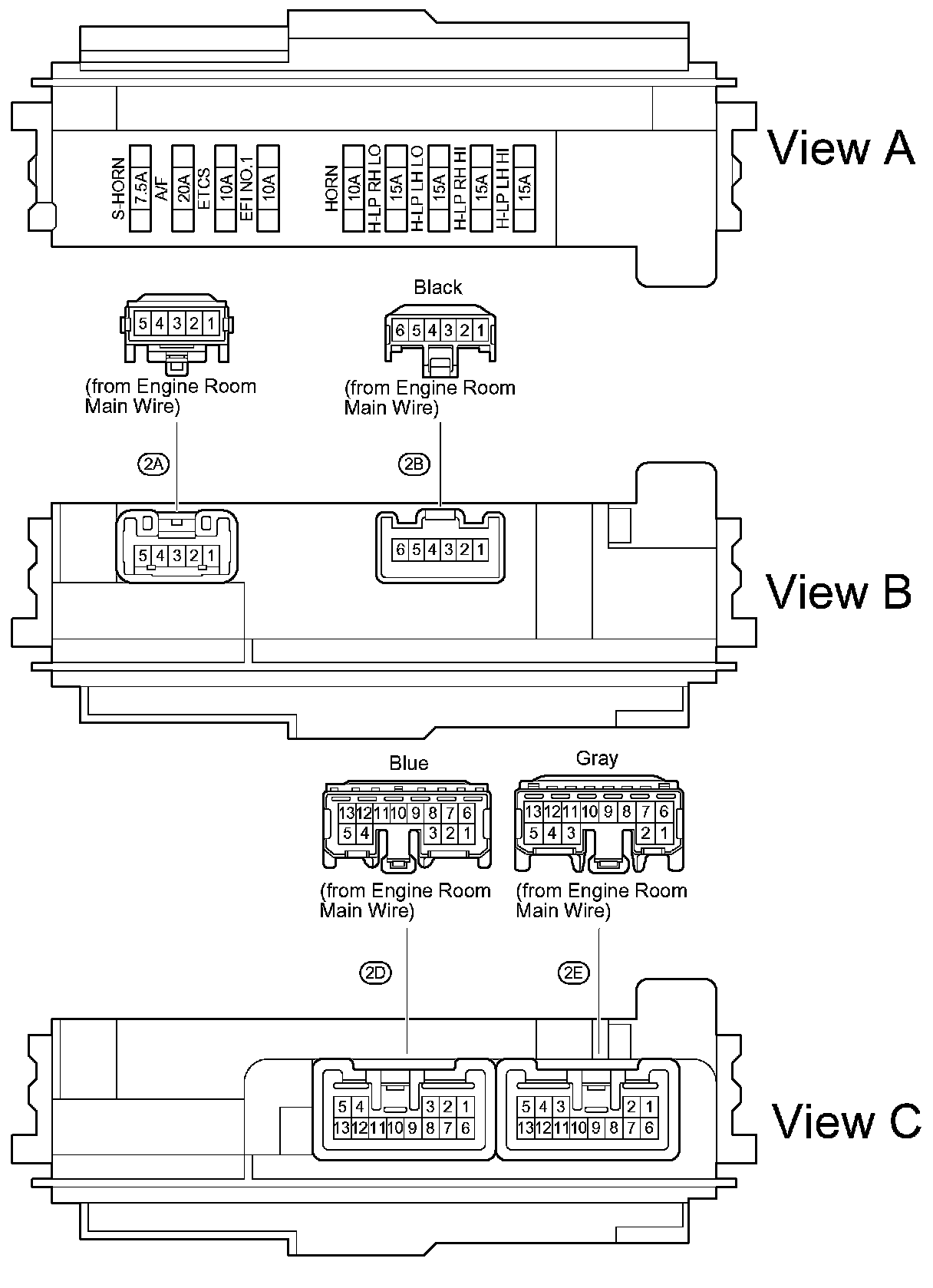

Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:

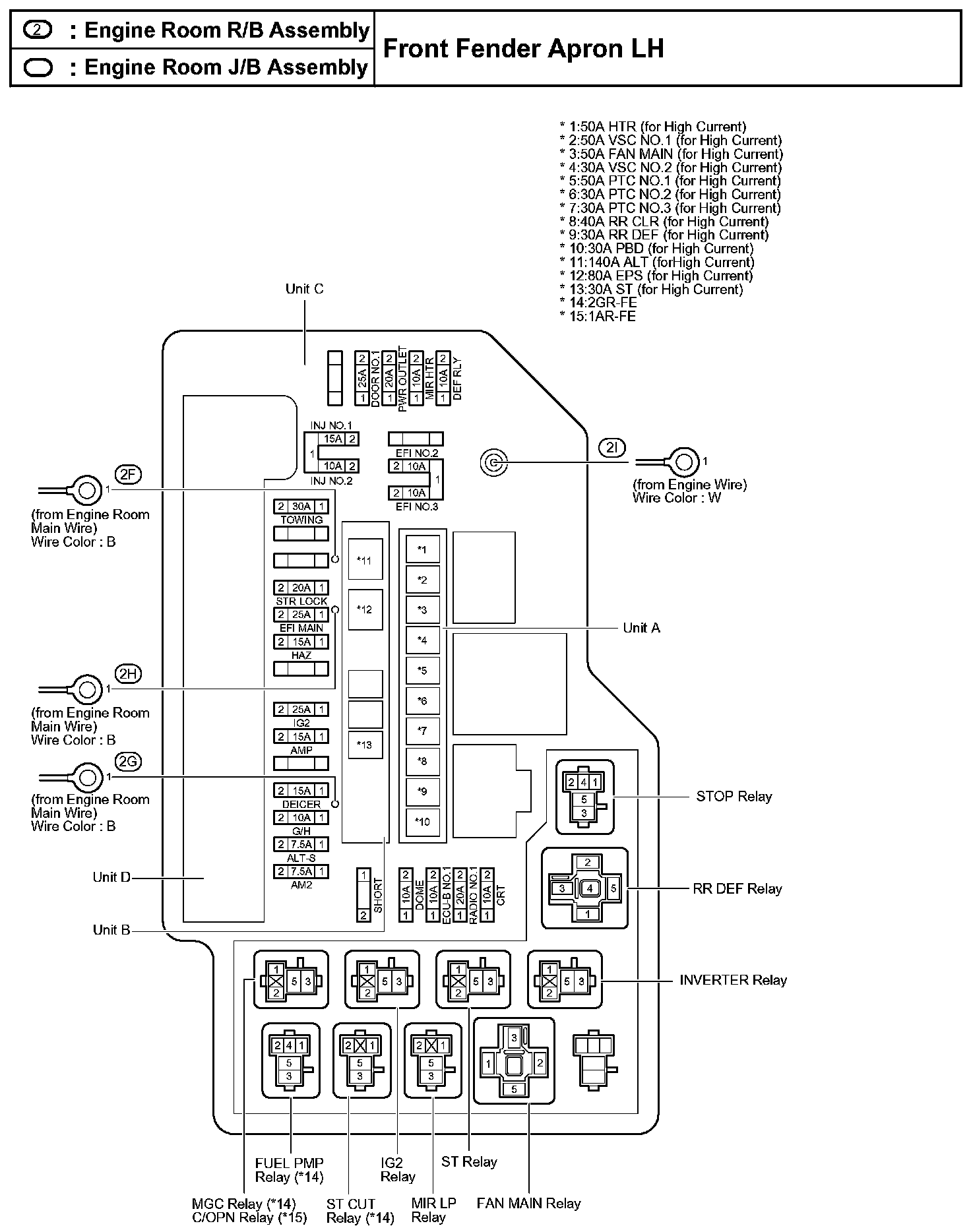

Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:





Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:

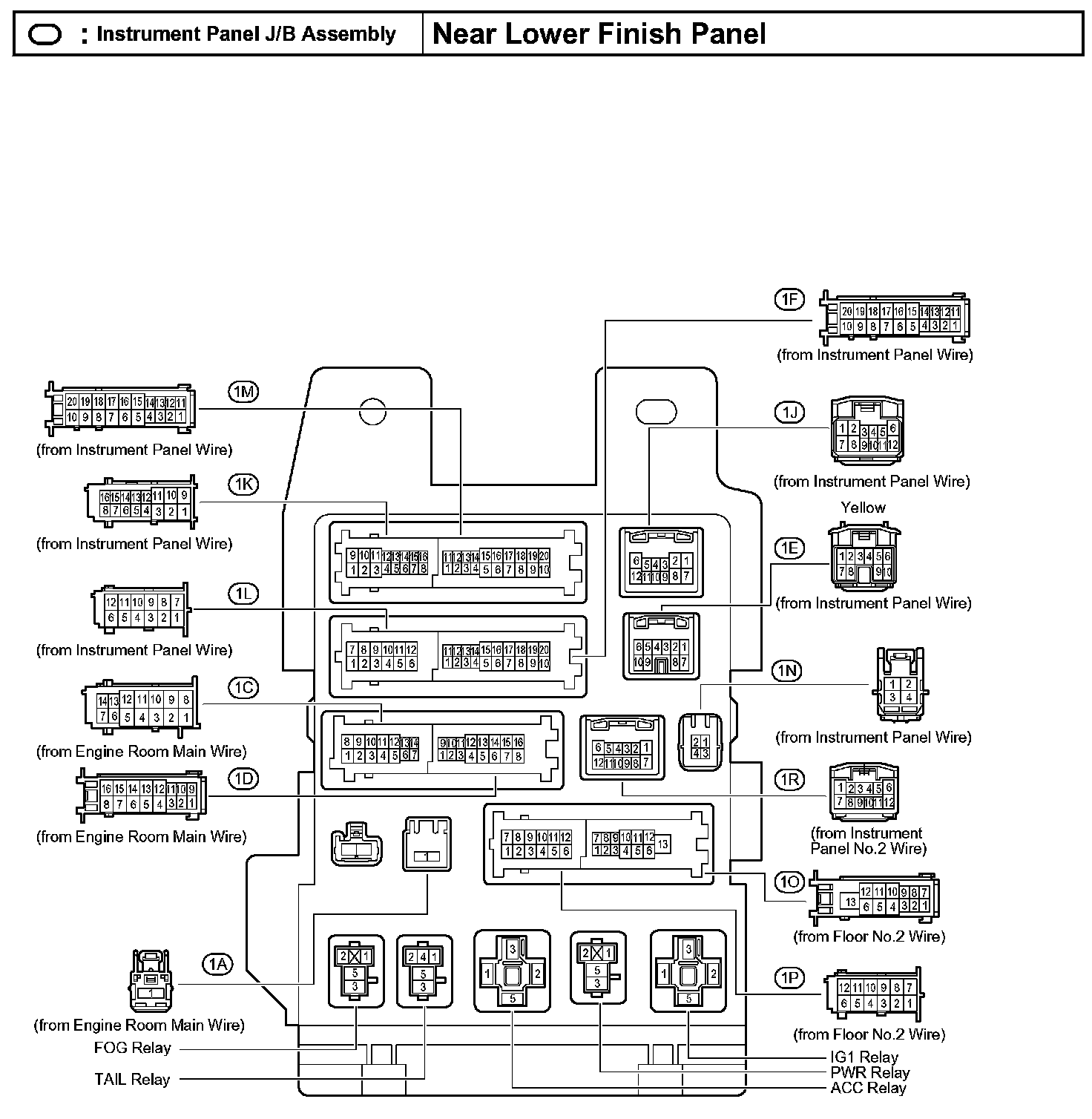

Instrument Panel J/B Assembly - Near Lower Finish Panel:





Instrument Panel J/B Assembly - Near Lower Finish Panel:





Junction Connector (CAN) - Roof Side Inner Panel LH:
