Fuse Block

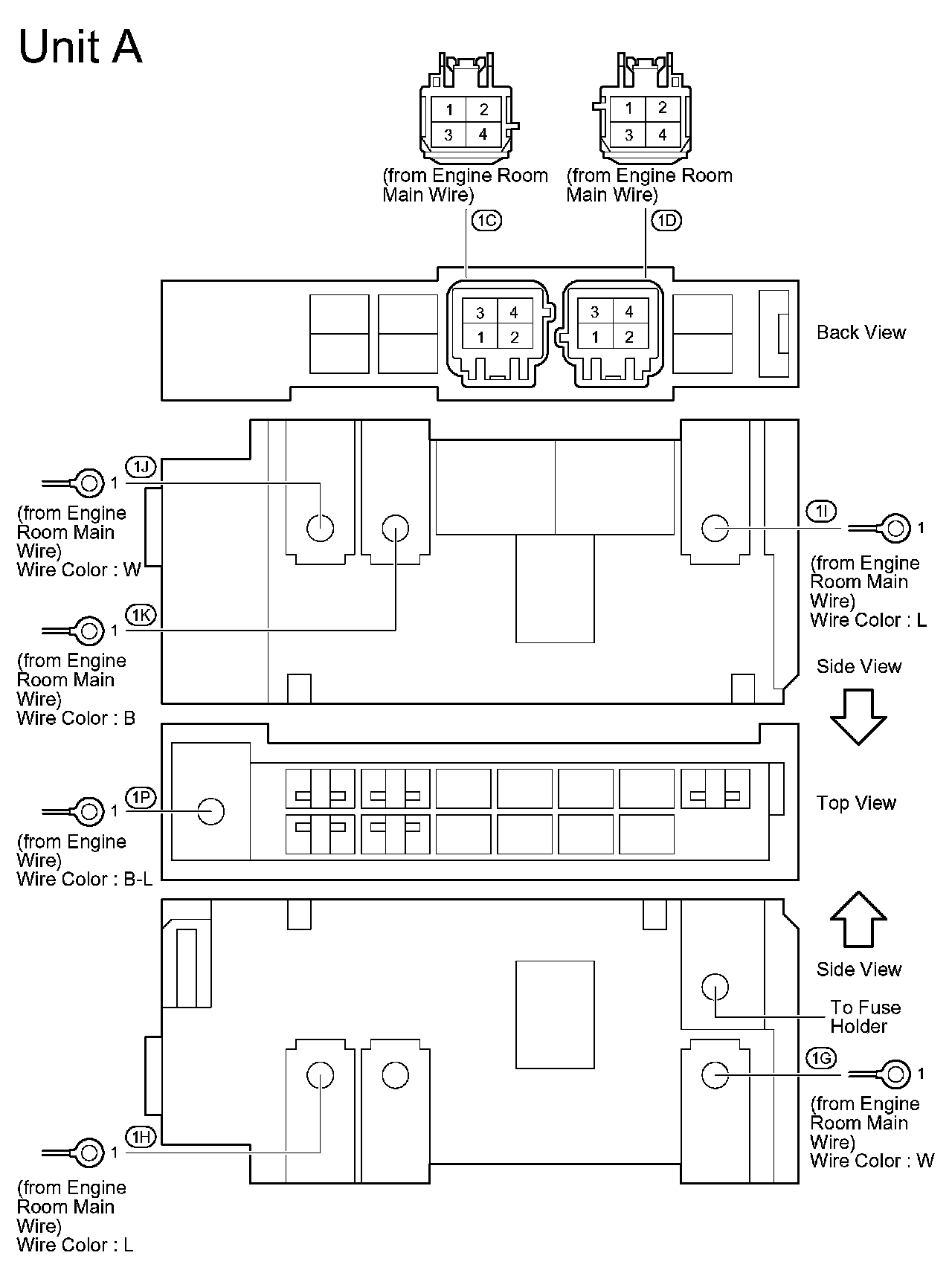

Engine Room R/B, J/B - Engine Compartment Left:

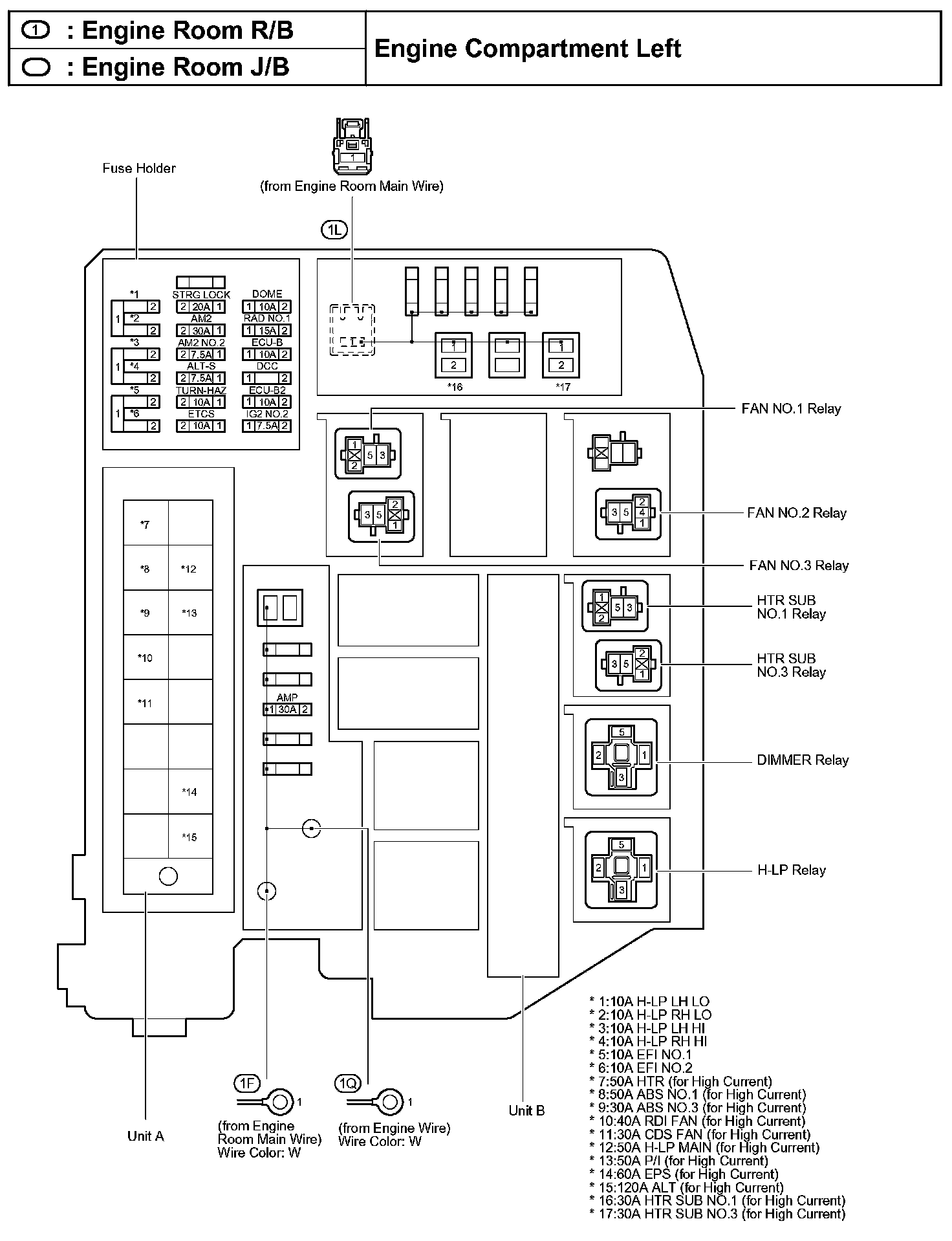

Engine Room R/B, J/B - Engine Compartment Left:

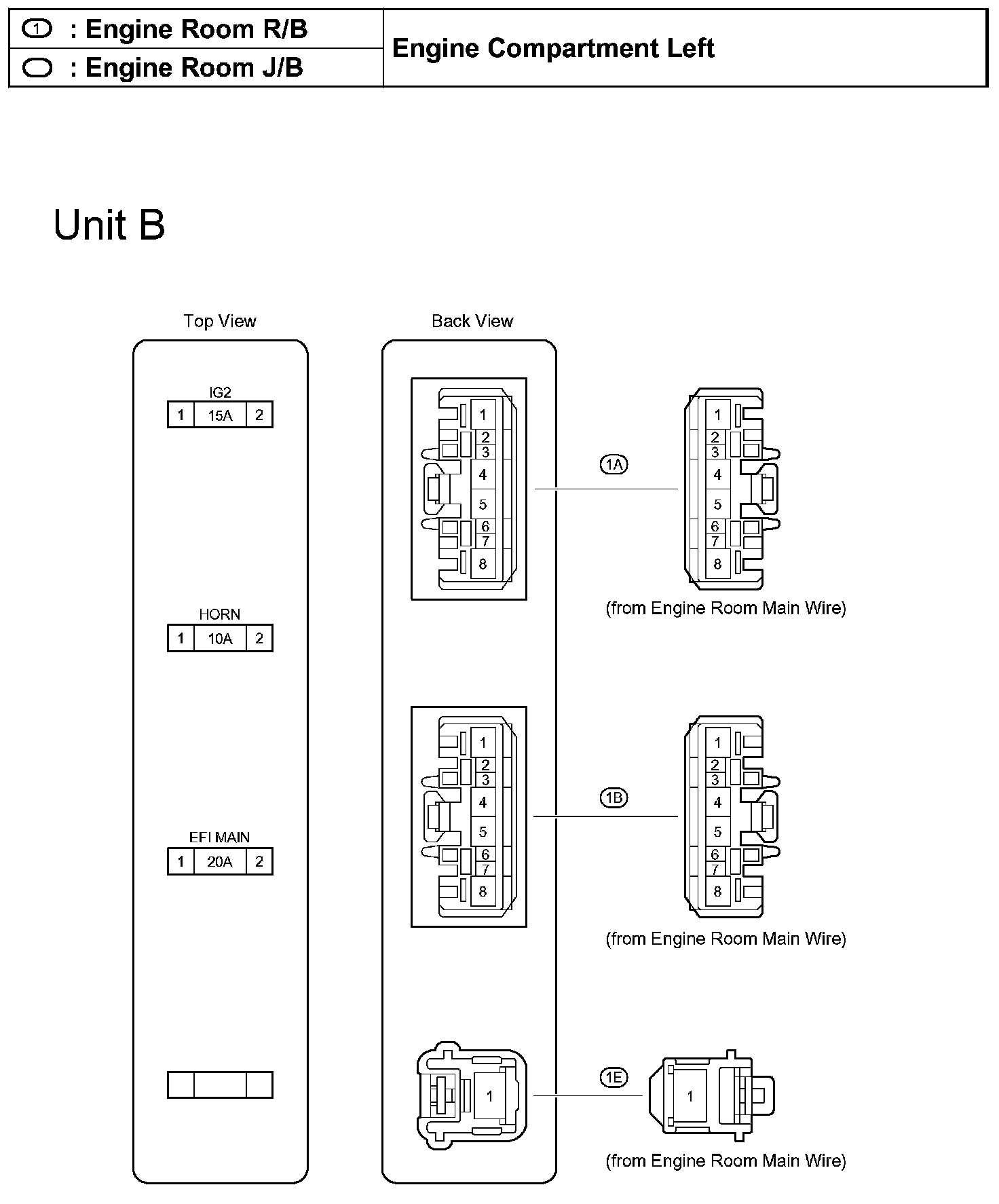

Engine Room R/B, J/B - Engine Compartment Left:

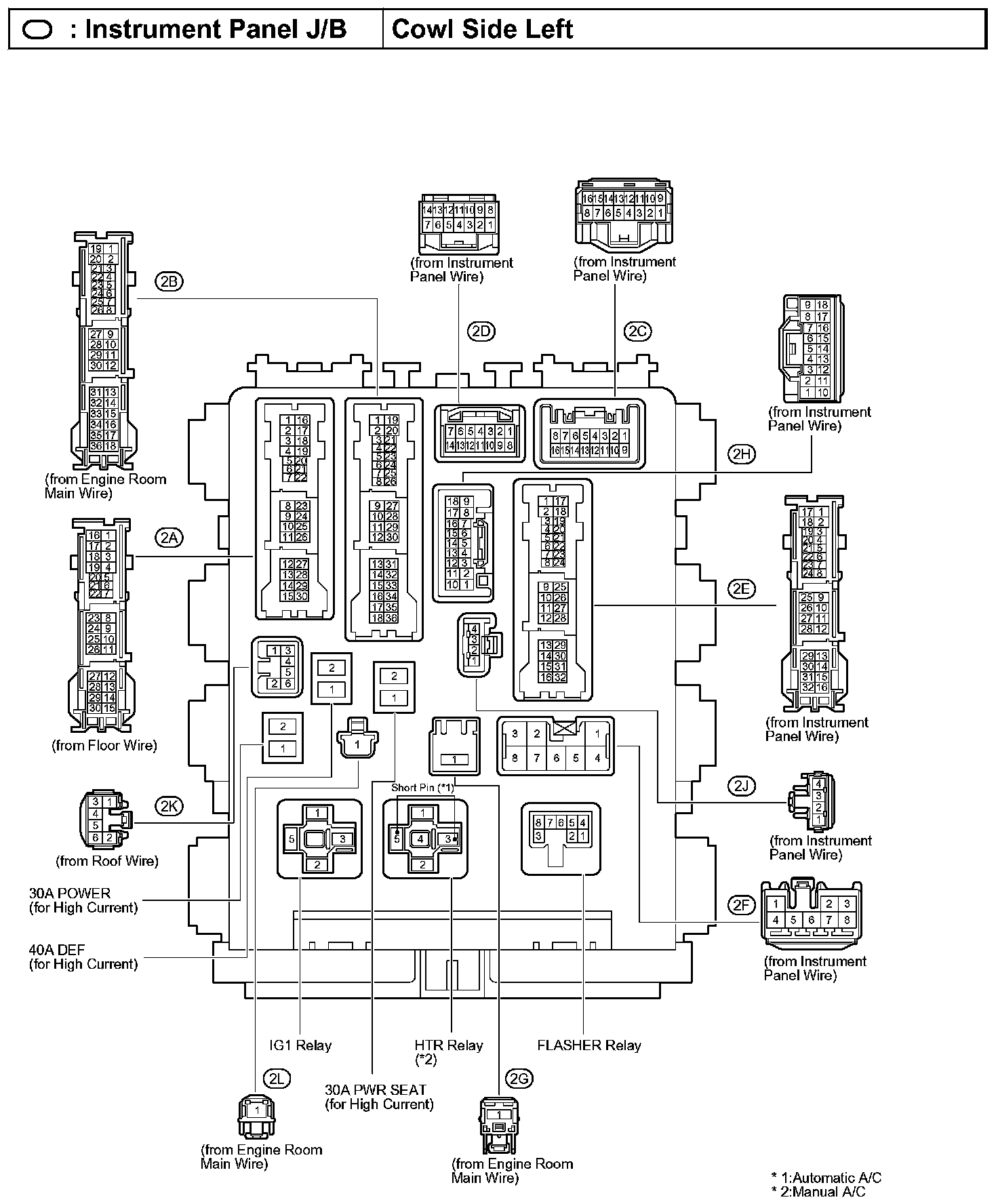

Instrument Panel J/B - Cowl Side Left:





Instrument Panel J/B - Cowl Side Left:

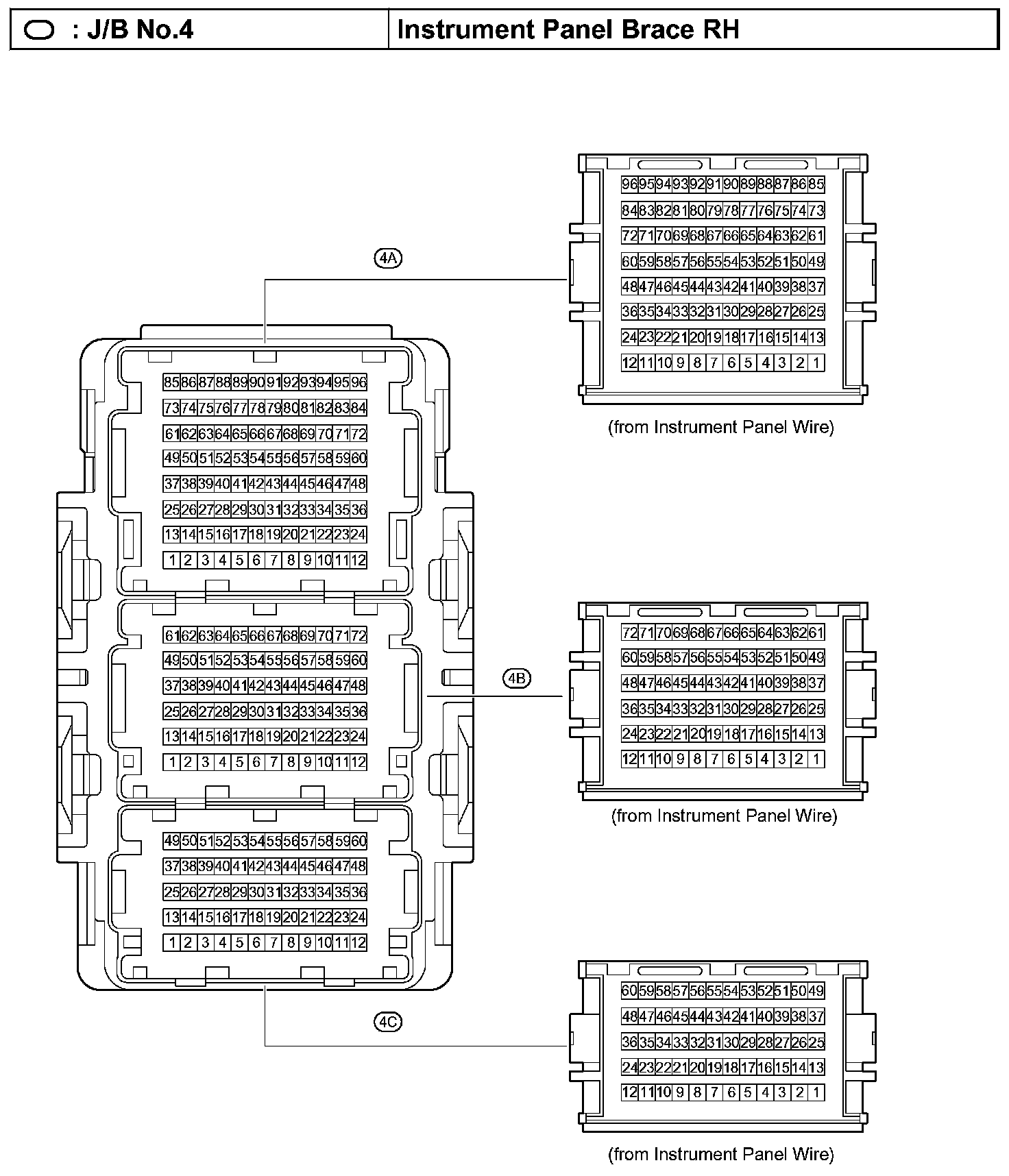

J/B No.4 - Instrument Panel Brace RH:
