Removal

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE LOWER NO. 3 STEERING WHEEL COVER (w/o Front Spoiler) Removal

3. REMOVE LOWER NO. 3 STEERING WHEEL COVER (w/ Front Spoiler) Removal

4. REMOVE LOWER NO. 2 STEERING WHEEL COVER (w/o Front Spoiler) Removal

5. REMOVE LOWER NO. 2 STEERING WHEEL COVER (w/ Front Spoiler) Removal

6. REMOVE STEERING PAD (w/o Front Spoiler) Removal

7. REMOVE STEERING PAD (w/ Front Spoiler) Removal

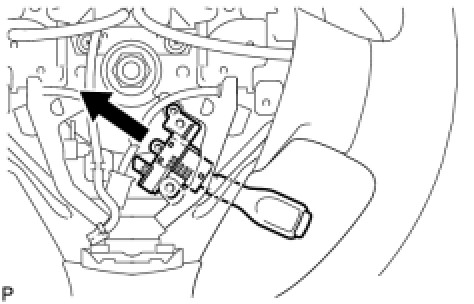

8. REMOVE CRUISE CONTROL MAIN SWITCH

(a) Disconnect the connector.

(b) Remove the 2 screws.
