Cigarette Lighter (TMC Made): Notes

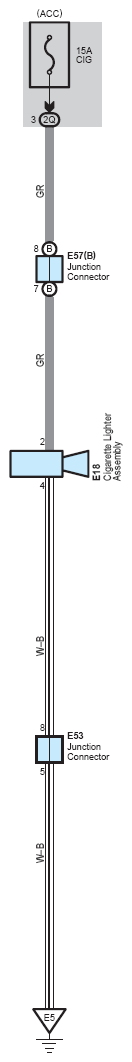

Fig 1: Cigarette Lighter (TMC Made) System Wiring Diagram
G07115061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
