Toyota
>>
2011
>>
Avalon Limited
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System (Inspection)
>>
Fuel System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

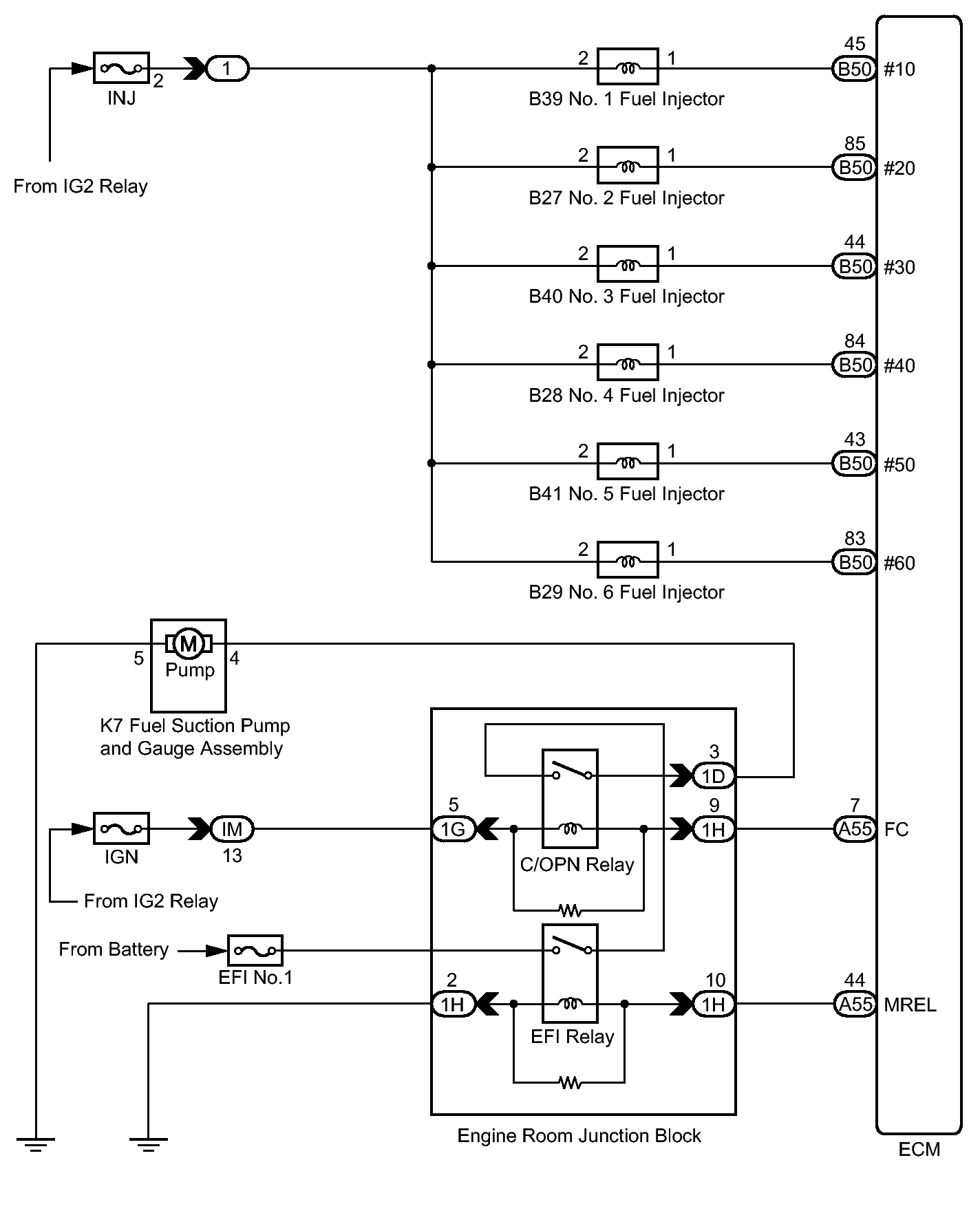

Fig 1: Fuel System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
