Parts Location: Illustration

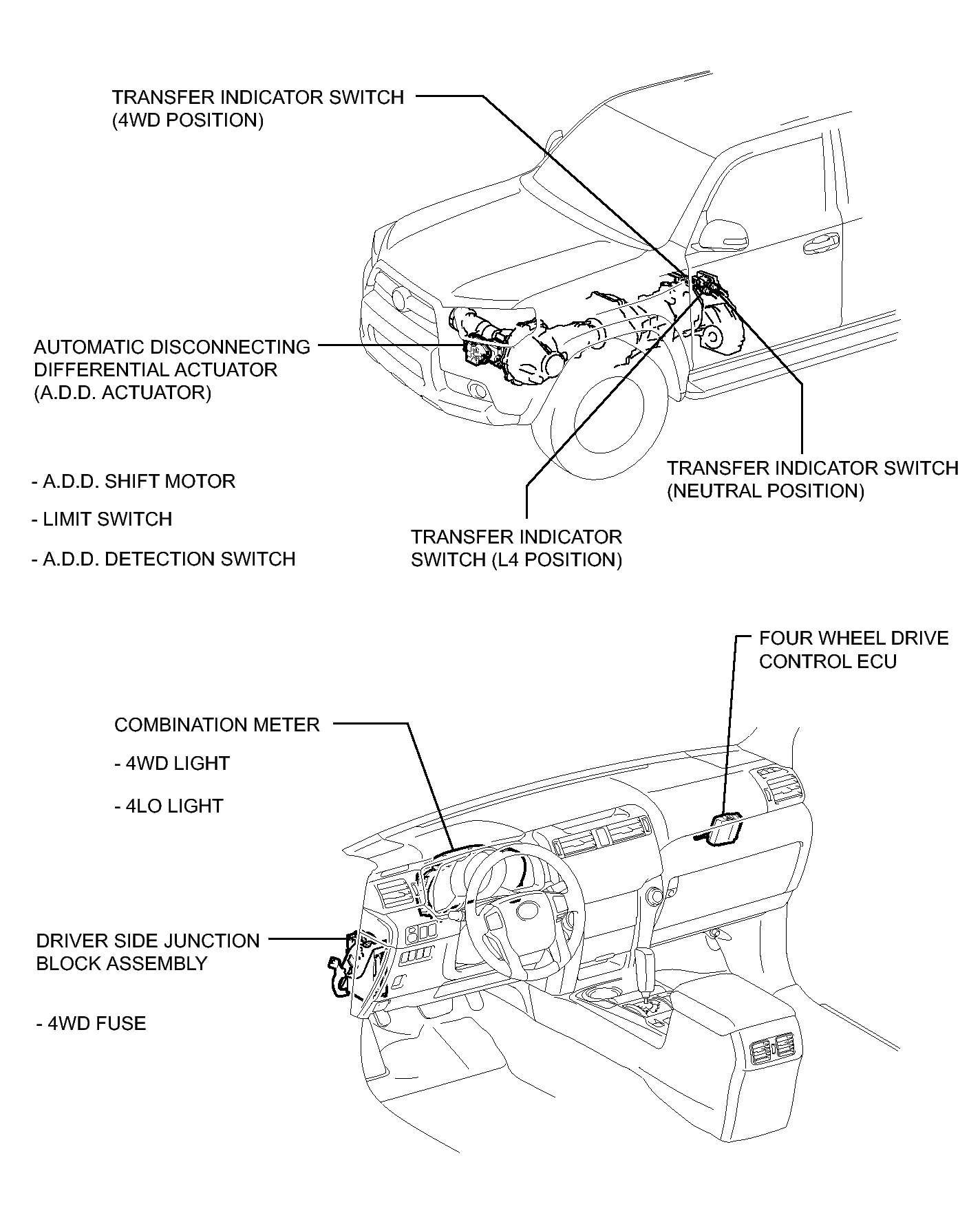

Fig 1: Identifying Transfer Case System Components Location
GTY223111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
