Heated Oxygen Sensor: Components: Illustration

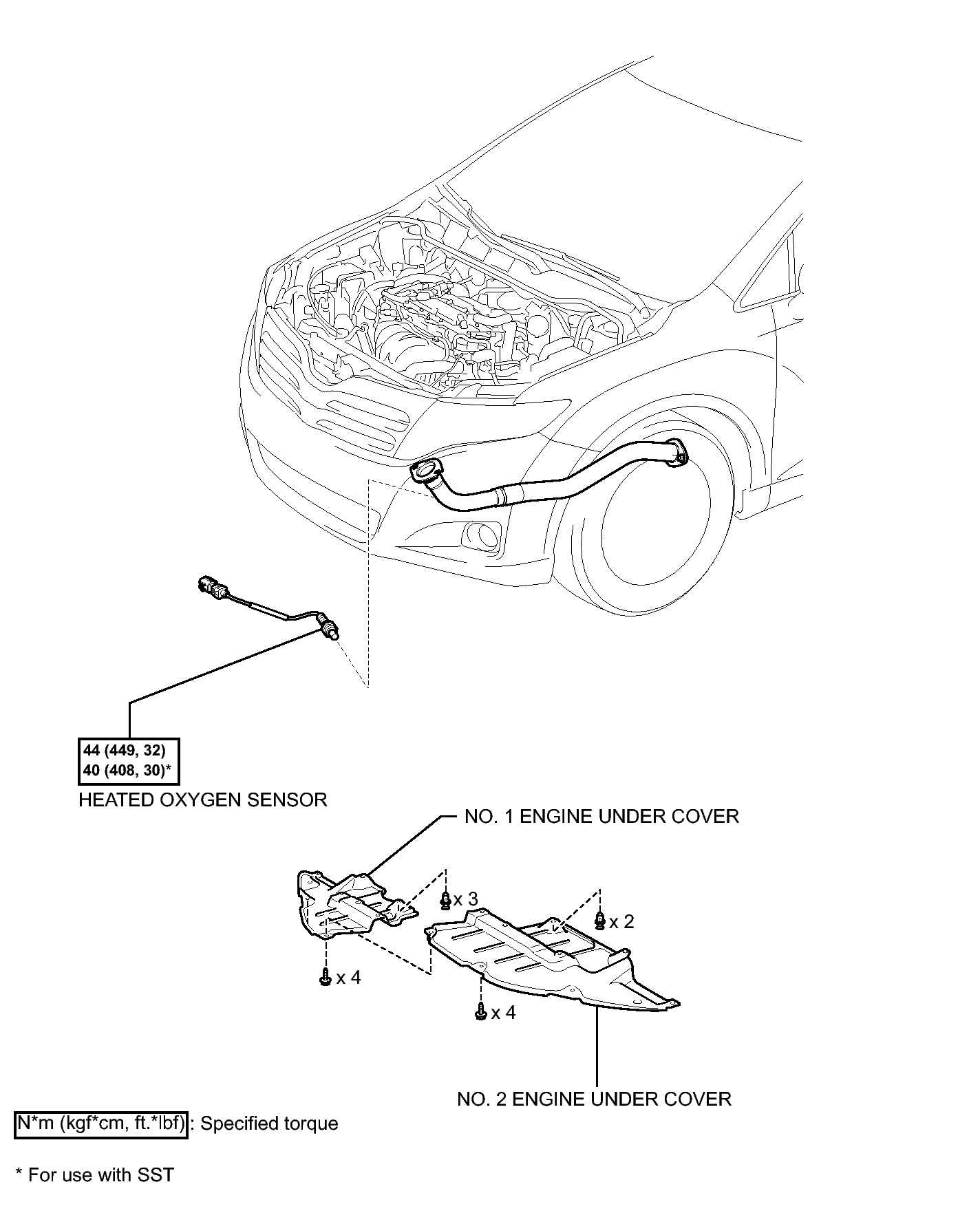

Fig 1: Identifying Heated Oxygen Sensor Replacement Components And Torque Specifications
GTY249223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
