Air Fuel Ratio Sensor: Components: Illustration

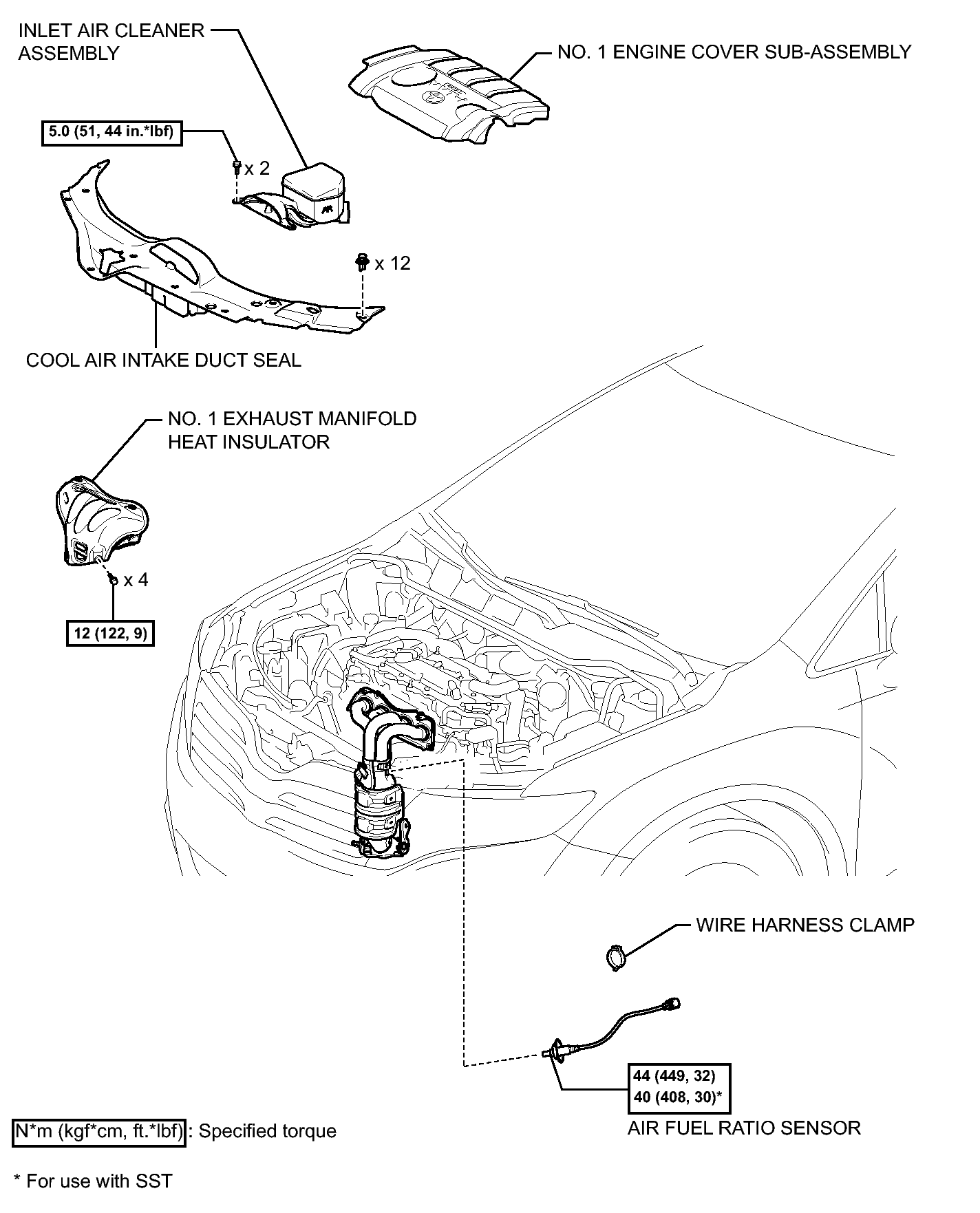

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components And Torque Specifications
GTY251474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
