Camshaft Position Sensor: Components: Illustration

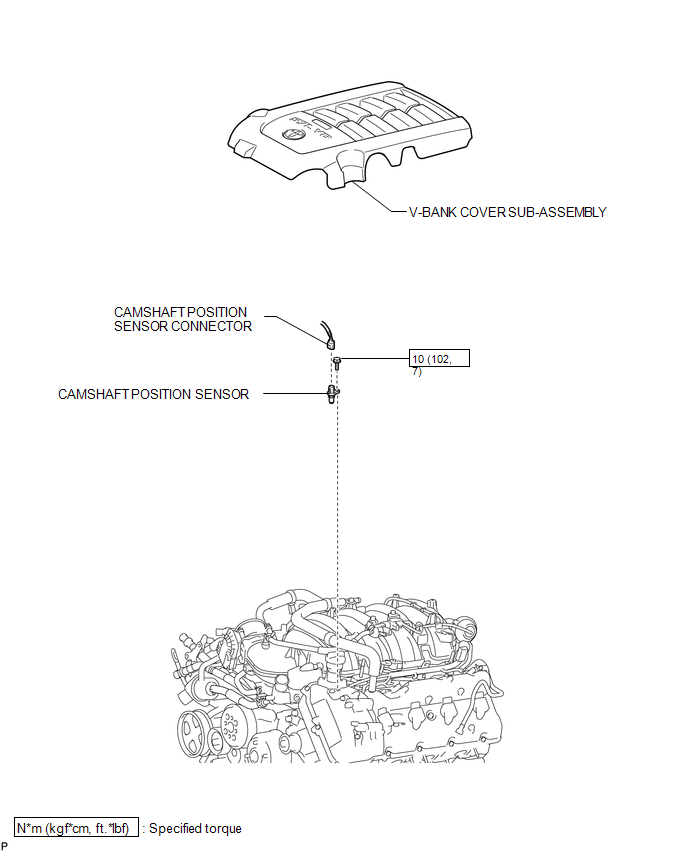

Fig 1: Identifying Camshaft Position Sensor Replacement Components With Torque Specifications
GTY170173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
