Engine Control System (1GR-FE) (Service Information)
>>
Crankshaft Position Sensor
>>
Components
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Crankshaft Position Sensor: Components: Illustration

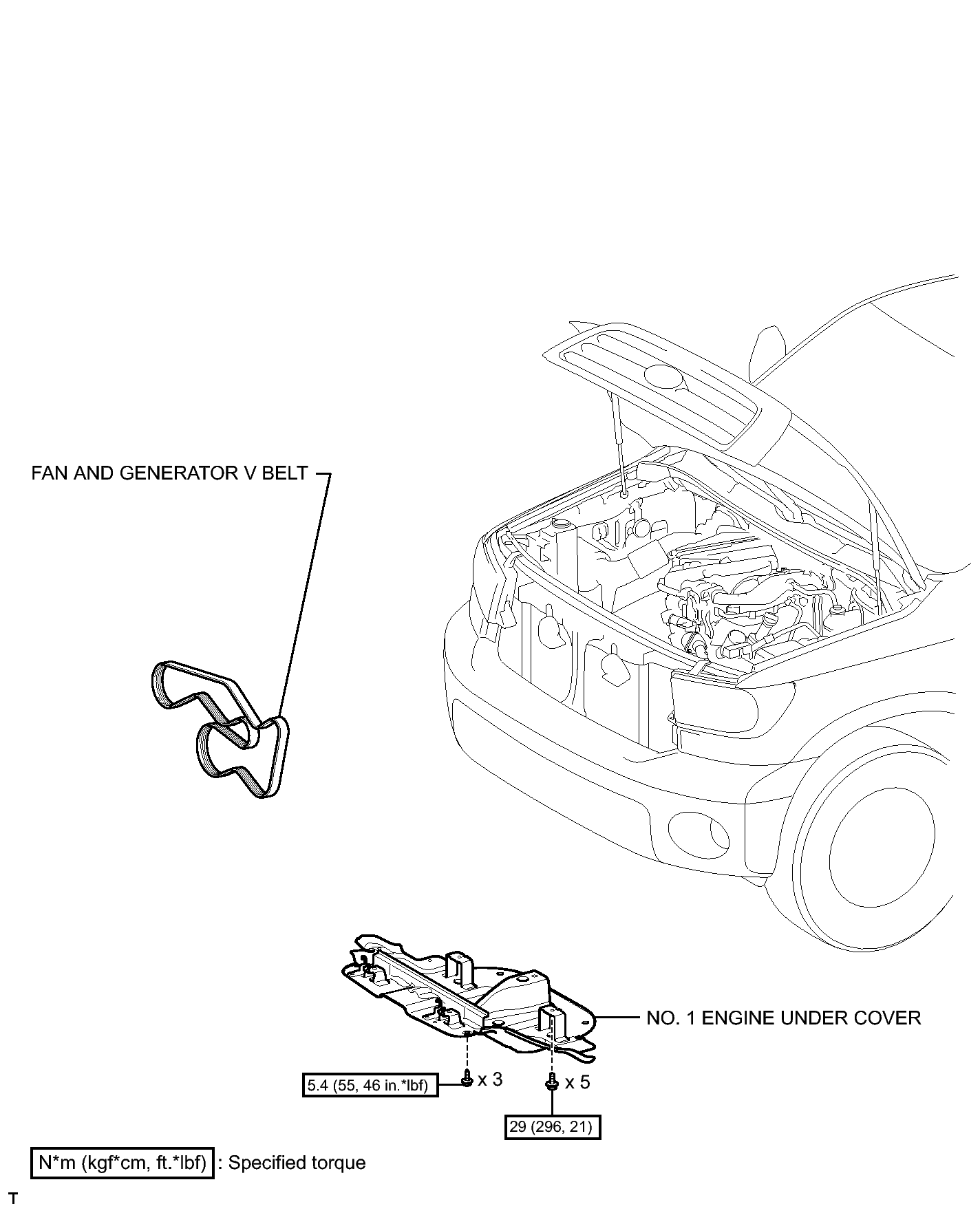

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

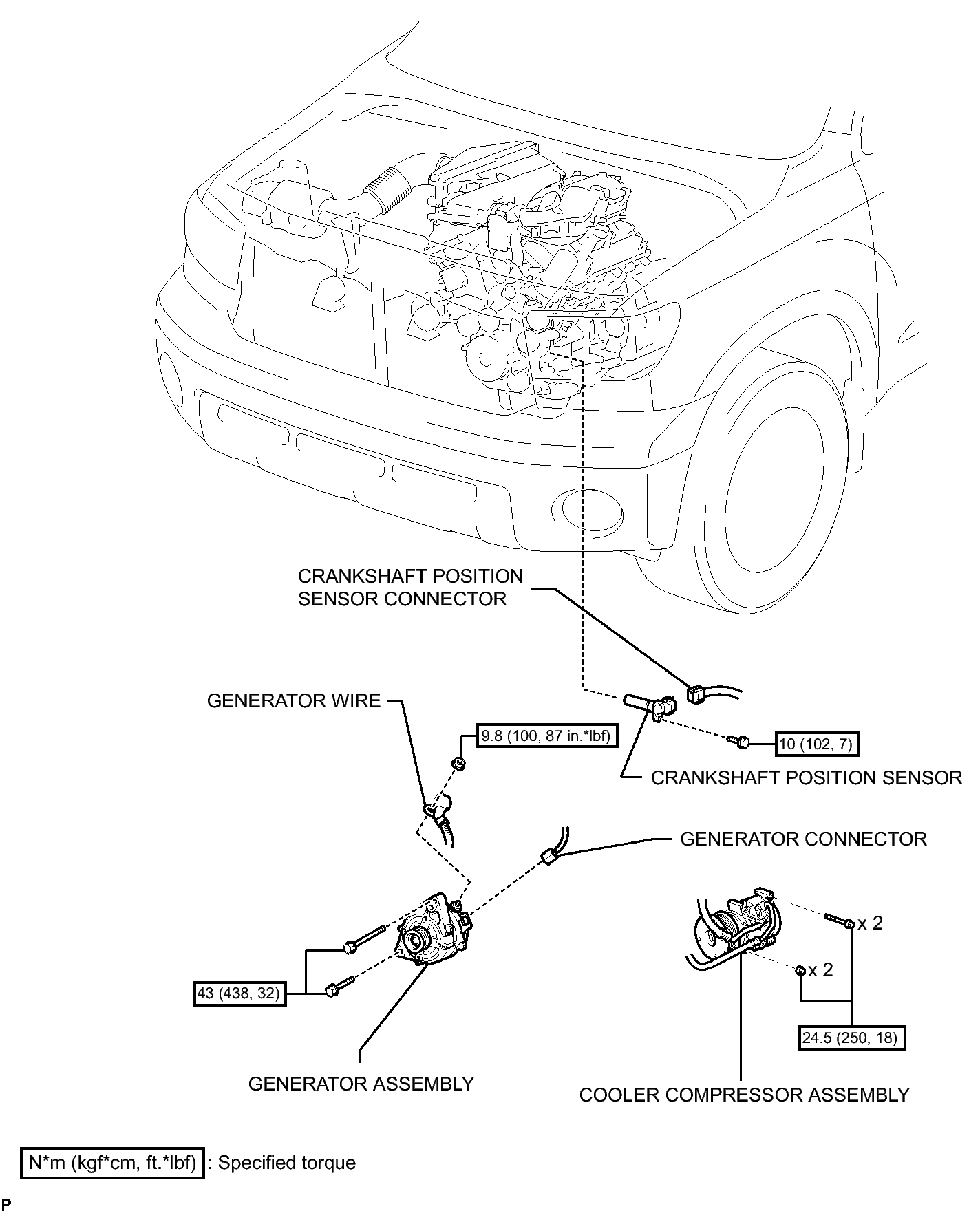

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
