Starting (w/o Smart Key System): Notes

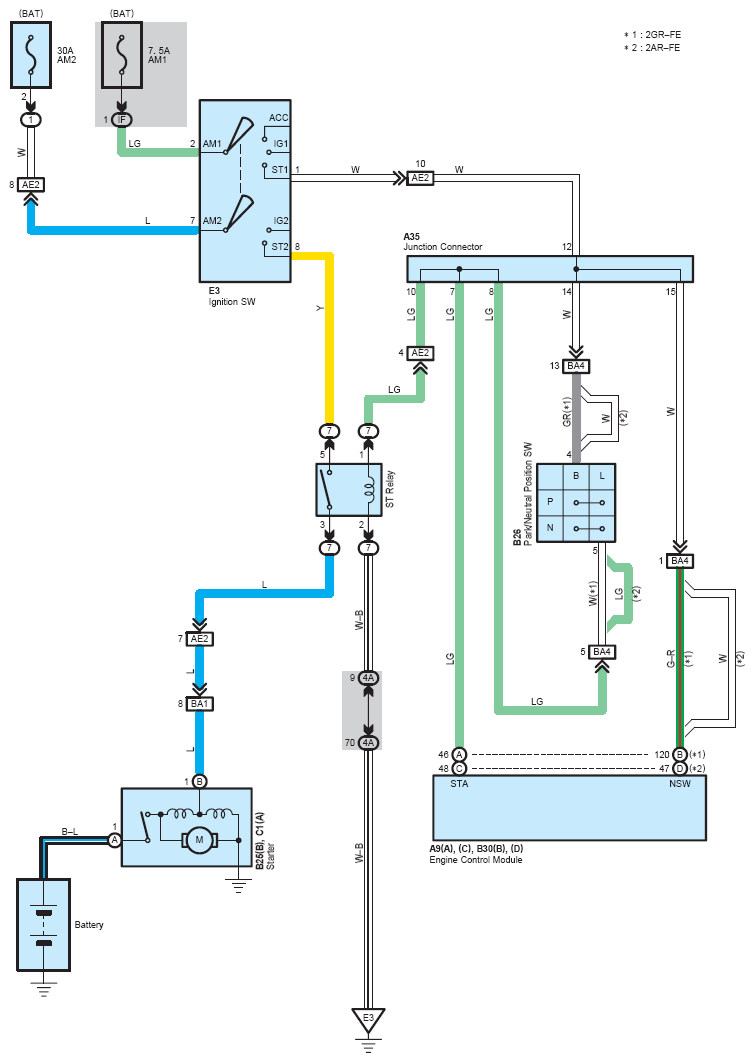

Fig 1: Starting (W/O Smart Key System) - Circuit Diagram
G07557040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
