Headlight Bean Level Control: Notes

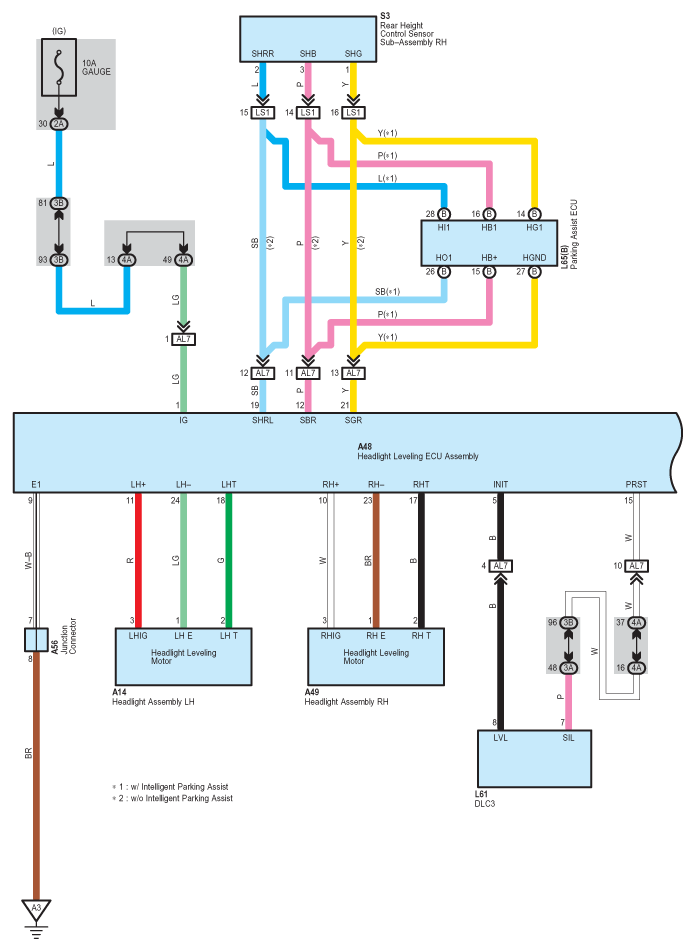

Fig 1: Headlight Bean Level Control - Circuit Diagram (1 Of 5)
G07570759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

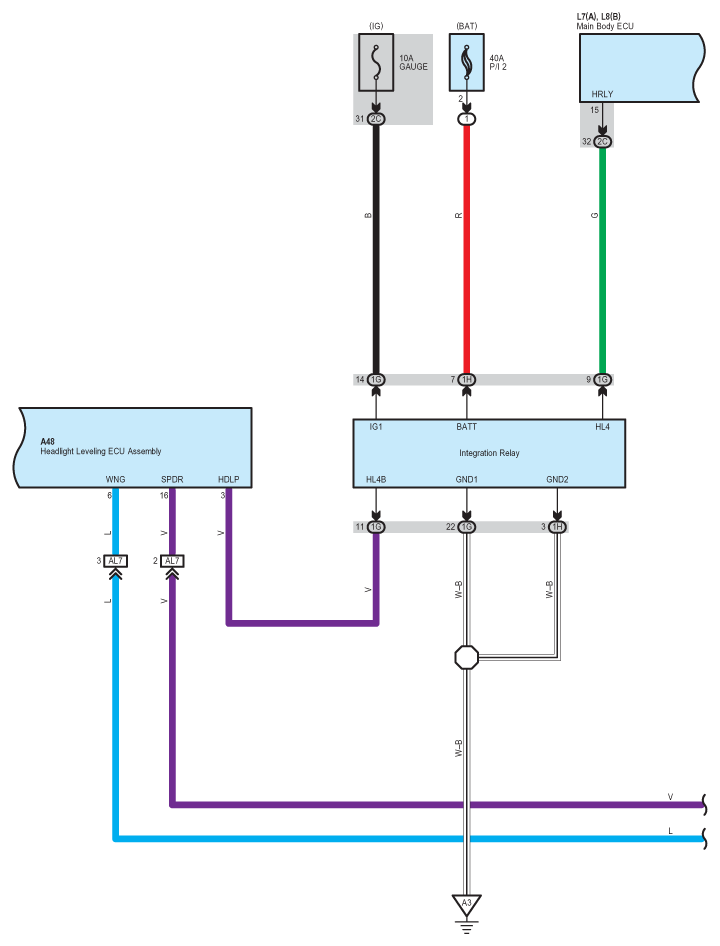

Fig 2: Headlight Bean Level Control - Circuit Diagram (2 Of 5)
G07570760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

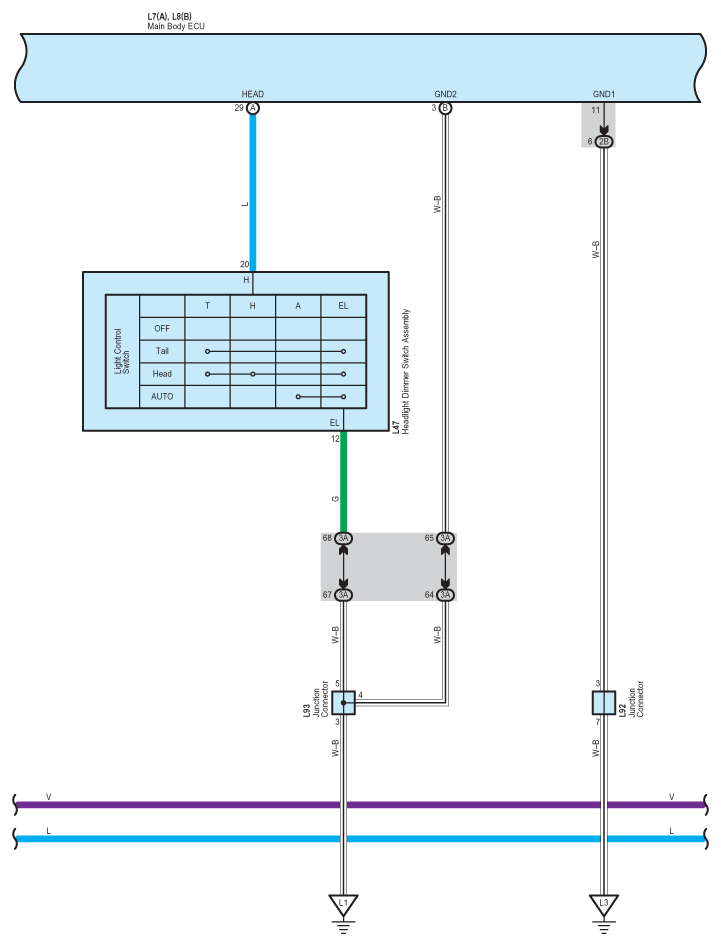

Fig 3: Headlight Bean Level Control - Circuit Diagram (3 Of 5)
G07570761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

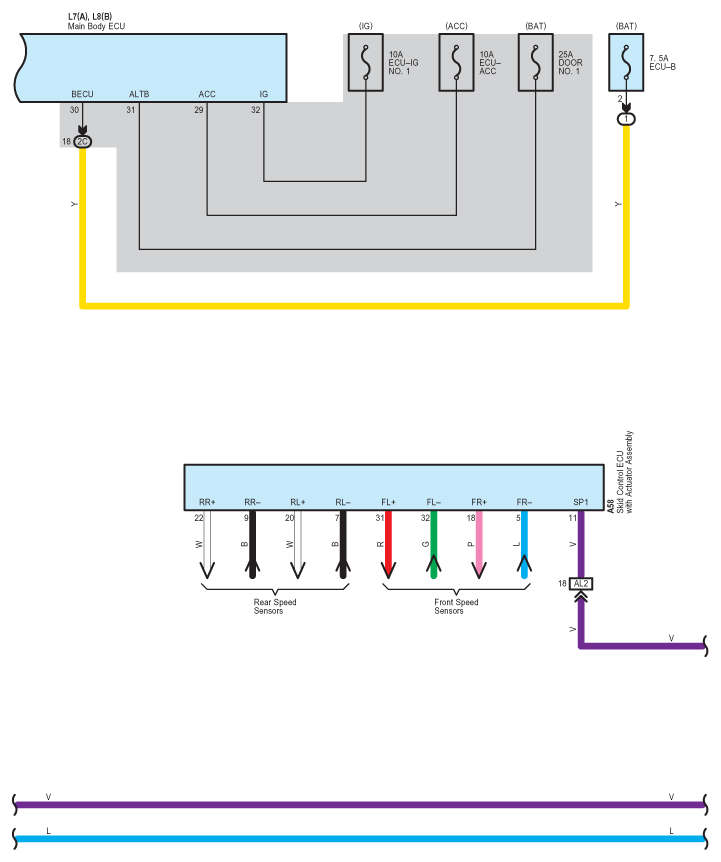

Fig 4: Headlight Bean Level Control - Circuit Diagram (4 Of 5)
G07570762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Headlight Bean Level Control - Circuit Diagram (5 Of 5)
G07570763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
