System Diagram

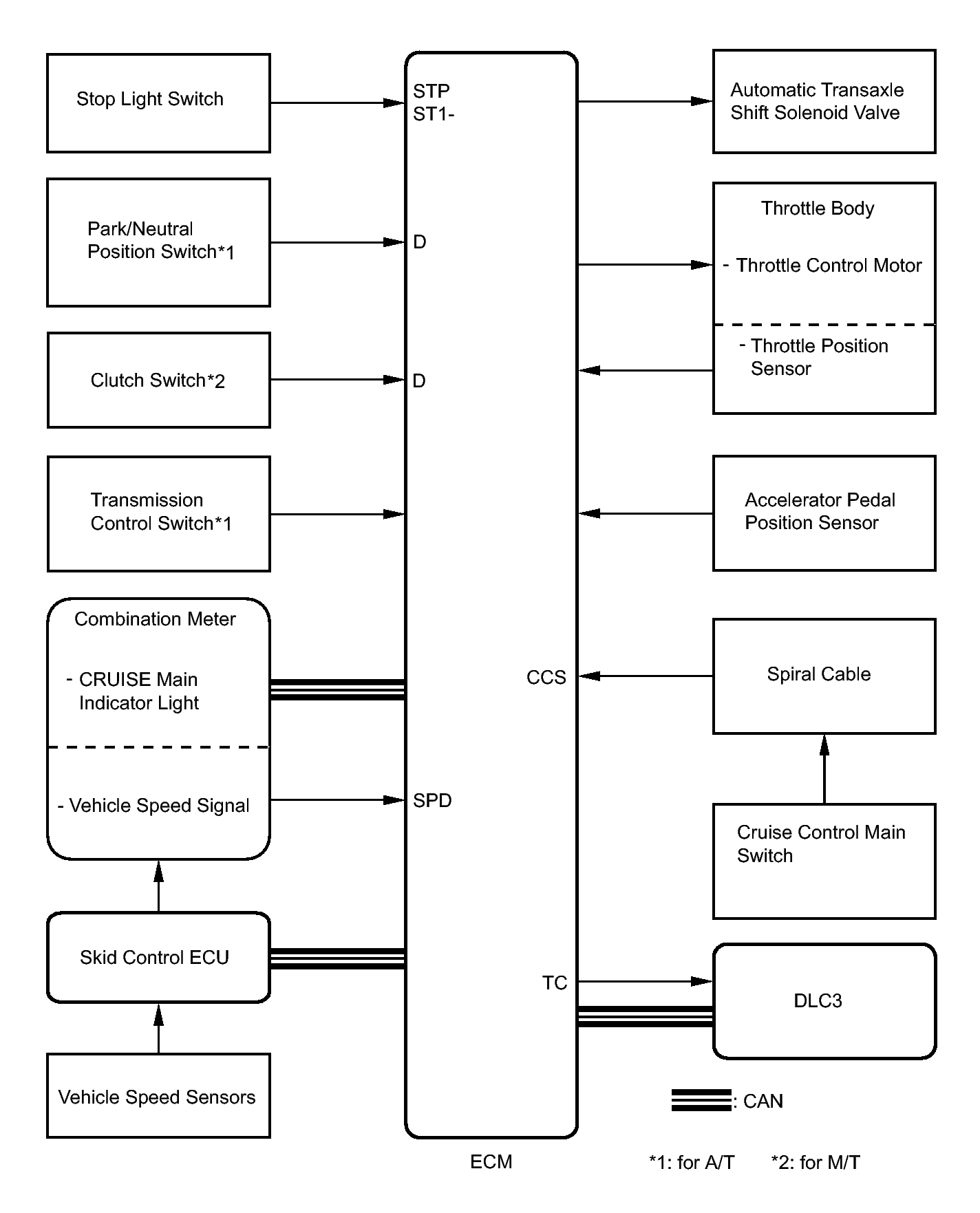

Fig 1: Cruise Control System Diagram
GTY167239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Combination Meter ECU CRUISE main indicator operation signal CAN
