Manual Air Conditioning (Except TMC Made): Notes

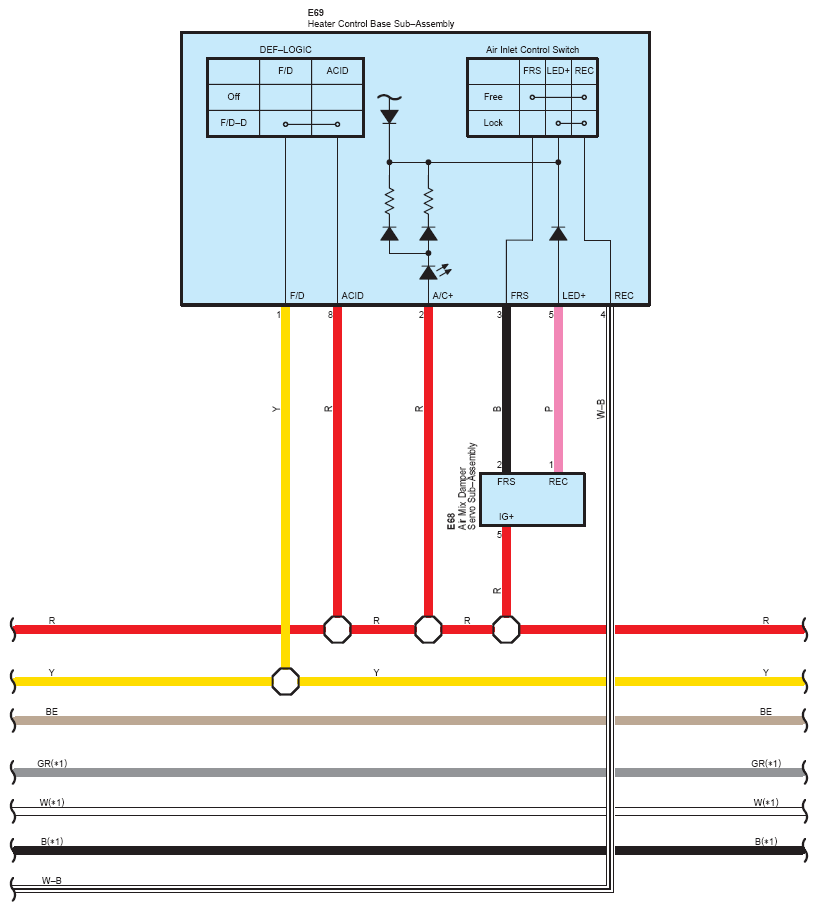

Fig 1: Manual Air Conditioning (Except TMC Made) - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

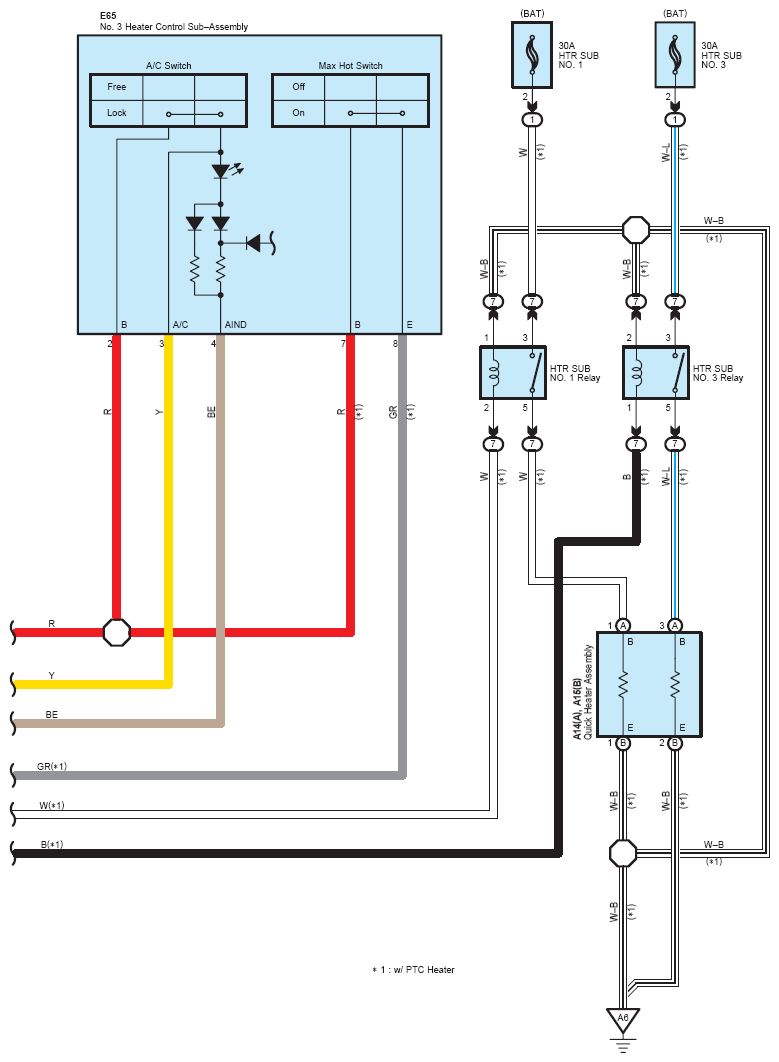

Fig 2: Manual Air Conditioning (Except TMC Made) - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

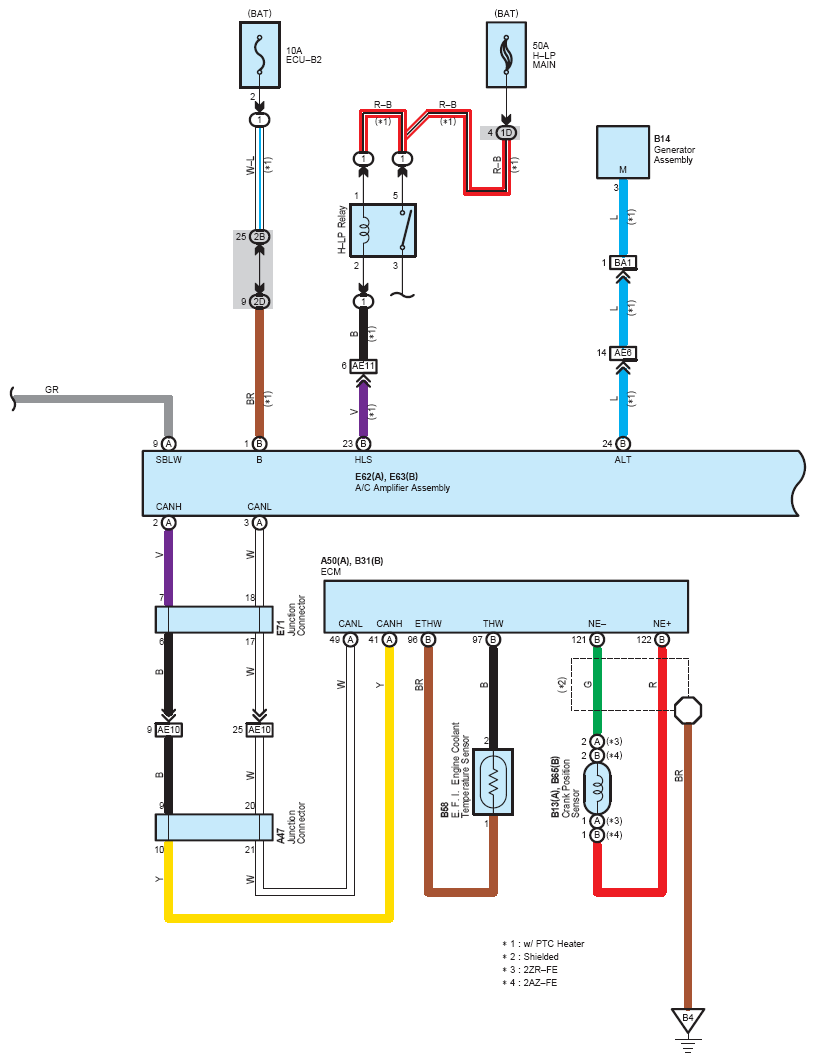

Fig 3: Manual Air Conditioning (Except TMC Made) - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

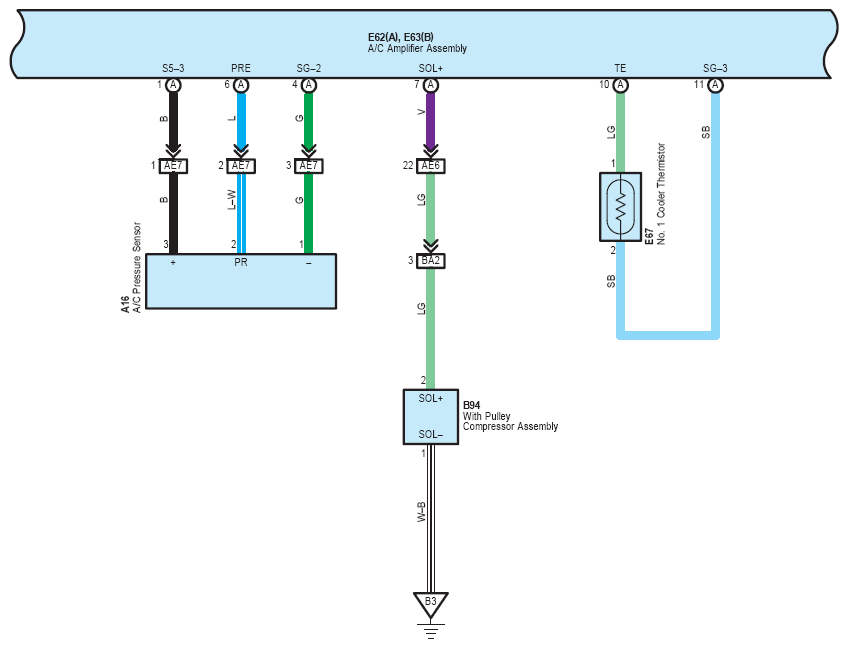

Fig 4: Manual Air Conditioning (Except TMC Made) - Circuit Diagram (4 Of 6)

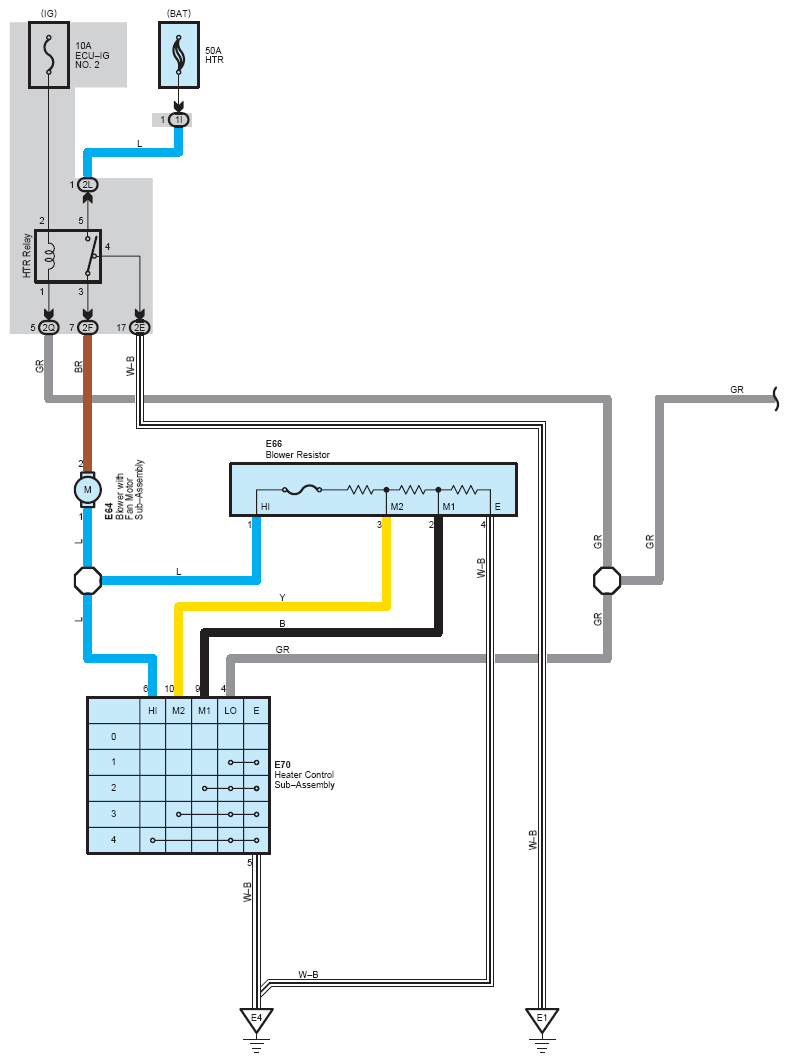

Fig 5: Manual Air Conditioning (Except TMC Made) - Circuit Diagram (5 Of 6)

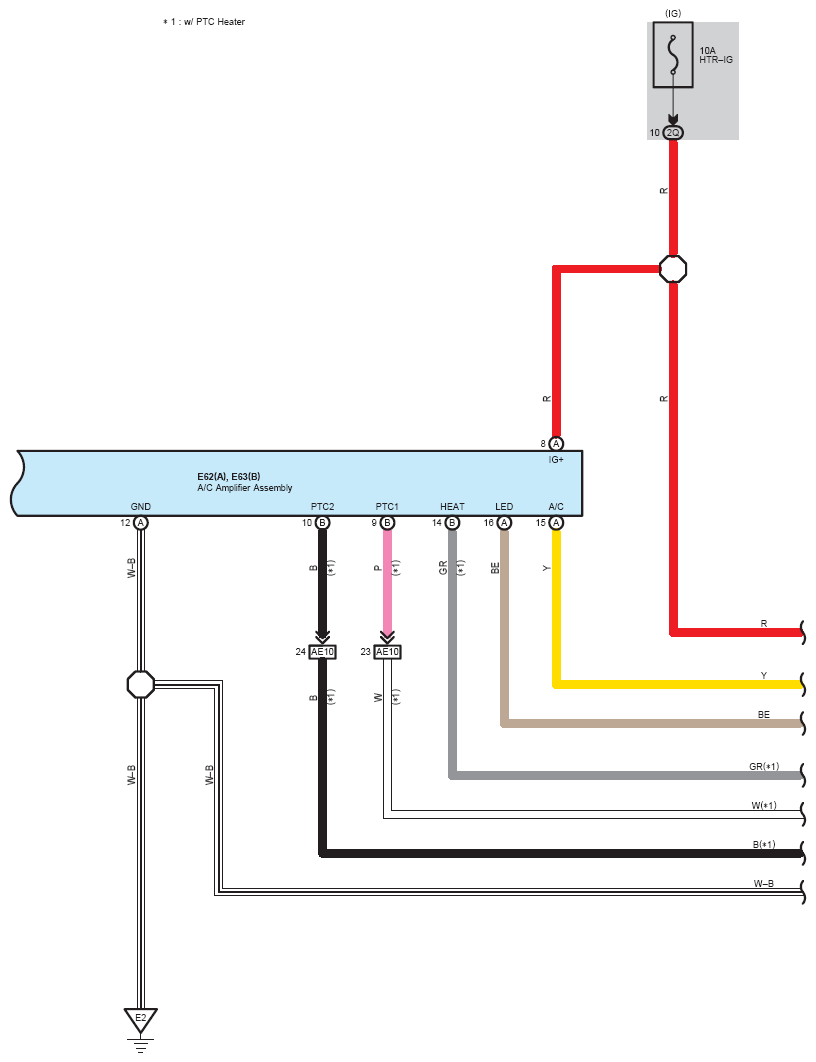

Fig 6: Manual Air Conditioning (Except TMC Made) - Circuit Diagram (6 Of 6)
