Corolla Base, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Light Reminder (Except TMC Made)
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Light Reminder (Except TMC Made): Notes

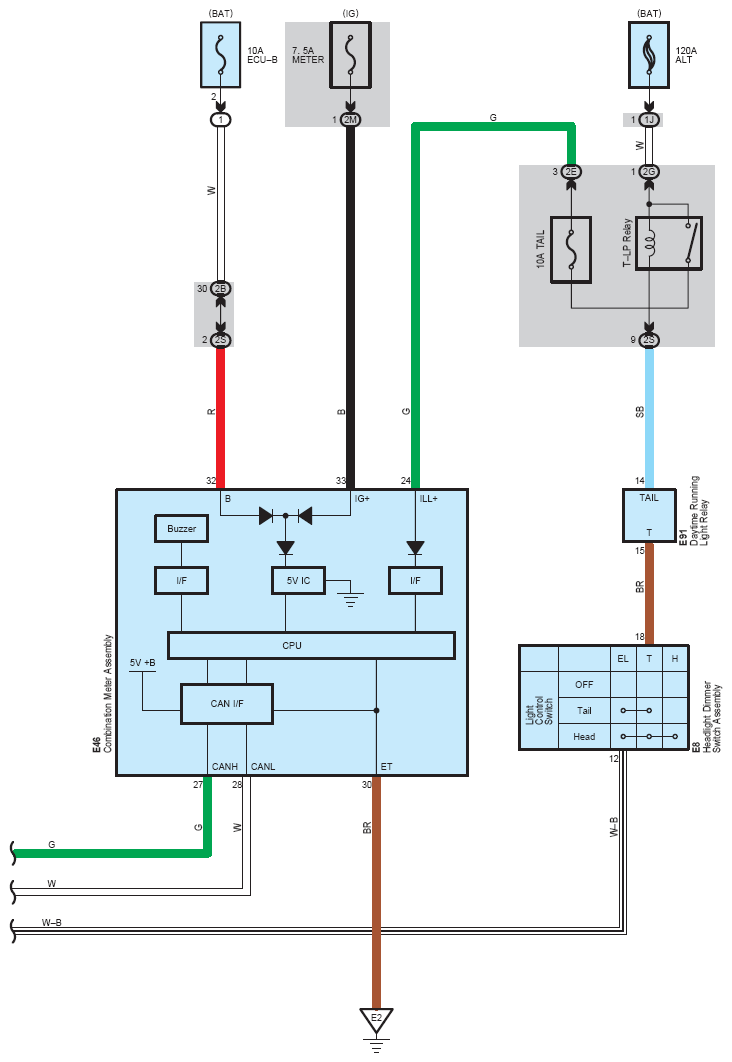

Fig 1: Light Reminder (Except TMC Made) - Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

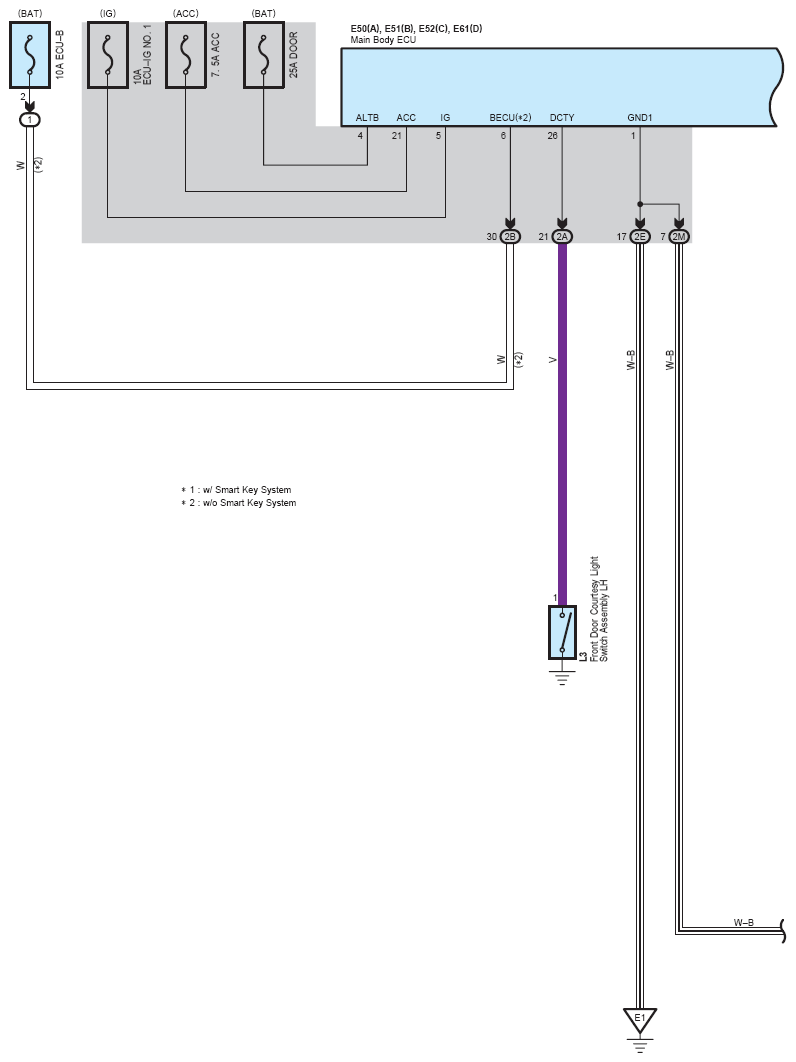

Fig 2: Light Reminder (Except TMC Made) - Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

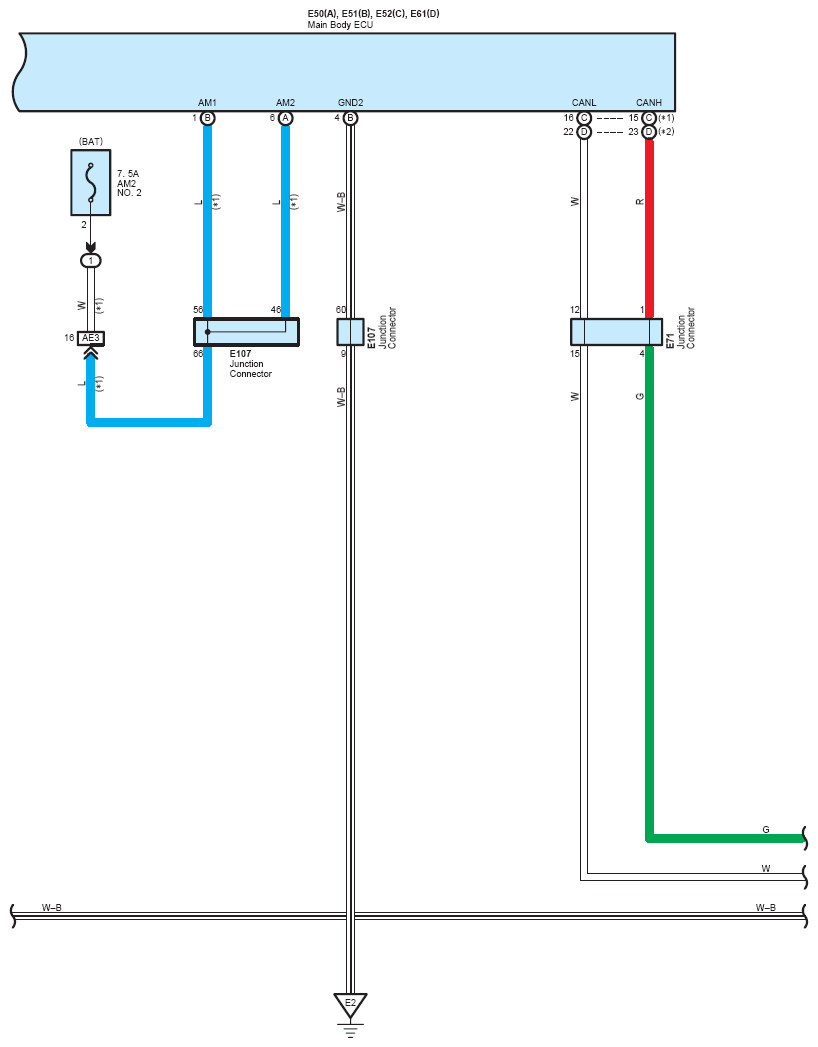

Fig 3: Light Reminder (Except TMC Made) - Circuit Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
