Steering Column Assembly: Reassembly: Reassembly

  1. INSTALL STEERING LOCK ACTUATOR ASSEMBLY
    1. Temporarily install the steering lock actuator assembly with a new tapered-head bolt.
    2. Tighten the tapered-head bolt until the bolt head breaks off.

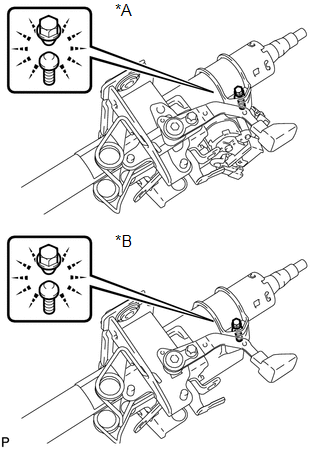

      Fig 1: Tightening Tapered-Head Bolt Until Bolt Head Breaks Off
      GTY229255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A w/o Smart Key System
      *B w/ Smart Key System
