Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

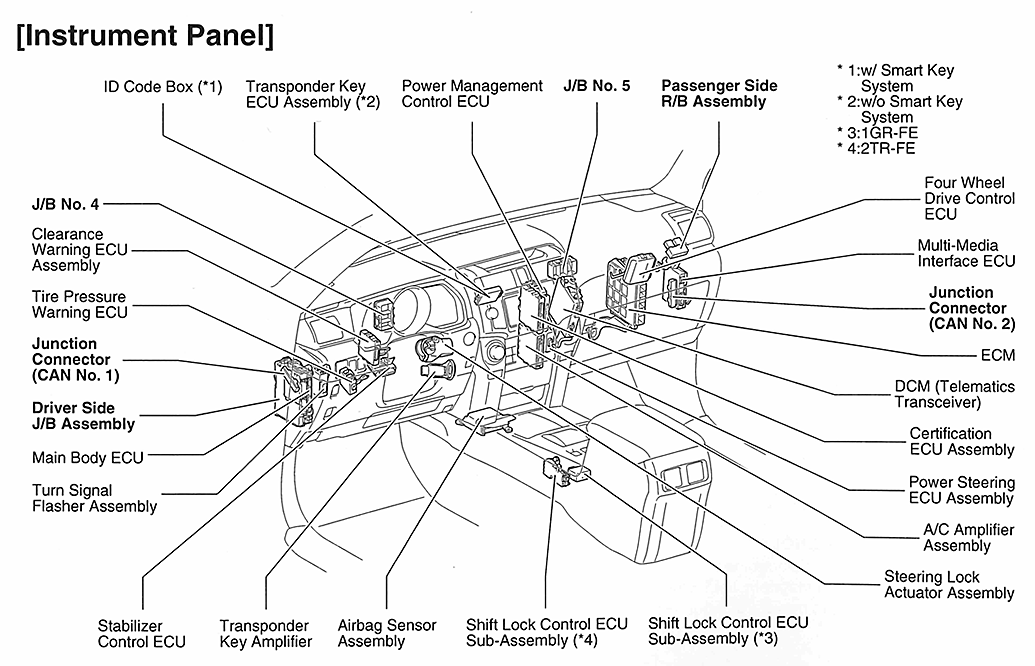

| Driver Side R/B Assembly | Left end of dash. See Figure. |

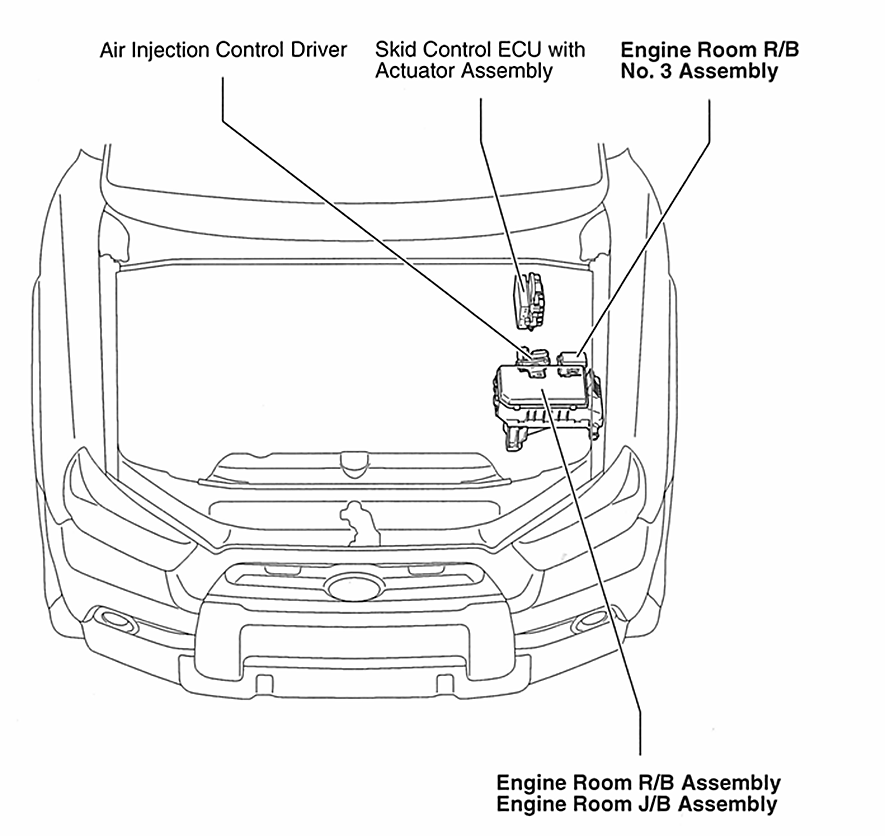

| Engine Room J/B Assembly | Left side of engine compartment. See Figure. |
| Engine Room R/B Assembly | Left side of engine compartment. See Figure. |
| Engine Room R/B No. 3 Assembly | Left side of engine compartment. See Figure. |
| J/B No. 4 | Left side of dash. See Figure. |
| J/B No. 5 | Center of dash. See Figure. |
| Passenger Side R/B Assembly | Right end of dash. See Figure. |
