Headlight Leveling Ecu: Installation
WARNING: This page is about a different car, the 2009 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

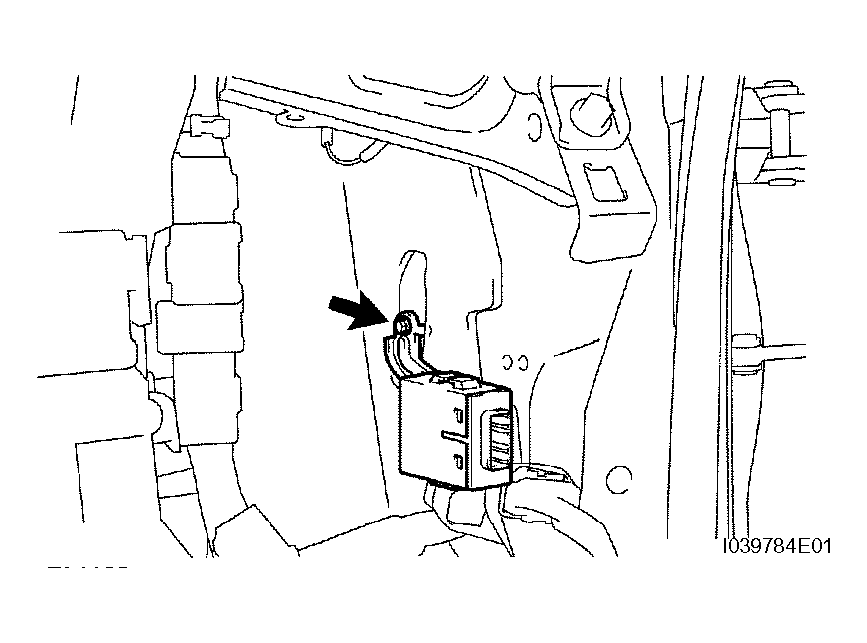

- INSTALL HEADLIGHT LEVELING ECU
- Install the ECU with the bolt.
- Connect the connector.
- INSTALL ECM (See INSTALLATION )
- INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (see INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (see INITIALIZATION
).NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
- Perform initialization (see INITIALIZATION
).
