Cigarette Lighter or Power Outlet: Notes

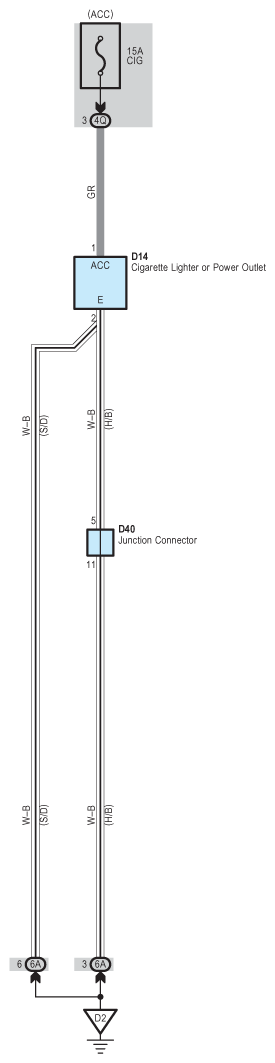

Fig 1: Cigarette Lighter/Power Outlet - Circuit Diagram
G07611379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
