Installation








POWER DISTRIBUTION: POWER MANAGEMENT CONTROL ECU: INSTALLATION

INSTALLATION

1. INSTALL POWER MANAGEMENT CONTROL ECU

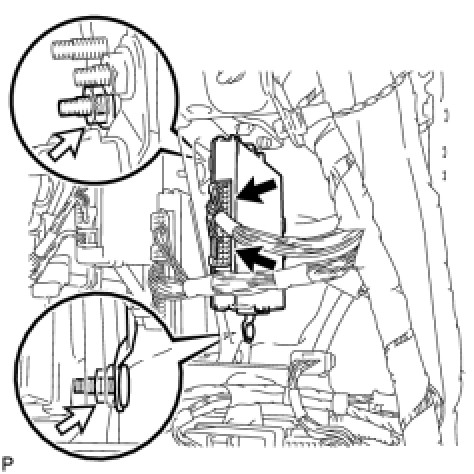

(a) Install the power management control ECU with the 2 nuts.
(b) Connect the 2 connectors.
2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation
3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation
5. INSTALL FRONT DOOR SCUFF PLATE RH Installation
