Intake Manifold

INTAKE MANIFOLD

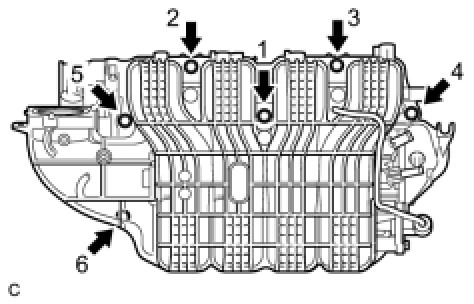

Install the intake manifold by tightening the 6 bolts in the sequence shown in the illustration.

Torque 21 Nm (214 kgf-cm, 15ft-lbf)

THROTTLE BODY ASSEMBLY

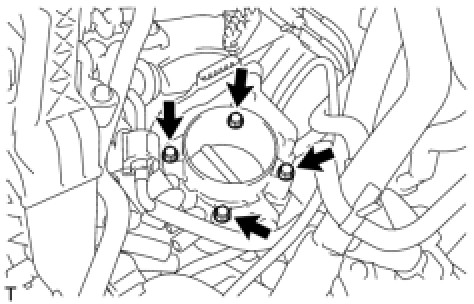

Install the throttle body assembly with the 4 bolts.

Torque 10 Nm (102 kgf-cm, 7ft-lbf)
